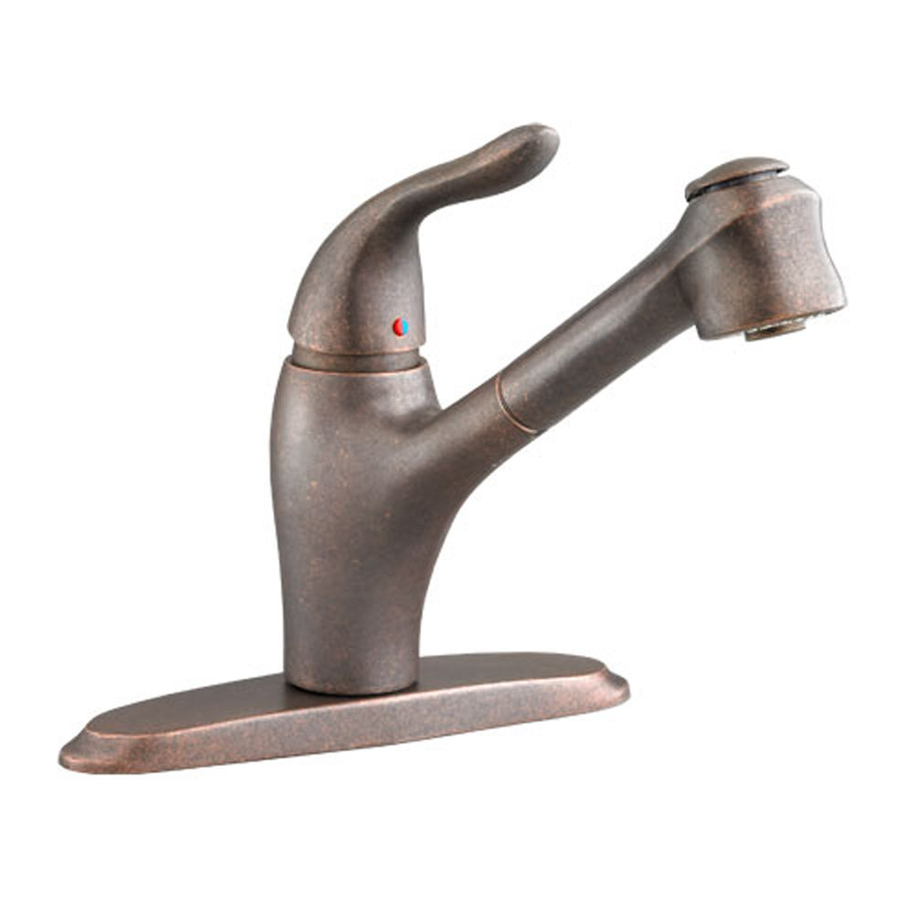

American Standard Lakeland 4114.100 Installation Instructions

LAKELAND
SINGLE CONTROL KITCHEN
PULL-OUT FAUCET with
Congratulations on purchasing your American Standard faucet with
EverClean finish found only on American Standard faucets.
EverClean Finish
• One wipe effortlessly removes spots
• Eliminates the need for cleaners and scrubbing
• Permanent surface protectant remains beautiful for the life of the faucet
• EverClean™ available on: Polished Chrome, Satin Nickel, Stainless Steel, Polished Brass (or any combination of these finishes)
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.

TOOLS REQUIRED

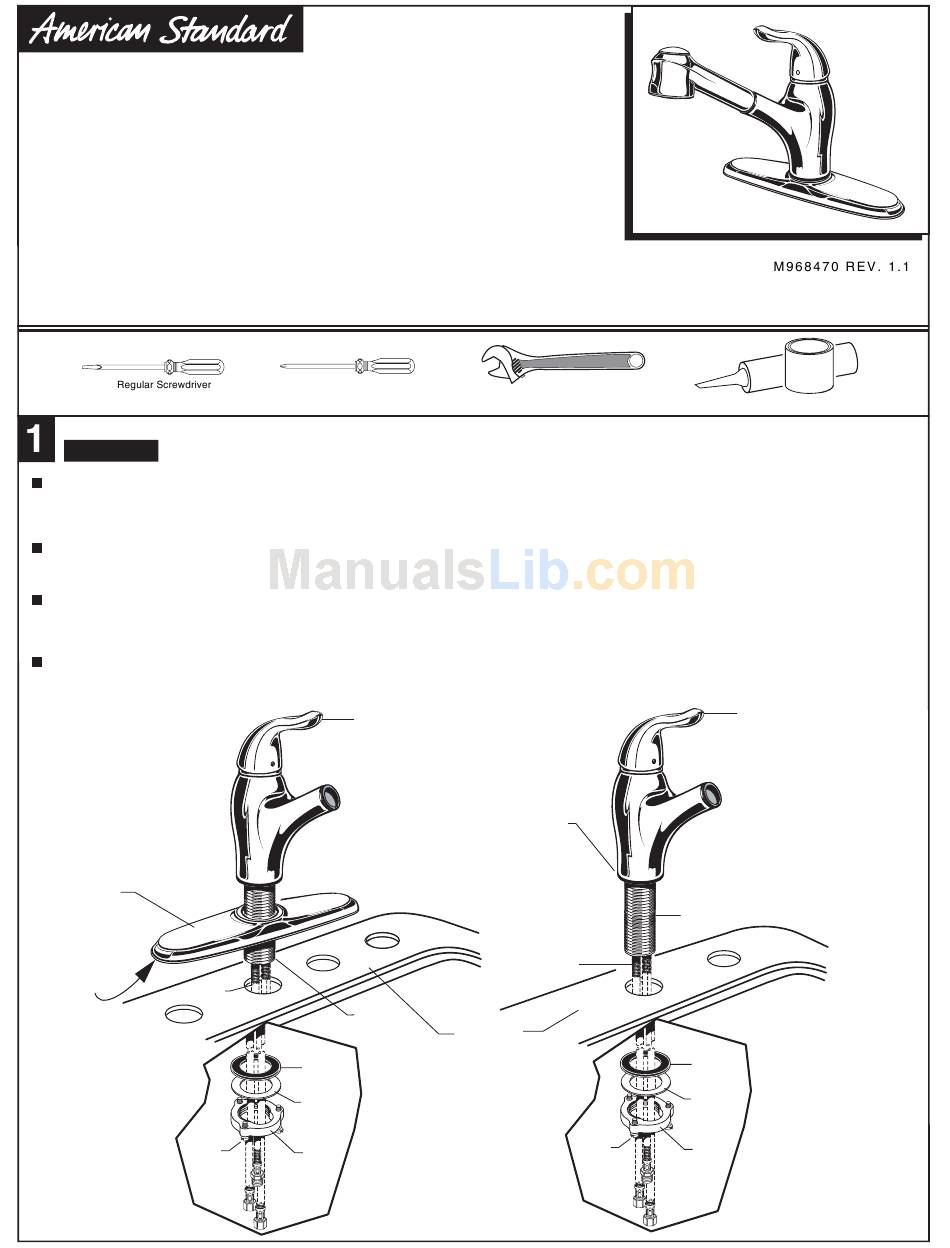

INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON

Turn off hot and cold water
CAUTION
supplies before beginning.
(A) Installation with ESCUTCHEON (1). Apply a bead of putty to bottom edge of ESCUTCHEON with PUTTY PLATE (1).
Insert supply HOSES (2) and SHANK (3) through hole of ESCUTCHEON with PUTTY PLATE (1) and mounting surface.
Follow mounting instructions below to secure faucet to mounting surface.
(B) Installation less ESCUTCHEON (1). Discard ESCUTCHEON with PUTTY PLATE (1).
SHANK (3) through mounting hole and
Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (6) and check that rotation of HANDLE (7) from HOT to COLD
is centered.
Use a screwdriver to tighten SCREWS (8) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening
the screws slightly each time until all are snug to ensure even pressure.
A
1
P U T T Y
2
8
Installation
Instructions
4114.100
EverClean™ Finish
Phillips Screwdriver
seat SPOUT BASE onto sink or mounting surface.
7
S P O U T B A S E
3
S I N K O R
M O U N T I N G
S U R FA C E
4
5
6
Certified to comply with ANSI A112.18.1M
Adjustable Wrench
Insert supply HOSES (2) and
Do not use putty.
B
3
2
5
8
Plumbers' Putty or Caulking
7
4
6
