American Standard COLONY SOFT 4175.300 Series Installation Instructions

COLONY SOFT
SINGLE CONTROL
KITCHEN PULL-DOWN FAUCET
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
RECOMMENDED TOOLS
Regular Screwdriver
1

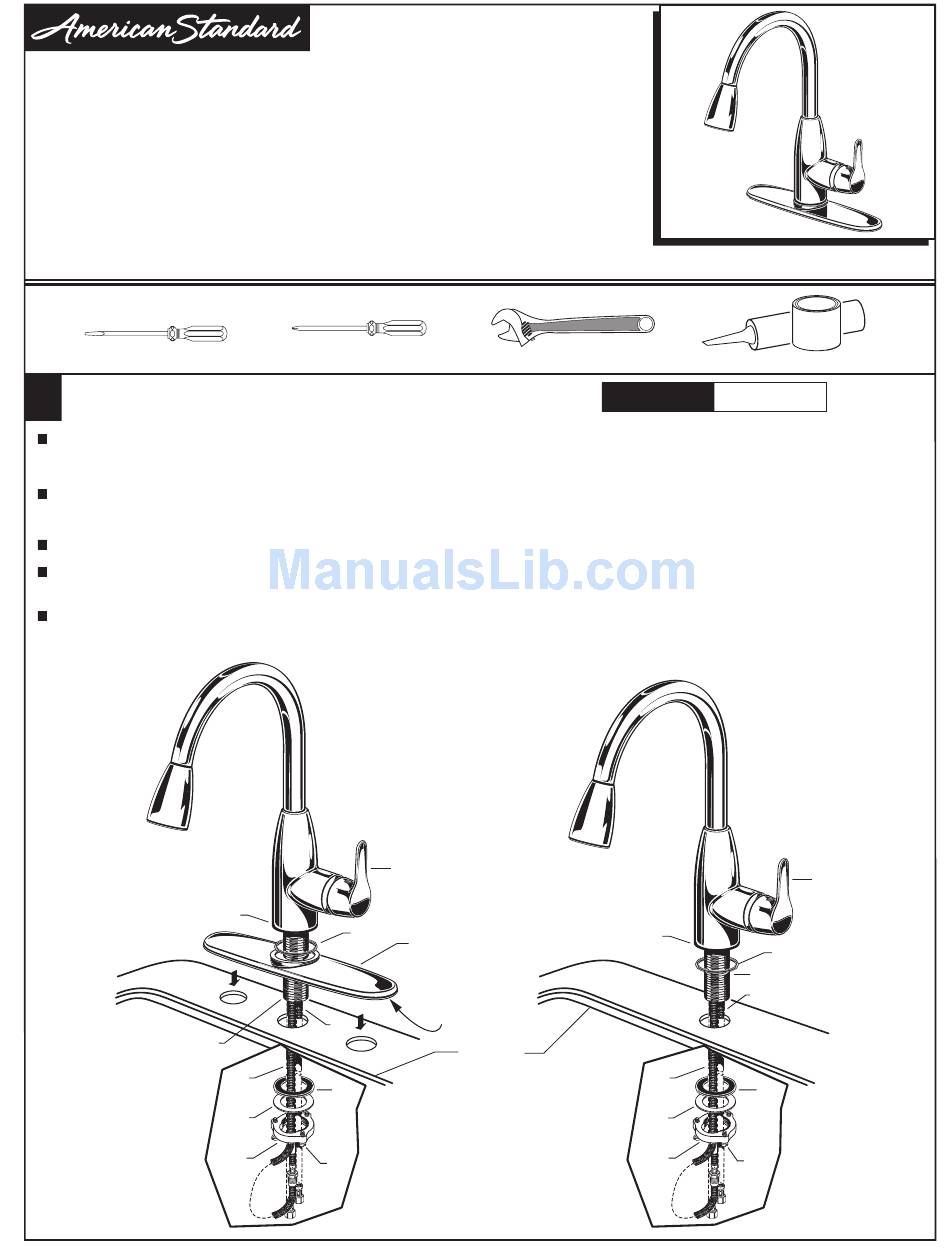

INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON
(A) Installation with ESCUTCHEON (1). Apply a bead of putty to bottom edge of ESCUTCHEON with PUTTY PLATE (1).
Insert SUPPLY HOSES (2), SPRAY HOSE (9) and SHANK (3) through hole of ESCUTCHEON with PUTTY PLATE (1) and
mounting surface. Follow mounting instructions below to secure faucet to mounting surface.
(B) Installation less ESCUTCHEON (1). Discard ESCUTCHEON with PUTTY PLATE (1).
HOSE (9) and SHANK (3) through mounting hole and
Insert HOSES (2) through RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6).
Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (6).
Use a screwdriver to tighten SCREWS (8) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening
the screws slightly each time until all are snug to ensure even pressure.
A
S P O U T B A S E
3
4175.300 Series
Phillips Screwdriver
7
S E A L
2
9
4
5
6
8
Installation
Instructions
Adjustable Wrench
seat SPOUT BASE onto sink or mounting surface.
B
S P O U T B A S E
1
P U T T Y
S I N K O R
M O U N T I N G
S U R FA C E
Certified to comply with ANSI A112.18.1M
M 9 6 5 0 3 6 R ev. 1. 6
Plumbers' Putty or Caulking
Turn off water at
CAUTION
main supply.
Insert supply HOSES (2), SPRAY
Do not use putty.
S E A L
3
2
9
4
5
6
8
7
