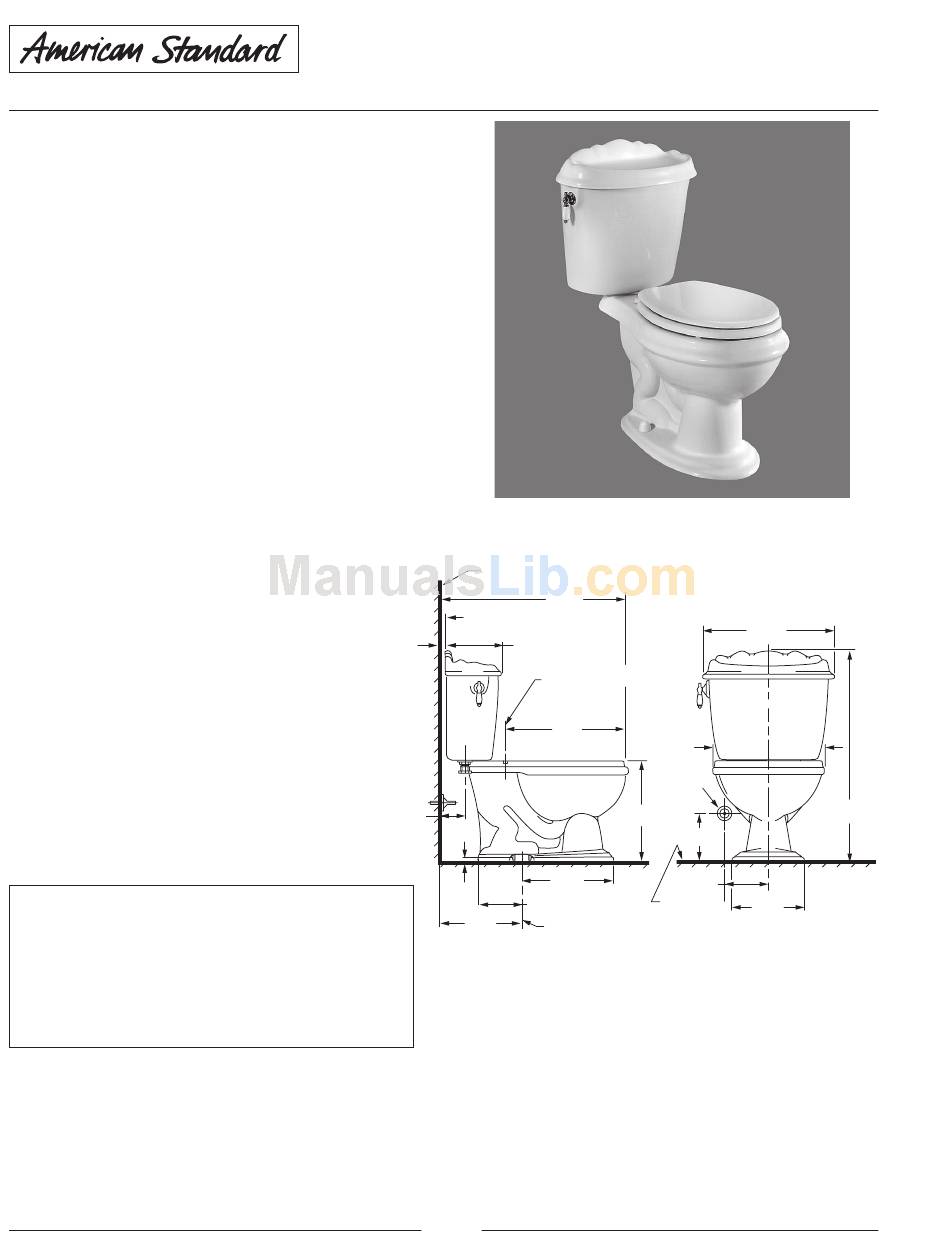

REMINISCENCE™ ROUND FRONT TOILET
❑
2311.016
• Vitreous china
• Low-consumption (6.0 Lpf/1.6 gpf)
• Round front siphon action jetted bowl with
2" trapway
• Bowl rim height at 381mm (15")
• AquaForce fl ushing technology
• Vintage detailing on bowl and tank–design
matched to pedestal and countertop lavatories
• Side-mounted antique styled chrome trip lever
with ceramic handle insert
• 2 bolt caps
• Internal trapway area fully glazed
• 100% factory fl ush tested
❑
3111.016 Bowl
❑
4111.016 Tank
Nominal Dimensions:
718 x 508 x 826mm
(28-1/4" x 20" x 32-1/2")
Fixture only, seat and supply by others
Compliance Certifi cations -
Meets or Exceeds the Following Specifi cations:
• ASME A112.19.2M for Vitreous China Fixtures -
includes Flush Performance, Ball Pass Diameter,
Trap Seal Depth and all Dimensions
To Be Specifi ed:
❏ Color:
❏ Seat: American Standard #5322.011 "Rise and
Shine" solid plastic closed front seat with cover.
❏ Alternate Seat: American Standard #5308.014
"Laurel" molded closed front seat with cover.
❏ Supply with stop:
© 2006 American Standard Inc.
ROUND FRONT TOILET
Shown with
FINISHED WALL
718mm
(28-1/4)
25mm ± 6mm
(1 ± 1/4)
229mm
(9)
C/L OF SEAT POST HOLES
(140mm CENTERS)
(5-1/2)
425mm
(16-3/4)
76mm
(3)
343mm
(13-1/2)
13mm
(1/2)
159mm
(6-1/4)
305mm
C/L OF OUTLET
(12)
NOTES:
THIS COMBINATION IS DESIGNED TO ROUGH-IN AT A MINIMUM DIMENSION
OF 305MM (12") FROM FINISHED WALL TO C/L OF OUTLET.
DIMENSIONS SHOWN FOR LOCATION OF SUPPLY ARE SUGGESTED.
*
SUPPLY NOT INCLUDED WITH FIXTURE AND MUST BE ORDERED
SEPARATELY.
IMPORTANT: Dimensions of fi xtures are nominal and may vary within the range
of tolerance established by ANSI Standard A112.19.2.
These measurements are subject to change or cancellation. No responsibility is
assumed for use of superseded or voided pages.
K34
REMINISCENCE™
VITREOUS CHINA
5308.014
"Laurel" seat
508mm
(20)
C/L
406mm
(16)
SUPPLY AS
REQUIRED
381mm
(15)
*
222mm
(8-3/4)
*
140mm
(5-1/2)
FINISHED
279mm
FLOOR
(11)
Revised 5/05
826mm
(32-1/2)
