Culinaire
SINGLE CONTROL KITCHEN
FAUCET AND PULL OUT SPRAY
with
EverClean™ Finish
Congratulations on purchasing your American Standard faucet with
EverClean finish found only on American Standard faucets.
EverClean Finish
• One wipe effortlessly removes spots
• Eliminates the need for cleaners and scrubbing
• Permanent surface protectant remains beautiful for the life of the faucet
• EverClean™ available on: Polished Chrome, Satin Nickel, Stainless Steel, Polished Brass (or any combination of these finishes)
To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin.
TOOLS REQUIRED
Phillips Screwdriver
INSTALL FITTING WITH OR WITHOUT DECK ESCUTCHEON
Turn off hot and cold water
CAUTION
supplies before beginning.

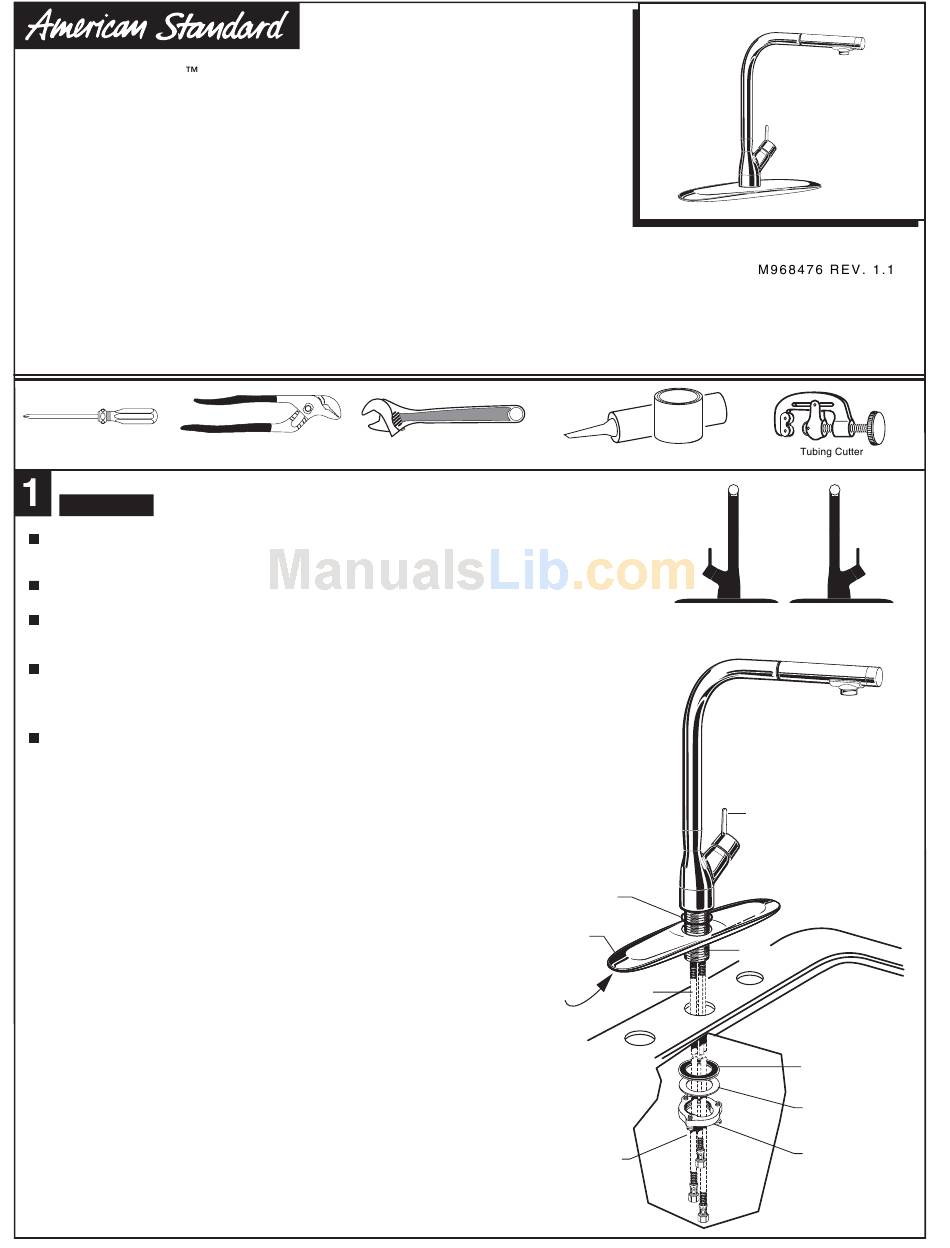

Apply a bead of putty to bottom edge of ESCUTCHEON (1). Note: Installation of
ESCUTCHEON (1) is optional.
Make certain the large SEAL (2) is properly seated in recess of faucet body.
Insert supply HOSES (3) and SHANK (4) through center hole of ESCUTCHEON (1)
(if used) sink or mounting surface.
Assemble RUBBER WASHER (5), BRASS WASHER (6), and threaded LOCKNUT (7)
onto SHANK (4) from underside of sink. Hand tighten LOCKNUT (7) and check that
faucet is centered.
NOTE: FAUCET CAN BE INSTALLED FOR RIGHT OR LEFT HAND APPLICATIONS.
Use a screwdriver to tighten the SCREWS (9) on LOCKNUT (7). Work your way
around LOCKNUT (7), tightening the screws slightly each time until all are snug to
ensure even pressure.
Channel Locks
Installation
Instructions
4147.100
Adjustable Wrench
1
P U T T Y
Certified to comply with ANSI A112.18.1M
Plumbers' Putty or Caulking
LH
8
2
4
3
9
RH
5
6
7
