LAKELAND
SINGLE CONTROL KITCHEN
PULL-OUT FAUCET
Thank you for selecting American-Standard...
the benchmark of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--
please read these instructions carefully before you begin.
TOOLS REQUIRED
Regular Screwdriver
1

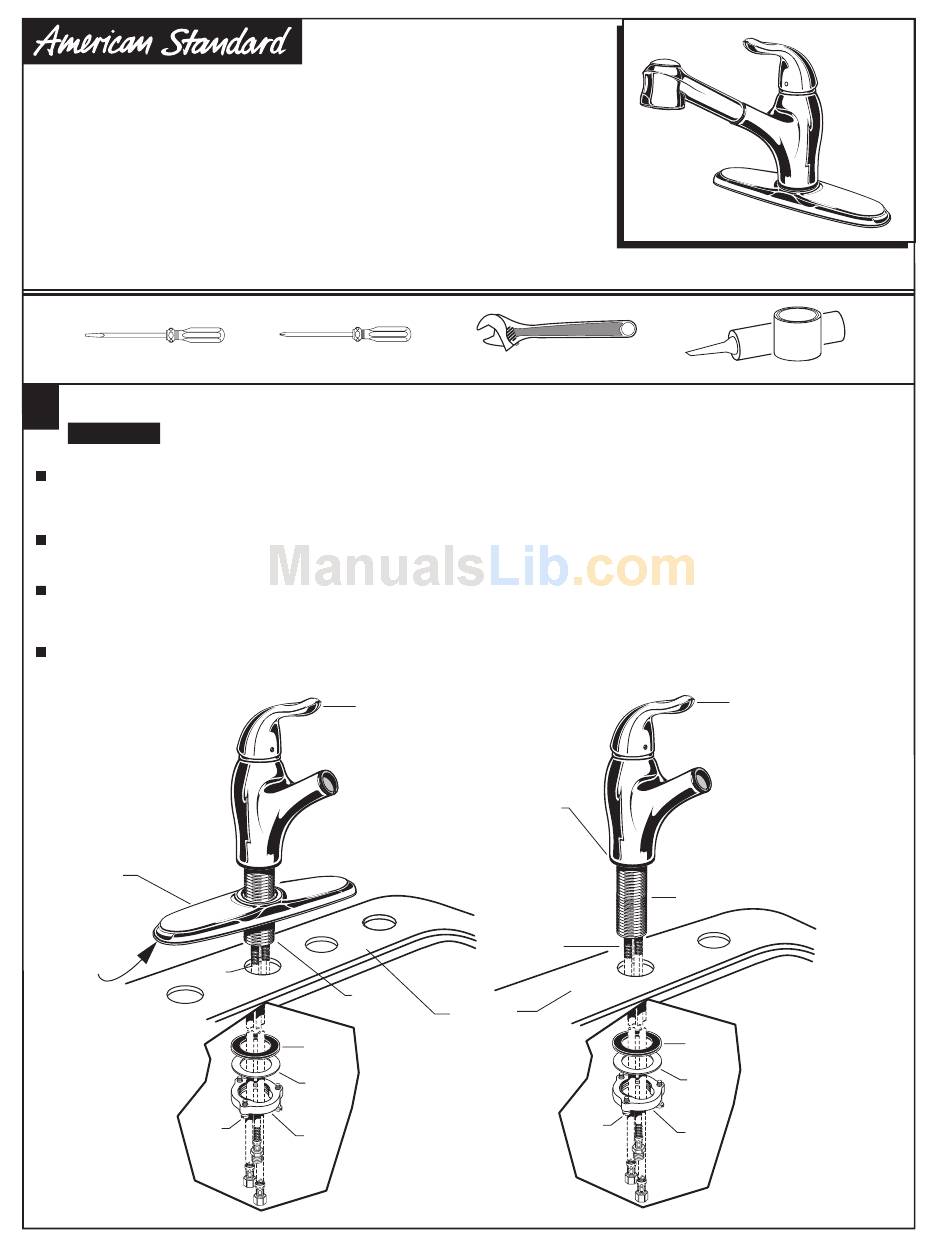

INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON
Turn off hot and cold water
CAUTION
supplies before beginning.
(A) Installation with ESCUTCHEON (1). Apply a bead of putty to bottom edge of ESCUTCHEON with PUTTY PLATE (1).
Insert supply HOSES (2) and SHANK (3) through hole of ESCUTCHEON with PUTTY PLATE (1) and mounting surface.
Follow mounting instructions below to secure faucet to mounting surface.
(B)
Installation less ESCUTCHEON (1). Discard ESCUTCHEON with PUTTY PLATE (1).
SHANK (3) through mounting hole and
Assemble RUBBER WASHER (4), BRASS WASHER (5), and threaded LOCKNUT (6) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (6) and check that rotation of HANDLE (7) from HOT to COLD
is centered.
Use a screwdriver to tighten SCREWS (8) on LOCKNUT (6). Work your way around LOCKNUT (6), tightening
the screws slightly each time until all are snug to ensure even pressure.
A
1
P U T T Y
2
8
Installation
Instructions
4114.100
Phillips Screwdriver
seat SPOUT BASE onto sink or mounting surface.
7
S P O U T B A S E
3
S I N K O R
M O U N T I N G
S U R FA C E
4
5
6
Certified to comply with ANSI A112.18.1M
Adjustable Wrench
Insert supply HOSES (2) and
Do not use putty.
B
3
2
4
5
8
6
M 9 6 8 4 7 0 R E V. 1. 5
Plumbers' Putty or Caulking
7
Advertisement
Related Manuals for American Standard LAKELAND 4114.1
Summary of Contents for American Standard LAKELAND 4114.1
- Page 1 LAKELAND SINGLE CONTROL KITCHEN PULL-OUT FAUCET Thank you for selecting American-Standard... the benchmark of fine quality for over 100 years. To ensure that your installation proceeds smoothly-- please read these instructions carefully before you begin. TOOLS REQUIRED Regular Screwdriver INSTALL FAUCET WITH OR WITHOUT DECK ESCUTCHEON Turn off hot and cold water CAUTION supplies before beginning.
- Page 2 MAKE WATER SUPPLY CONNECTIONS Turn off hot and cold water supplies before beginning. Connect FLEXIBLE SUPPLIES (1, 2) directly to wall supplies. Connection on fitting supplies are 3/8" compression. Connect left supply to Hot (Marked with a Red Line) and right supply to Cold wall supply. Use adjustable wrench to tighten connections.
- Page 3 CHECK CONNECTIONS FOR LEAKS. Move HANDLE down into "off" position. Turn on water supplies and check connections for leaks Operate HANDLE (2) up and down, left and right to flush water lines thoroughly. Operate HAND SPRAY and check connections for leaks. SERVICE If faucet drips, operate HANDLE several times from "off"...
