VTD-C410
High Resolution Color
Indoor Dome Camera

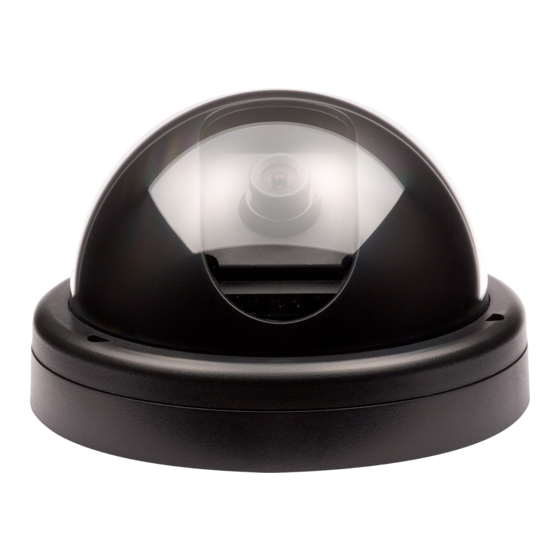

The VTD-C410 high resolution color dome camera is a
small, attractive camera ideal for use in commercial or
residential applications. It measures less than 5" in
diameter and comes in dual voltage 24 Volt AC/12 Volt
DC power input for easy integration with standard
cameras and power systems.
BLACK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTD-C410 and is the answer not in the manual?

Questions and answers

Related Manuals for Vitek VTD-C410

Summary of Contents for Vitek VTD-C410

  • Page 1 VTD-C410 High Resolution Color Indoor Dome Camera The VTD-C410 high resolution color dome camera is a small, attractive camera ideal for use in commercial or residential applications. It measures less than 5” in diameter and comes in dual voltage 24 Volt AC/12 Volt DC power input for easy integration with standard cameras and power systems.

  • Page 2: Wiring Connections

    WIRING CONNECTIONS The VTD-C410 Dome Camera should be powered by 12 Volts DC or 24 Volts AC. You should make sure that the power supply you are using is CSA Certified Class 2 Power Supply delivering a minimum of 2.5 Watts.

  • Page 3: Camera Setup

    CAMERA SETUP Your VTD-C410 Dome Camera has been set at average default settings from the factory so the performance should be excellent right from the start. However, certain challenging environments may require additional set-up procedures to enhance the image. DIP SWITCH SETTINGS There are four dip switches on the rear board of the camera.

  • Page 4: Focus Adjustment

    FOCUS ADJUSTMENT The focus may be adjusted by simply screwing or unscrewing the lens. Be sure to loosen the set screw before attempting to adjust the focus or damage may occur. Be careful not to over tighten the lens or you may damage the pick-up sensor.

  • Page 5: Routine Maintenance

    ROUTINE MAINTENANCE Use mild liquid cleaners to remove dirt and grime from the dome surface. Do not use harsh or abrasive cleaners which can scratch the polycarbonate dome and reduce visibility for the camera. If the camera view is obstructed by scratches, remove the front plate (bezel) and rotate the bubble to a portion that is not scratched.
  • Page 6 NOTES...

  • Page 7: Dome Specifications

    DOME SPECIFICATIONS Image Device 1/3” Color CCD Image Sensor Effective Pixels 768 x 494 Resolution 480 TV Lines Minimum Illumination 0.7 Lux at f1.2 (AGC On) S/N Ratio More Than 48dB (AGC Off) Electronic Shutter 1/60 ~ 1/100,000 Sec. White Balance Auto White Balance (AWB) Standard Lens 3.6mm Included (2.9 / 6.0 / 8.0 / 16mm Optional)
  • Page 8 The product must not have been tampered with in any way then the guarantee will be considered null and void. This guarantee does not affect your statutory rights. Contact VITEK or your local distributor if servicing should become necessary. 28492 CONSTELLATION ROAD VALENCIA, CA 91355...
