Vitek VTD-C410 User Manual

High resolution color indoor dome camera
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual

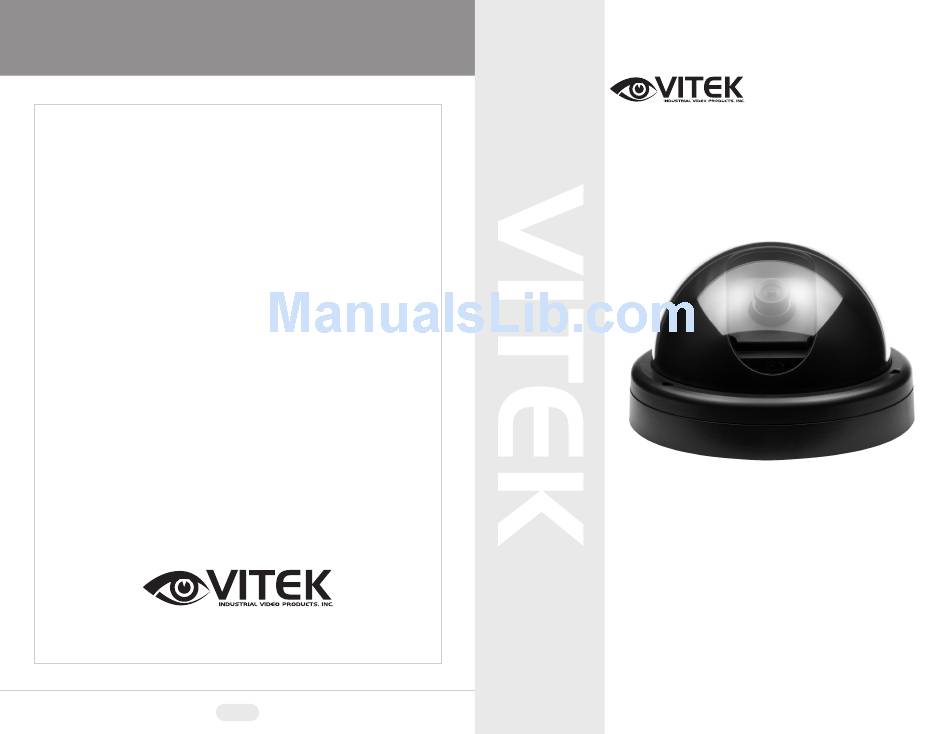

LIMITED LIABILITY WARRANTY
Your new Camera is guaranteed to be free from defects in materials
and workmanship for a period of two years from the date of
purchase.
The product must have been used only for its intended purpose, and
not been subjected to damage by misuse, willful or accidental
damage, caused by excessive voltage or lightning.
The product must not have been tampered with in any way then the
guarantee will be considered null and void.
This guarantee does not affect your statutory rights.
Contact VITEK or your local distributor if servicing should become
necessary.
28492 CONSTELLATION ROAD VALENCIA, CA 91355
WWW.VITEKCCTV.COM | 888-VITEK-70
8
VTD-C410
High Resolution Color
Indoor Dome Camera

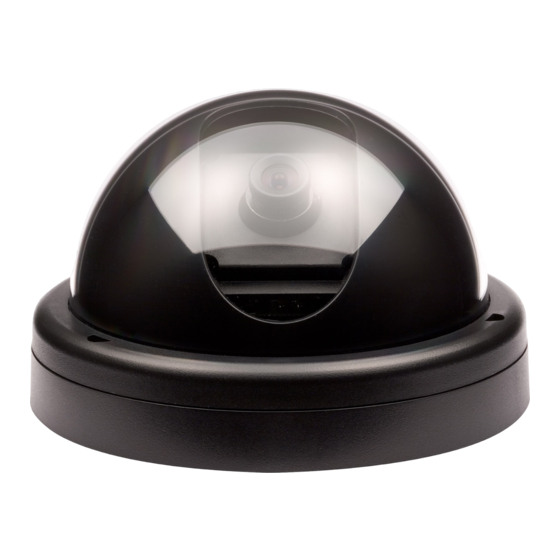

The VTD-C410 high resolution color dome camera is a
small, attractive camera ideal for use in commercial or
residential applications. It measures less than 5" in
diameter and comes in dual voltage 24 Volt AC/12 Volt
DC power input for easy integration with standard
cameras and power systems.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VTD-C410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek VTD-C410

Summary of Contents for Vitek VTD-C410

  • Page 1 The product must not have been tampered with in any way then the guarantee will be considered null and void. This guarantee does not affect your statutory rights. Contact VITEK or your local distributor if servicing should become necessary. 28492 CONSTELLATION ROAD VALENCIA, CA 91355 WWW.VITEKCCTV.COM | 888-VITEK-70...

  • Page 2: Dip Switch Settings

    NOTES Your VTD-C410 Dome Camera has been set at average default settings from the factory so the performance should be excellent right from the start. However, certain challenging environments may require additional set-up procedures to enhance the image. DIP SWITCH SETTINGS There are four dip switches on the rear board of the camera.

  • Page 3: Dome Specifications

    WIRING CONNECTIONS The VTD-C410 Dome Camera should be powered by 12 Volts DC or 24 Volts AC. You should make sure that the power supply you are using is CSA Certified Class 2 Power Supply delivering a minimum of 2.5 Watts.

  • Page 4: Focus Adjustment

    FOCUS ADJUSTMENT The focus may be adjusted by simply screwing or unscrewing the lens. Be sure to loosen the set screw before attempting to adjust the focus or damage may occur. Be careful not to over tighten the lens or you may damage the pick-up sensor.
