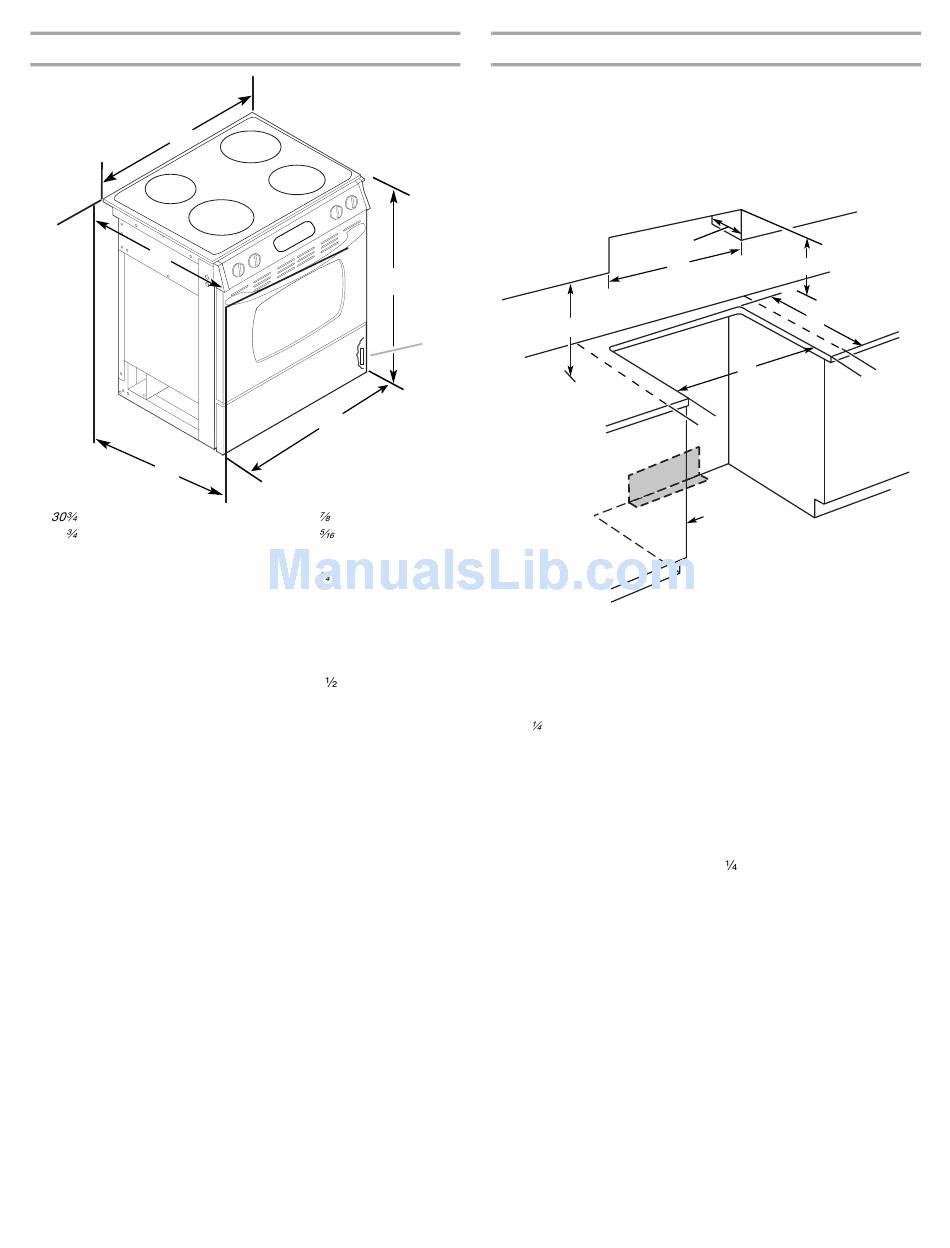

Product Dimensions
A
F
E**
A. " (78.1 cm)
B. 35 " (90.8 cm) height to underside
of cooktop edge with leveling legs
screwed all the way in*
C. Model/serial number plate (located
behind the storage or warming
drawer on the side of the oven frame
*Range can be raised approximately 1" (2.5 cm) by adjusting
the leveling legs.
**When installed in a 24" (61 cm) base cabinet with 25" (63.5 cm)
countertop; front of oven door protrudes 2 " (6.4 cm) beyond
24" (61.0 cm) base cabinet.
4
B*
C
D
D. 29 " (75.9 cm)
E. 28 " (71.9 cm) from
handle to standoff at back
of range**
F. 23 " (60.3 cm)
countertop notch to rear
of cooktop
Cabinet Dimensions
Cabinet opening dimensions shown are for 25" (64.0 cm)
countertop depth, 24" (61.0 cm) base cabinet depth and
36" (91.4 cm) countertop height.
IMPORTANT: If installing a range hood or microwave hood
combination above the range, follow the range hood or
microwave hood combination installation instructions for
dimensional clearances above the cooktop surface.
H
F
A. 13" (33.0 cm) upper cabinet
depth
B. 30" (76.2 cm) min. opening
width
C. For minimum clearance to the
top of the cooktop,
see NOTE.
D. 23 " (59.1 cm) opening
depth
E. 30" (76.2 cm) min. opening
width
NOTE: 24" (61.0 cm) minimum when bottom of wood or metal
cabinet is covered by not less than
millboard covered with not less than No. 28 MSG sheet steel,
0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or
0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking
platform and the bottom of an uncovered wood or metal cabinet.
A
B
C
D
E
I
G
F. Junction box - 5.5" (14.0 cm)
min. from either cabinet,
10" (25.4 cm) max. from floor.
Outlet must be flush.
Nothing located in shaded
area can extend more than
2" (5.1 cm) from wall, or range
will not slide all the way back.
G. Cabinet door or hinge should
not extend into cutout.
H. 18" (45.7 cm)
I. 3" (7.6 cm) min. clearance from
both sides of the range to the
side wall or other combustible
material.
" (0.64 cm) flame retardant
