Whirlpool SF216LXS Parts Manual
30" gas freestanding standard clean range electronic ignition
Hide thumbs
Also See for SF216LXS:
- Installation instructions manual (28 pages) ,
- Dimensions (2 pages) ,
- Use & care manual (32 pages)
Advertisement
Quick Links
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10110358 Instruct, Install
W10138585 Installation Instr
(Template)
W10142330 Guide, Use & Care
98007130 Safer Cooking Tips
W10142328 Tech Sheet
2
Cooktop
W10110387 White
W10110093 Metalic
9−07 Litho in U.S.A. (jac)

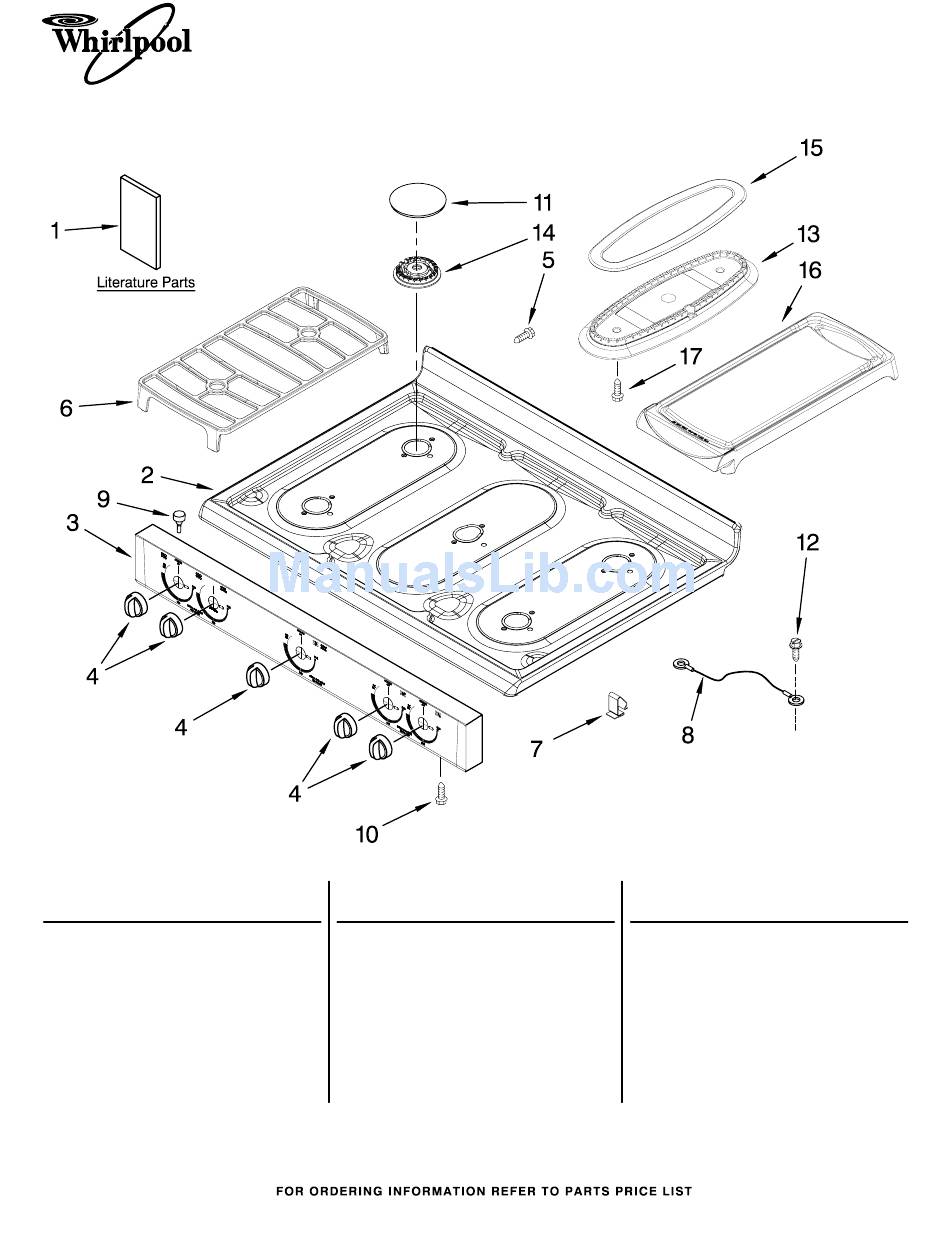

COOKTOP PARTS
For Model: SF216LXSQ1, SF216LXSM1
(Designer White) (Metalic)
Illus.
Part
No.
No.
DESCRIPTION
3
Panel, Manifold
W10110086 Metalic
W10110437 White
4
Knob, Burner (5)
98006100 Black
98006102 White
5
98007225 Screw
6
98016580 Grate, Burner (3)
7
98004722 Clip, Cooktop (2)
1
30" GAS FREESTANDING
STANDARD CLEAN RANGE
ELECTRONIC IGNITION
Illus.
Part
No.
No.
DESCRIPTION
8
98014544 Wire, Ground
9
98013389 Bumper, Cooktop
10
98005000 Screw (3)
11
98017461 Cap, Burner (4)
12
8534079 Screw
13
98017464 Fish Burner
14
98017537 Burner, Top (4)
15
98017539 Cap, Fish Burner
16 W10133861 Griddle
17 W10068560 Screw (2)
Part No. W10143251 Rev. A
