Whirlpool SF362LXTB0 Parts List

30" gas freestanding self clean range sealed burner
Hide thumbs

Advertisement

Quick Links

For Models: SF362LXTB0, SF362LXTQ0, SF362LXTT0, SF362LXTS0, SF362LXTY0
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
9762998 Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10110369 Owners Manual
9762973 Tech Sheet
9762761 Safer Cooking Tips
2
Cap, Burner
Left Front
3191904 Black
3191905 Grey
8273345 Espresso
R. Front, L. Rear
3191901 Black
3191903 Grey
8273344 Espresso
Right Rear
3191898 Black
3191899 Grey
8273343 Espresso
03−07 Litho In U.S.A. (cre)

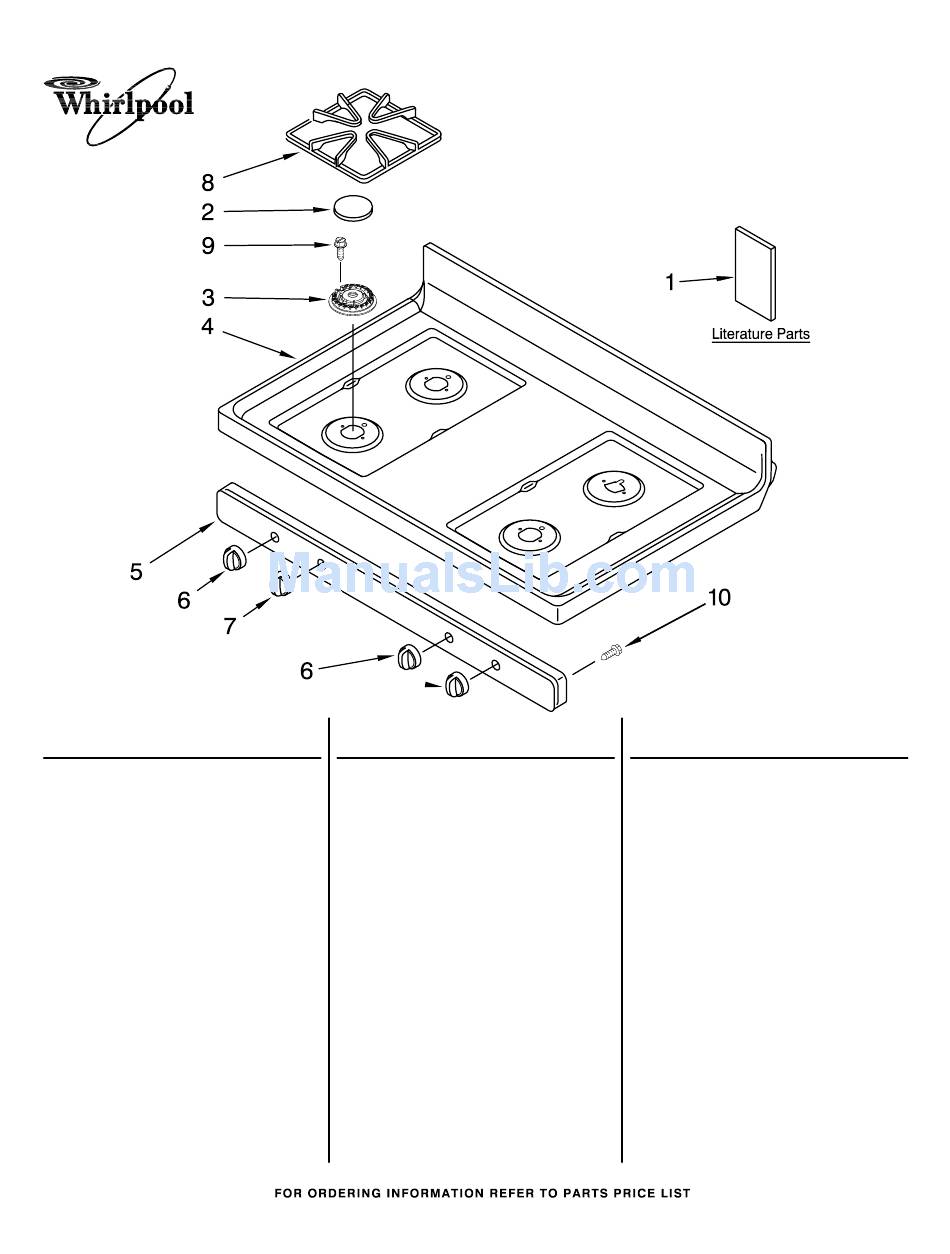

COOKTOP PARTS
(Black) (Designer White) (Designer Biscuit)(Stainless Steel) (Universal Silver)
Illus.
Part
No.
No.
3
4455981 Left Front
4455980 R. Front, L. Rear
4455979 Right Rear
4
8272251 White
8272743 Biscuit
8272253 Black
5
8523855 Black
8523854 White
8523856 Biscuit
Illus.
DESCRIPTION
No.
Burner
Cooktop
Panel, Manifold
10
1
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
Part
No.
DESCRIPTION
6
Knob, Control (3)
8273103 Black
8273104 White
8273106 Biscuit
7
Knob, Powerburner
8273111 Black
8273112 White
8273114 Biscuit
8
Grate, Burner (4)
8522851 Black
8522850 Grey
8522853 Espresso
9
3400701 Screw
3196557 Screw
Part No. W10131363 Rev.A
