Summary of Contents for ThinkPad ThinkPad X140e

  • Page 1: User Guide

    User Guide ThinkPad X140e...
  • Page 2 Note: Before using this information and the product it supports, be sure to read and understand the following: • Safety, Warranty, and Setup Guide • Regulatory Notice • “Important safety information” on page vi • Appendix E “Notices” on page 135 The latest Safety, Warranty, and Setup Guide and the Regulatory Notice are available on the Lenovo Support Web site at: http://www.lenovo.com/ThinkPadUserGuides...

  • Page 3: Table Of Contents

    Chapter 5. Recovery overview ..49 Windows key ... . . Using the ThinkPad pointing device ..Recovery overview for the Windows 7 operating system .
  • Page 4 ....ThinkPad Setup ....Locating wireless regulatory notices ..
  • Page 5 Recycling information for Japan ..European Union RoHS ... Battery recycling information for Brazil ..China RoHS....Battery recycling information for Taiwan .
  • Page 6 User Guide...

  • Page 7: Read This First

    Read this first Be sure to follow the important tips given here to get the most use and enjoyment out of your computer. Failure to do so might lead to discomfort or injury, or cause your computer to fail. Protect yourself from the heat that your computer generates. When your computer is turned on or the battery is charging, the base, the palm rest, and some other parts may become hot.

  • Page 8: Important Safety Information

    Protect your computer and data when moving it. Before moving a computer equipped with a hard disk drive, do one of the following, and make sure that the power button is off or is blinking: • Turn it off. • Put it in sleep mode. •...

  • Page 9: Conditions That Require Immediate Action

    Conditions that require immediate action Products can become damaged due to misuse or neglect. Some product damage is serious enough that the product should not be used again until it has been inspected and, if necessary, repaired by an authorized servicer. As with any electronic device, pay close attention to the product when it is turned on.

  • Page 10: Power Cords And Power Adapters

    sure that the power is turned off and that the product is unplugged from any power source. If you have any questions or concerns, contact the Customer Support Center. Although there are no moving parts in your computer after the power cord has been disconnected, the following warnings are required for your safety.

  • Page 11: Extension Cords And Related Devices

    To prevent possible overheating, do not cover the power adapter with clothing or other objects when the power adapter is plugged into an electrical outlet. Extension cords and related devices Ensure that extension cords, surge protectors, uninterruptible power supplies, and power strips that you use are rated to handle the electrical requirements of the product.

  • Page 12: External Devices

    Hazardous voltage, current, and energy levels are present inside any component that has this label attached. There are no serviceable parts inside these components. If you suspect a problem with one of these parts, contact a service technician. External devices CAUTION: Do not connect or disconnect any external device cables other than USB cables while the computer power is on;...

  • Page 13: Lithium Coin Cell Battery Notice

    • Keep it away from children. • Do not drop the battery pack. Do not put the battery pack in trash that is disposed of in landfills. When disposing of the battery, comply with local ordinances or regulations. The battery pack should be stored at room temperature, charged to approximately 30 to 50% of capacity.

  • Page 14: Electrical Current Safety Information

    from using the keyboard by lifting your hands from the palm rest; and be careful not to use the keyboard for any extended length of time. • Do not operate your computer or charge the battery near flammable materials or in explosive environments.

  • Page 15: Using Headphones Or Earphones

    DANGER Connect and disconnect cables as described in the following procedures when installing, moving, or opening covers on this product or attached devices. To connect: To disconnect: 1. Turn everything OFF. 1. Turn everything OFF. 2. First, attach all cables to devices. 2.

  • Page 16: Additional Safety Information

    Additional safety information DANGER Plastic bags can be dangerous. Keep plastic bags away from babies and children to avoid danger of suffocation. Notice for tablet personal computer users Safety notice for users in Australia DANGER Do not connect phone line while using tablet mode. Notice for users in the U.S.A.

  • Page 17: Chapter 1. Product Overview

    Locating computer controls, connectors, and indicators This section introduces the computer hardware features to give you the basic information you need to start using the computer. Front view Figure 1. ThinkPad X140e front view Integrated camera TrackPoint pointing stick ®...
  • Page 18 34. System status indicator (illuminated ThinkPad logo) The illuminated ThinkPad logo on the palm rest functions as a system status indicator. Your computer has several status indicators. For more information, see “System status indicators” on page 6.

  • Page 19: Right-Side View

    If you want to charge these devices when your computer is turned off, do the following: 1. Connect the computer to an ac power supply. 2. Go to ThinkPad Setup and enable Always On USB Charge in off mode. For more information, see “Config menu” on page 79.

  • Page 20: Left-Side View

    Purchase a security cable lock that fits this keyhole to lock your computer to a stationary object to protect your computer from theft. Left-side view Figure 3. ThinkPad X140e left-side view Video graphics array (VGA) connector Ethernet connector Fan louver Combo audio connector USB 3.0 connectors...

  • Page 21: Bottom View

    • The combo audio connector does not support a conventional microphone. For more information, see “Using audio features” on page 33. Bottom view Figure 4. ThinkPad X140e bottom view Chapter 1 Product overview...

  • Page 22: Status Indicators

    The status indicators show the current status of your computer. System status indicators The illuminated dot in the ThinkPad logo on the outer lid of your computer and on the palm rest works as a system status indicator. User Guide...
  • Page 23 The meaning of the indicator is as follows: • Red: The computer is on (in normal mode). • Fast blinking red: The computer is entering sleep or hibernation mode. • Slow blinking red: The computer is in sleep mode. • Off: The computer is off or in hibernation mode. Wireless status indicator The wireless status indicator is located on the outer lid of the computer.

  • Page 24: Locating Important Product Information

    The meaning of the indicator is as follows: • Green: The ac power adapter is connected. • Off: The ac power adapter is not connected. Caps Lock indicator Press the Caps Lock key to enable the Caps Lock mode to type all alphabetic characters (A-Z) in uppercase directly.

  • Page 25: Fcc Id And Ic Certification Number Label

    FCC ID and IC Certification number label There is no FCC ID or IC Certification number for the PCI Express Mini Card shown on the enclosure of your computer. The FCC ID and IC Certification number label is affixed on the card installed in the PCI Express Mini Card slot of your computer.

  • Page 26: Genuine Microsoft Label

    The Certificate of Authenticity label of your computer is shown as below: Genuine Microsoft label The Genuine Microsoft label is provided on models that are licensed to use a Windows 8 operating system. The version of the Windows 8 operating system is printed on the label. If your computer model is licensed to use the Windows 8 Pro operating system, that license also permits you to use the Windows 7 Professional operating system in place of the Windows 8 Pro operating system if you prefer.Lenovo computers that are licensed for use with a Windows 8 operating system are shipped with the Windows 8 license key digitally...

  • Page 27: Specifications

    – External monitor: Up to 2048x1536 (VGA) or up to 2560x1600 (HDMI) • Brightness control • Integrated camera Keyboard • 6-row keyboard • ThinkPad pointing device (TrackPoint and multi-touch touch pad) • Fn key Interface • External monitor connectors (VGA connector and HDMI connector) • Combo audio connector •...

  • Page 28: Operating Environment

    Battery pack • Lithium-ion (Li-Ion) battery pack Battery life • For the percentage of remaining battery power, check the battery status icon in the Windows notification area. Operating environment This section provides information about your computer operating environment. Environment: • Maximum altitude without pressurization: 3048 m (10 000 ft) •...
  • Page 29 Accessing Lenovo programs from the Lenovo ThinkVantage Tools program To access Lenovo programs from the Lenovo ThinkVantage Tools program, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools. Then double-click a program icon to access the program. Note: If a program icon in the Lenovo ThinkVantage Tools program navigation window is dimmed, it indicates that you need to install the program manually.

  • Page 30: Accessing Lenovo Programs On The Windows 8 Operating System

    Table 2. Programs in Control Panel (continued) Program Control Panel section Green text in Control Panel Password Manager System and Security Lenovo - Password Vault User Accounts and Family Safety Power Manager Hardware and Sound Lenovo - Power Controls System and Security Recovery Media System and Security Lenovo - Factory Recovery Disks...
  • Page 31 By switching between location profiles as you move your computer from place to place, you can quickly and easily connect to a network with no need to reconfigure your settings manually and restart the computer each time. • Client Security Solution The Client Security Solution program protects your computer by securing client data and deflecting security breach attempts.
  • Page 32 The Power Manager program provides convenient, flexible, and complete power management for your computer. It enables you to adjust your computer power settings to achieve the best balance between performance and power saving. • Recovery Media The Recovery Media program enables you to restore the contents of the hard disk drive to the factory default settings.

  • Page 33: Chapter 2. Using Your Computer

    “Registering your computer” on page 17 • “Frequently asked questions” on page 17 • “Special keys and buttons” on page 19 • “Using the ThinkPad pointing device” on page 21 • “Power management” on page 23 • “Connecting to the network” on page 28 •...
  • Page 34 • To conserve power, or to suspend operation without exiting programs or saving files, see “Power-saving modes” on page 25. • To achieve the best balance between performance and power saving, change power plan settings. • If your computer will be turned off for an extended period of time, you can prevent battery power from draining by removing the battery.

  • Page 35: Special Keys And Buttons

    Special keys and buttons Your computer has several special function keys and buttons to help you work more easily and effectively. Function key combinations To use the Fn function key combinations, press and hold the Fn key ; then press one of the function keys .
  • Page 36 Wireless features • Fn+F5 Enable or disable the built-in wireless networking features. Launching the camera and audio settings • Fn+F6 – For Windows 7: Open the Communications settings window, in which you can preview your video image, take a snapshot of your current image, and change the camera and audio settings. –...

  • Page 37: Windows Key

    Windows operating system. Using the ThinkPad pointing device Your computer comes with the ThinkPad pointing device. The ThinkPad pointing device consists of the TrackPoint pointing device and the touch pad, each of which is itself a pointing device with both basic and extended functions.
  • Page 38 The left and right bottom of the pad work as click buttons. The functions correspond to those of the left and right mouse buttons on a conventional mouse. Customizing the ThinkPad pointing device You can customize the ThinkPad pointing device to achieve the extended functions of the ThinkPad pointing device. To customize the ThinkPad pointing device, do the following: 1.

  • Page 39: Power Management

    Spend more time unplugged with ThinkPad batteries. Mobility has revolutionized business by allowing you to take your work wherever you go. With ThinkPad batteries, you will be able to work longer without being tied to an electrical outlet.

  • Page 40: Using The Ac Power Adapter

    • For Windows 8: Open the Lenovo Support program and click Battery Health, or open the Lenovo Settings program and click Power. Using the ac power adapter The power to run your computer can come either from the lithium-ion (Li-ion) battery pack provided with it, or from ac power through the ac power adapter.

  • Page 41: Managing The Battery Power

    • Use the battery until the charge is completely depleted; that is, use the battery until the battery status indicator starts blinking orange. • Recharge the battery completely before using it. The battery is fully charged if the battery indicator shows green when the ac power adapter is plugged in.

  • Page 42: Handling The Battery

    Enabling the wakeup function If you put your computer into hibernation mode, and the wakeup function is disabled (this is the default setting), the computer does not consume any power. If the wakeup function is enabled, it consumes a small amount of power. To enable the function, do the following: 1.
  • Page 43 DANGER Do not attempt to disassemble or modify the battery pack. Attempting to do so can cause an explosion, or liquid leakage from the battery pack. A battery pack other than the one specified by Lenovo, or a disassembled or modified battery pack is not covered by the warranty.

  • Page 44: Connecting To The Network

    DANGER There is a danger of an explosion if the backup battery is incorrectly placed. The lithium battery contains lithium and can explode if it is not properly handled, or disposed of. Replace only with a battery of the same type. To avoid possible injury or death, do not: (1) throw or immerse into water, (2) allow it to heat to more than 100°C (212°F), or (3) attempt to repair or disassemble it.

  • Page 45: Establishing A Wireless Connection

    Bluetooth Bluetooth is one of a number of technologies used to create a wireless personal area network. Bluetooth can connect devices a short distance from one another, and is commonly used for connecting peripheral devices to a computer, transferring data between hand-held devices and a personal computer, or remotely controlling and communicating with devices such as mobile phones.
  • Page 46 Checking the wireless network connection status You can check your computer wireless network connection status and wireless signal strength through the wireless network connection status icon in the Windows notification area. The more bars encompassed, the better the signal. For the Windows 7 operating system, you also can check the Access Connections gauge, the Access Connections status icon, or the Access Connections wireless network connection status icon in the Windows notification area.

  • Page 47: Presentations And Multimedia

    – Power to the wireless radio is on. The signal strength of the wireless connection is poor. To improve the signal strength, move your computer closer to the wireless access point. Note: If you have trouble in making a connection, try moving your computer closer to your wireless access point.
  • Page 48 1. Connect the external monitor to the monitor connector; then connect the monitor to an electrical outlet. 2. Turn on the external monitor. 3. Change the display output location by pressing Fn+F7. This enables you to switch between viewing output on the external monitor, the computer monitor, and both monitors. Note: If your computer cannot detect the external monitor, right-click on the desktop, then select Screen resolution.

  • Page 49: Using Dual Displays

    Using dual displays This section introduces the Extend desktop function that enables you to display output (the same or different) on both the computer display and an external monitor. Using the Extend desktop function Your computer supports a function named the Extend desktop. With the Extend desktop function, you can display output on both the computer display and an external monitor.

  • Page 50: Using The Integrated Camera

    • Built-in stereo speakers • Built-in digital microphone Your computer also has an audio chip that enables you to enjoy various multimedia audio features: • Recording and playback of PCM and WAV files in 16-bit or 24-bit format • Playback of a WAV file at a sample rate of 44.1KHz to 192 KHz •...

  • Page 51: Using A Flash Media Card

    – Configure the camera settings directly from the program that is using the camera. For details, see the help information system of the program. – Click Lenovo Settings from the Start screen. Then click Camera. Follow the instructions on the screen to configure the camera settings as desired.
  • Page 52 1. Click the triangular icon in the Windows notification area to show hidden icons. Then, right-click the Safely Remove Hardware and Eject Media icon. 2. Select the corresponding item to eject the card from the Windows operating system. 3. Press the card to eject it from your computer. 4.

  • Page 53: Chapter 3. You And Your Computer

    Chapter 3. You and your computer This chapter provides information about accessibility, comfort, and traveling with your computer. Accessibility and comfort Good ergonomic practice is important to get the most from your personal computer and to avoid discomfort. Arrange your workplace and the equipment you use to suit your individual needs and the kind of work that you perform.

  • Page 54: Comfort

    If your work area is not in an office setting, be sure to take special note of employing active sitting and taking work breaks. Many ThinkPad product solutions are available to help you modify and expand your computer to best suit your needs. Access the following Web site to view some of these options: http://www.lenovo.com/accessories/services/index.html.

  • Page 55: Traveling With Your Computer

    • When taking off, remember to turn off your computer or put it into hibernation mode. Travel accessories The following is a checklist of items to consider packing when you are going to travel: • ThinkPad ac power adapter • ThinkPad AC/DC Combo Adapter Chapter 3...
  • Page 56 • External mouse, if you are accustomed to using one • Ethernet cable • Extra battery, charged • A quality carrying case that provides adequate cushion and protection • External storage device If you are traveling to another country, you might want to consider an ac power adapter for the country to which you are traveling.

  • Page 57: Chapter 4. Security

    Chapter 4. Security This chapter provides information about how to protect your computer from theft and unauthorized use. • “Attaching a mechanical lock” on page 41 • “Using passwords” on page 41 • “Hard disk security” on page 46 • “Notice on deleting data from your hard disk drive or solid-state drive” on page 46 •...

  • Page 58: Power-On Password

    3. Turn your computer off and then turn it on again. 4. When the logo screen is displayed, press F1. The ThinkPad Setup program main menu opens. 5. Select Security, using the cursor directional keys to move down the menu.
  • Page 59 2. Save all open files, and exit all programs. 3. Turn your computer off and then on again. 4. When the logo screen is displayed, press F1. The ThinkPad Setup program main menu opens. 5. Select Security, using the cursor directional keys to move down the menu.

  • Page 60: Supervisor Password

    It provides the following security features: • If a supervisor password is set, a password prompt is displayed when you try to start the ThinkPad Setup program. Unauthorized users cannot get access to configuration data.
  • Page 61 3. Turn your computer off and then turn it on again. 4. When the logo screen is displayed, press F1. The ThinkPad Setup program main menu opens. 5. Select Security, using the cursor directional keys to move down the menu.

  • Page 62: Hard Disk Security

    9. In the Setup Notice window that is displayed, press Enter to continue. 10. Press F10. The Setup Confirmation window opens. Select Yes to save configuration changes and exit. The next time you open the ThinkPad Setup program, you will be prompted to type your password to proceed. Hard disk security To protect passwords from unauthorized security attacks, several of the latest technologies and algorithms are integrated into UEFI BIOS and hardware design of ThinkPad notebook computers.

  • Page 63: Using Firewalls

    To prevent leakage of data from the solid-state drive, it is recommended that you delete all data on the flash chips by use of a program provided by Lenovo. This program called the ThinkPad Setup Menu Extension Utility makes it possible to erase all the data on the flash chips of the solid-state drive from the ThinkPad Setup within a minute.
  • Page 64 User Guide...

  • Page 65: Chapter 5. Recovery Overview

    Chapter 5. Recovery overview This chapter provides information about the recovery solutions. • “Recovery overview for the Windows 7 operating system” on page 49 • “Recovery overview for the Windows 8 operating system” on page 54 Recovery overview for the Windows 7 operating system This section provides information about the recovery solutions provided by Lenovo on the Windows 7 operating system.

  • Page 66: Performing Backup And Recovery Operations

    Note: You can create recovery media using discs or external USB storage devices. To create recovery media, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Factory Recovery Disks. Then, follow the instructions on the screen. Using recovery media You can use recovery media to restore the computer to the factory default settings only.

  • Page 67: Using The Rescue And Recovery Workspace

    Performing a recovery operation This section provides instructions on how to perform a recovery operation using the Rescue and Recovery program. 1. From the Windows desktop, click Start ➙ All Programs ➙ Lenovo ThinkVantage Tools ➙ Enhanced Backup and Restore. The Rescue and Recovery program opens. 2.

  • Page 68: Creating And Using A Rescue Medium

    4. Do one of the following: • To rescue files from your hard disk drive or from a backup, click Rescue files and follow the instructions on the screen. • To restore your hard disk drive from a Rescue and Recovery backup or to restore your hard disk drive to the factory default settings, click Restore your system and follow the instructions on the screen.

  • Page 69: Reinstalling Preinstalled Programs And Device Drivers

    3. In the Boot Menu window, select the USB hard disk drive as the first boot device and press Enter. The rescue medium starts. When the rescue medium starts, the Rescue and Recovery workspace opens. The help information for each feature is available from the Rescue and Recovery workspace. Follow the instructions to complete the recovery process.

  • Page 70: Recovery Overview For The Windows 8 Operating System

    You must first make sure that your rescue device is set as the first boot device in the startup device sequence in the ThinkPad Setup program. See “Startup menu” on page 87 for detailed information about temporarily or permanently changing the startup device sequence.

  • Page 71: Using The Advanced Startup Options

    • To perform a quick format, click Just remove my files to start the process. The process will take several minutes. • To perform a complete format, click Fully clean the drive to start the process. The process will take several hours. 4.
  • Page 72 4. Ensure that you select the Copy the recovery partition from the PC to the recovery drive. option. Then click Next. Important: If you clear the Copy the recovery partition from the PC to the recovery drive. option, you will create recovery media without the recovery partition content. You still can start the computer from the recovery media, but you might be unable to recover your computer if the recovery partition on your computer is damaged.

  • Page 73: Chapter 6. Replacing Devices

    Chapter 6. Replacing devices This chapter provides instructions on how to install or replace hardware for your computer. • “Static electricity prevention” on page 57 • “Replacing the battery” on page 57 • “Replacing the hard disk drive or solid-state drive” on page 59 •...
  • Page 74 DANGER If the rechargeable battery pack is incorrectly replaced, there is danger of an explosion. The battery pack contains a small amount of harmful substances. To avoid injury: • Replace only with a battery of the type recommended by Lenovo. •...

  • Page 75: Replacing The Hard Disk Drive Or Solid-State Drive

    4. Insert a fully charged battery until it clicks into place , and then slide the battery latch to the locked position 5. Turn the computer over again. Connect the ac power adapter and all cables. Replacing the hard disk drive or solid-state drive Before you start, print these instructions.
  • Page 76 4. Loosen the screws , and then remove the cover 5. Remove the screws , and then slide the hard disk drive or solid-state drive out 6. Remove the hard disk drive or solid-state drive by lifting its left side. User Guide...
  • Page 77 7. Place the new hard disk drive or solid-state drive into the hard disk drive or solid-state drive bay. 8. Slide the hard disk drive or solid-state drive firmly into the connector , and then reinstall the screws 9. Attach the cover and pivot it downwards .

  • Page 78: Replacing A Pci Express Mini Card For Wireless Lan Connection

    Replacing a PCI Express Mini Card for wireless LAN connection Before you start, print these instructions. DANGER During electrical storms, do not connect the cable to or disconnect it from the telephone outlet on the wall. DANGER Electric current from power, telephone, and communication cables is hazardous. To avoid shock hazard, disconnect the cables before opening the cover of this slot.
  • Page 79 5. If a tool for removing connectors is included in the package with the new card, use it to disconnect the cables from the card. If no such tool is included, disconnect the cables by picking up the connectors with your fingers and gently unplugging them. 6.

  • Page 80: Replacing A Memory Module

    8. Connect the antenna cables to the new PCI Express Mini Card. Be sure to attach the gray cable to the connector marked “MAIN” or “M” on the card, and the black cable to the connector marked “AUX” or “A.” 9.
  • Page 81 To replace a memory module, do the following: 1. Turn off the computer; then disconnect the ac power adapter and all cables from the computer. 2. Close the computer display, and turn it over. 3. Remove the battery. See “Replacing the battery” on page 57. 4.
  • Page 82 7. With the notched end of the memory module toward the contact edge side of the socket, insert the memory module into the socket at an angle of about 20 degrees; then press it in firmly Important: If only one memory module is installed, ensure that you install it in the slot 8.

  • Page 83: Replacing The Keyboard

    10. Attach the cover and pivot it downwards . Then tighten the screws 11. Reinstall the battery. See “Replacing the battery” on page 57. 12. Turn the computer over again. Connect the ac power adapter and all cables. Replacing the keyboard Before you start, print these instructions.
  • Page 84 4. Loosen the screws , and then remove the cover 5. Remove the screws that secure the keyboard. 6. Turn the computer over and open the display. User Guide...
  • Page 85 7. Push hard in the direction shown by the arrows to unlatch the front side of the keyboard. The keyboard will be detached slightly 8. Remove the cables by flipping the connectors upwards. Remove the keyboard. Installing the keyboard To install the keyboard, do the following: Chapter 6 Replacing devices...
  • Page 86 1. Attach the cables by flipping the connectors downwards. 2. Insert the keyboard. Make sure that the rear edge of the keyboard is under the frame. User Guide...
  • Page 87 3. Slide the keyboard in the direction shown by the arrows,until the keyboard is secured in place. 4. Reinstall the screws. 5. Attach the cover and pivot it downwards . Then tighten the screws Chapter 6 Replacing devices...

  • Page 88: Replacing The Backup Battery

    6. Reinstall the battery. See “Replacing the battery” on page 57. 7. Turn the computer over again. Connect the ac power adapter and all cables. Replacing the backup battery Before you start, print these instructions. Prerequisites for the procedure DANGER If the backup battery is incorrectly replaced, there is danger of an explosion.
  • Page 89 5. Detach the connector . Then remove the backup battery To install the backup battery, do the following: 1. Install the backup battery . Then attach the connector 2. Attach the cover and pivot it downwards . Then tighten the screws Chapter 6 Replacing devices...
  • Page 90 3. Reinstall the battery. See “Replacing the battery” on page 57. 4. Turn the computer over again. Connect the ac power adapter and all cables. User Guide...

  • Page 91: Chapter 7. Advanced Configuration

    – The UEFI BIOS features are supported on the Windows 7 operating system (64-bit) and the Windows 8 operating system (64-bit). Ensure that the UEFI/Legacy Boot setting in ThinkPad Setup is set to your preference to boot the desired operating system.

  • Page 92: Installing The Windows 7 Operating System

    7. Restore C:\SWTOOLS from the backup copy you made before starting the installation. 8. Install the ThinkPad AMD SMBus Driver for Windows 7 and the ThinkPad AMD SATA Controller Driver for Windows 7. 9. Install device drivers. See “Installing other device drivers and software on the Windows 7 operating system”...

  • Page 93: Installing The Windows 8 Operating System

    Before you start, print these instructions. To install the Windows 8 operating system and its related software on your computer, do the following: 1. Start ThinkPad Setup. 2. Select Startup ➙ Boot. 3. Change the boot priority order to boot your computer from the drive that contains the Windows 8 operating system installer.

  • Page 94: Installing The Thinkpad Monitor File For Windows 2000/Xp/Vista/7/8 On The Windows 7 Operating System

    The ThinkPad monitor file for Windows 2000/XP/Vista/7/8 is in the following directory: C:\SWTOOLS\DRIVERS\MONITOR Note: If you cannot find this directory on your hard disk drive or solid-state drive, download the ThinkPad monitor file for Windows 2000/XP/Vista/7/8 from the ThinkPad Web site at: http://www.lenovo.com/ThinkPadDrivers...

  • Page 95: Main Menu

    If the item has a submenu, you can display it by pressing Enter. 4. Press Esc to exit from the submenu. 5. If you are on a nested submenu, press Esc repeatedly until you reach the ThinkPad Setup program main menu.
  • Page 96 • USB: Enable or disable USB related functions. • Keyboard/Mouse: Set the keyboard and mouse related functions. • Display: Specify the settings for display output. • Power: Set power management related functions. • Beep and Alarm: Enable or disable the audio related functions. •...
  • Page 97 Table 4. Config menu items (continued) Menu item Submenu item Selection Comments UEFI IPv4 Network Stack • Disabled Enable or disable Internet Protocol Version 4 (IPv4) (for UEFI Only boot mode • Enabled or Both with UEFI first) network stack for UEFI environment.
  • Page 98 Boot Display Device • ThinkPad LCD Select the display device that is to be activated at • Analog (VGA) boot time. This selection • Digital on ThinkPad is effective for boot time, password prompt, and ThinkPad Setup. Power CPU Power Management •...

  • Page 99: Date/Time Menu

    SATA controller operates in compatibility mode. Date/Time menu If you need to set the current date and time of your computer, select Date/Time from the ThinkPad Setup program main menu. The following submenu is displayed: • System Date • System Time To change the date and time, do the following: 1.
  • Page 100 By default, this is set to Disabled. If you set the supervisor password and enable this function, no one but you can change any items in the ThinkPad Setup program. Password at unattended • Disabled If you select and enable...
  • Page 101 Table 5. Security menu items (continued) Menu item Submenu item Selection Comments authentication on the operating system. • Disabled Set Minimum Length Specify a minimum length for the power-on password • Password length options and hard disk password. By default, this is set to Disabled.
  • Page 102 Table 5. Security menu items (continued) Menu item Submenu item Selection Comments I/O Port Access Ethernet LAN • Disabled If you select Enabled, you can use the Ethernet LAN • Enabled device. Wireless LAN • Disabled If you select Enabled, you can use the Wireless LAN •...

  • Page 103: Startup Menu

    To change the computer startup settings, select Startup from the ThinkPad Setup main menu. Attention: After you change your startup sequence, you must be extremely careful not to specify a wrong device during a copy, save, or format operation.
  • Page 104 5. PCI LAN: Other items on the Startup menu The following items also are displayed on the Startup menu of the ThinkPad Setup program: • Network Boot: Specify the top priority boot device to be used when the computer wakes from LAN.
  • Page 105 For Both or Legacy Only mode, CSM Support is not selectable. Boot Mode • Quick Screen during POST: • Diagnostics • Quick: The ThinkPad logo screen is displayed. • Diagnostics: Test messages are displayed. Beep at POST completion: • Quick: No. Sounds on error cases only.

  • Page 106: Restart Menu

    Restart menu If you need to close the ThinkPad Setup program and restart the system, select Restart from the ThinkPad Setup program main menu. The following submenu is displayed: • Exit Saving Changes: Restart the system after saving the changes.

  • Page 107: Setting Management Features

    Setting management features To enable the network administrator to control your computer remotely, you must configure the network interface by setting the system-management features in the ThinkPad Setup program. You can configure the following functions in the program: • Wake on LAN •...
  • Page 108 User Guide...

  • Page 109: Chapter 8. Preventing Problems

    Chapter 8. Preventing problems An important part of owning a ThinkPad notebook computer is maintenance. With proper care, you can avoid common problems. This chapter provides information that can help you keep your computer running smoothly. • “General tips for preventing problems” on page 93 •...

  • Page 110: Making Sure Device Drivers Are Current

    14. If required, you can find your country's Customer Support Center at: http://www.lenovo.com/support/phone. When calling the Customer Support Center, make sure that you have your machine model type, serial number, and the computer in front of you. Also, if the computer is producing error codes, it is helpful to have the error screen on or the message written down.

  • Page 111: Taking Care Of Your Computer

    Taking care of your computer Although your computer is designed to function reliably in normal work environments, you need to use common sense in handling it. By following these important tips, you will get the most use and enjoyment out of your computer. Be careful about where and how you work •...

  • Page 112: Cleaning The Cover Of Your Computer

    Register your computer • Register your ThinkPad computer with Lenovo. For more information, see “Registering your computer” on page 17. Be sure not to modify your computer •...
  • Page 113 Note: Avoid spraying cleaner directly onto the display or the keyboard. Cleaning your computer display To clean the computer display, do the following: 1. Gently wipe the display with a dry, soft lint-free cloth. If you see a scratchlike mark on your display, it might be a stain transferred from the keyboard or the TrackPoint pointing stick when the cover was pressed from the outside.
  • Page 114 User Guide...

  • Page 115: Chapter 9. Troubleshooting Computer Problems

    Computer stops responding Print these instructions now and keep it with your computer for reference later. If your computer is completely unresponsive (you cannot use the ThinkPad pointing device or the keyboard), do the following: 1. Press and hold the power button until the computer turns off. After the computer is turned off, restart by pressing the power button.

  • Page 116: Spills On The Keyboard

    Note: Do not remove the battery and the ac power adapter to reset the computer. 2. While the computer is turned off, remove all power sources from the computer (battery and the ac power adapter). Hold down the power button for 10 seconds. Plug in the ac power adapter while keeping the battery out of the computer.
  • Page 117 • Message: 0271: Date and time error Solution: Neither the date nor the time is set in the computer. Set the date and time, using the ThinkPad Setup. • Message: 2000: ThinkVantage Active Protection sensor diagnostics failed.

  • Page 118: Errors Without Messages

    • Message: 2110: Read error on HDD0 (Main HDD) Solution: The hard disk drive is not working. Have the hard disk drive serviced. • Message: 2200: Machine Type and Serial Number are invalid. Solution: POST warning message in case MTMSN is not set correctly. Have the computer serviced. •...

  • Page 119: Beep Errors

    – The battery is installed correctly. – The ac power adapter is connected to the computer and the power cord is plugged into a working electrical outlet. – The computer is turned on. (Turn the power button on again for confirmation.) If a power-on password is set: –...

  • Page 120: Networking Problems

    – Connect to a 1000 BASE-T hub/switch (not 1000 BASE-X). • Problem: The Wake on LAN feature is not working. Solution: – Make sure that Wake on LAN is enabled in ThinkPad Setup. – If it is, check with your LAN administrator for the necessary settings. User Guide...

  • Page 121: Problems With The Keyboard And Other Pointing Devices

    Problems with the keyboard and other pointing devices The following are the most common problems with keyboards and other pointing devices. ThinkPad pointing device problems • Problem: The pointer drifts when the computer is turned on or after it resumes normal operation.

  • Page 122: Problems With The Display And Multimedia Devices

    Solution: Make sure that the TrackPoint pointing device or touch pad is enabled. Note: To enable the TrackPoint pointing device, open Control Panel and click Hardware and Sound ➙ Mouse, and then click the ThinkPad tab. Keyboard problems • Problem: All or some keys on the keyboard do not work.

  • Page 123: External Monitor Problems

    To check these settings, do the following: 1. Right-click on the desktop, and click Personalize. 2. Click Display at the left. 3. Select Change display settings. Check whether the screen resolution is correctly set. 4. Click Advanced Settings. 5. Click the Adapter tab. Ensure that the correct device driver name is shown in the adapter information window.
  • Page 124 Solution: – Make sure that the monitor information is correct. Do the following: 1. Right-click on the desktop, and click Screen resolution. Note: If your computer cannot detect the external monitor, click the Detect button. 2. Click the icon for the desired monitor (the Monitor-2 icon is for the external monitor). 3.
  • Page 125 1. Connect the external monitor to the monitor connector, and then connect the monitor to an electrical outlet. 2. Turn on the external monitor and the computer. 3. Right-click on the desktop, and click Screen resolution. Note: If your computer cannot detect the external monitor, click the Detect button. 4.

  • Page 126: Audio Problems

    (the resolution and the refresh rate) that you have set. If it does not, set a display mode that the monitor supports. If it does support the display mode you have set, go to the setup menu for the monitor itself and adjust the settings there.

  • Page 127: Battery And Power Problems

    • Problem: When you connect a headphone to your computer while playing sound, a speaker does not produce sound. Solution: Once the headphone is attached, the streaming is automatically redirected to it. If you want to listen to sound from the speakers again, be sure to set those speakers as the default device. For details, refer to the help information system for Realtek HD Audio.

  • Page 128: Power Problems

    2. Swap batteries with another similar model, if available. If another similar ThinkPad model is available, then verify that the battery pack works in the other computer and that the battery pack for the other model works in this computer.

  • Page 129: Sleep And Hibernation Problems

    Connect the ac power adapter to the computer; then press Fn. – If the system status indicator (illuminated ThinkPad logo) is off, your computer is in power-off state or in hibernation mode. Connect the ac power adapter to the computer; then press the power button to resume operation.

  • Page 130: Problems With Drives And Other Storage Devices

    • Problem: The hard disk drive does not work. Solution: On the Boot menu of ThinkPad Setup, make sure that the hard disk drive is on the Boot priority order list. If it is on the Excluded from boot order list, it is disabled. Select the entry for it on the list and press the Shift+1 key.

  • Page 131: Problems With Ports And Connectors

    • The necessary device drivers are installed. • The program works when it is run on some other computer. If an error message is displayed while you are using the program, refer to the manuals supplied with the program. If the program still does not run correctly, contact your place of purchase or a service representative for help. Problems with ports and connectors The following are the most common problems with ports and connectors.
  • Page 132 User Guide...

  • Page 133: Chapter 10. Getting Support

    Chapter 10. Getting support This chapter provides information about getting help and support from Lenovo. • “Before you contact Lenovo” on page 117 • “Getting help and service” on page 117 • “Purchasing additional services” on page 119 Before you contact Lenovo Often, you can solve your computer problems by referring to the information in the explanations of error codes, running diagnostic programs, or by consulting the Lenovo Web site.

  • Page 134: Using Diagnostic Programs

    ThinkPad notebook computers come with a set of diagnostic programs that you can use to help you identify hardware problems. See “Diagnosing problems” on page 99 for instructions on using the diagnostic programs.

  • Page 135: Finding Thinkpad Options

    If the number for your country or region is not provided, contact your Lenovo reseller or Lenovo marketing representative. Finding ThinkPad options If you want to expand the capabilities of your computer, Lenovo has a number of hardware accessories and upgrades to meet your needs.
  • Page 136 For more information about these services, go to: http://www.lenovo.com/accessories/services/index.html User Guide...

  • Page 137: Appendix A. Regulatory Information

    Appendix A. Regulatory information Wireless related information Wireless interoperability The Wireless LAN PCI Express Mini Card is designed to be interoperable with any wireless LAN product that is based on DSSS, CCK, and/or OFDM radio technology, and is compliant to: •...

  • Page 138: Location Of The Ultraconnect Wireless Antennas

    Location of the UltraConnect wireless antennas ThinkPad notebook computers feature an integrated UltraConnect™ wireless antenna system built into the display for optimal reception, enabling wireless communication wherever you are. Wireless LAN antenna (auxiliary)

  • Page 139: Export Classification Notice

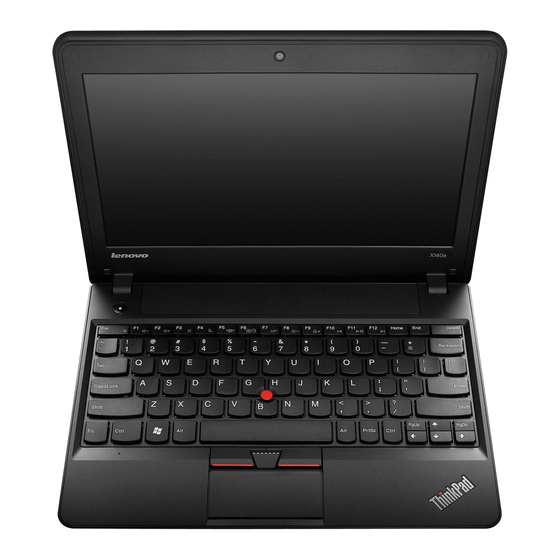

    EAR E1 country list. Electronic emission notices The following information refers to the ThinkPad X140e, machine types 20BL and 20BM. Federal Communications Commission Declaration of Conformity This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 140: German Class B Compliance Statement

    accept responsibility for any failure to satisfy the protection requirements resulting from a non-recommended modification of the product, including the installation of option cards from other manufacturers. This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022.

  • Page 141: Japan Vcci Class B Compliance Statement

    Japan VCCI Class B compliance statement Japan compliance statement for products which connect to the power mains with rated current less than or equal to 20 A per phase Lenovo product service information for Taiwan When attaching an external monitor If you attach an external monitor, a video interface cable with a ferrite core installed on the cable is required.
  • Page 142 User Guide...

  • Page 143: Appendix B. Weee And Recycling Statements

    Appendix B. WEEE and recycling statements Lenovo encourages owners of information technology equipment to responsibly recycle their equipment when it is no longer needed. Lenovo offers a variety of programs and services to assist equipment owners in recycling their IT products. Information on product recycling offerings can be found on Lenovo's Internet site at http://www.lenovo.com/social_responsibility/us/en/.

  • Page 144: Battery Recycling Information For Brazil

    Disposing of disused lithium batteries from Lenovo computers A button-shaped lithium battery is installed inside of your Lenovo computer to provide power to the computer clock while the computer is off or disconnected from the main power source. If you need to replace it with a new one, contact your place of purchase or contact Lenovo for service.

  • Page 145: Battery Recycling Information For The European Union

    Battery recycling information for the European Union Notice: This mark applies only to countries within the European Union (EU). Batteries or packaging for batteries are labeled in accordance with European Directive 2006/66/EC concerning batteries and accumulators and waste batteries and accumulators. The Directive determines the framework for the return and recycling of used batteries and accumulators as applicable throughout the European Union.
  • Page 146 User Guide...

  • Page 147: Appendix C. Energy Star Model Information

    Appendix C. ENERGY STAR model information ® ENERGY STAR is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy aimed at saving money and protecting the environment through energy efficient products and practices. Lenovo is proud to offer our customers products with the ENERGY STAR qualified designation. Lenovo computers of the following machine types, if the ENERGY STAR mark is affixed, have been designed and tested to conform to the ENERGY STAR program requirements for computers.
  • Page 148 5. Click the Power Management tab. 6. Clear the Allow this device to wake the computer check box. 7. Click OK. User Guide...

  • Page 149: Appendix D. Restriction Of Hazardous Substances Directive (Rohs)

    Appendix D. Restriction of Hazardous Substances Directive (RoHS) European Union RoHS Lenovo products sold in the European Union, on or after 3 January 2013 meet the requirements of Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment (“RoHS recast”...
