INSTALLATION AND OPERATION MANUAL
AMD SERIES
MIXER AMPLIFIERS
AMD100
AMD200

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMD100 and is the answer not in the manual?

Questions and answers

Related Manuals for AUSTRALIAN MONITOR AMD100

Summary of Contents for AUSTRALIAN MONITOR AMD100

  • Page 1 INSTALLATION AND OPERATION MANUAL AMD SERIES MIXER AMPLIFIERS AMD100 AMD200...

  • Page 2: Important Safety Information

    à la pluie ou à l’humidité. mains outlet with a protective earth connection. Un appareil avec la borne de terre de protection doit être connecté au secteur avec la connexiion de terre de protection. PAGE 2 AMD100/200 INSTALLATION AND OPERATION MANUAL...

  • Page 3: Introduction And Contents

    INTRODUCTION AND CONTENTS AMD 100/200 INTRODUCTION The AMD series of mixer amplifi ers from Australian Monitor FRONT PANEL represent a quantum leap forward in connectivity, controllability & fl exibility in the constant voltage amplifi er market. The AMD REAR PANEL series allows a contractor to integrate the mixer amplifi...

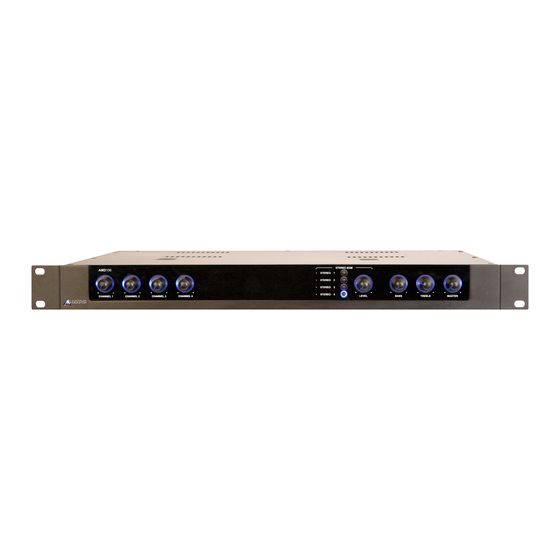

  • Page 4: Front Panel

    Treble: 10 dB of cut and boost at 5 kHz Master Volume Used to adjust the master volume. Overall master volume will always be a resultant of front panel, virtual volume and VCA volume. For more information see page 6. PAGE 4 AMD100/200 INSTALLATION AND OPERATION MANUAL...

  • Page 5: Rear Panel

    Bandwidth = 300 Hz to 3 kHz 230 V to 240 V / 115 V to 120 V This power input is NOT auto-switching, contact Australian Monitor if the unit needs to be changed from its shipped voltage confi guration.

  • Page 6: Things To Know

    To update fi rmware inside of the AMD100/200 you will need a connection with the PC software via USB. All fi rmware fi les for the AMD100/200 series have a fi letype of .amfw, anything else will not be recognised by the software.

  • Page 7: Installation And Connection

    INSTALLATION & CONNECTION System Requirments In order to use the AMD100/200 software it is recomended your computer meets the following requirments: CPU: 1.4 Ghz or higher Memory: 512 MB or more Hard Disk: 30 MB or more available Display: 1024 x 768 (16 bit) or higher...

  • Page 8: Using The Gui

    At the base of this screen there are fi ve set up buttons to adjust features of the AMD series mixer amplifi ers. Audio Setup: The Audio Setup page allows you to adjust all the DSP functions within the AMD Series. PAGE 8 AMD100/200 INSTALLATION AND OPERATION MANUAL...

  • Page 9: Input Level

    All adjustments are displayed on the graph to the right of the screen. Input EQ: Each input on the AMD100/200 contains EQ. The EQ features a Low Shelf, High Shelf and 2 parametric fi lters. All adjustments are displayed on the graph to the right of the screen.

  • Page 10: Output Delay

    Release and Output Gain may be adjusted. All adjustments are displayed on the graph to the right of the screen. Output Level: Each output of the AMD100/200 features an output level trim. This control ranges from -96 dB to +12 dB. PAGE 10...
  • Page 11 AMD Series. The following tones are available: Bell (Pre Master Level) Chimes (Pre Master Level) Alert (Post Master Level) Evac (Post Master Level) All tones volumes are by default set to -12 db. PAGE 11 AMD100/200 INSTALLATION AND OPERATION MANUAL...
  • Page 12 VCA volume. The factory default has the front panel enabled and GUI based volume controls set to 0db so it performs like a normal mixer amplifi er. PAGE 12 AMD100/200 INSTALLATION AND OPERATION MANUAL...
  • Page 13 ICON-CP/AMD100-200 The ICON-CP can be used to control certain functions of the AMD100/200. 1. BGM 1 The set up the control panel all you need to do is address the panel on SW1. Switch 1-8 represent a binary address. For example to address it to ID1 all you 2.

  • Page 14: Available Parameters

    When a volume is adjusted from another source e.g. ICON-CP the The following parameters can be externally controlled: AMD100/200 will send: Mic/Line Input 1 - 8 (1 - 4 for AMD100), BGM source and Master virtual %PVAL=xxyy<CR> where “xx” is the source and “yy” is the volume control.

  • Page 15: Low Power Mode

    00 = Normal Mode %PFLG:xx??<CR> where “xx” is the source 01 = Low Power Mode If a mute fl ag is enabled from another source e.g. ICON-CP the AMD100/200 02 = Emergency Mode will send: 03 = Emergency Mode with Low Power Mode %PFLG=xxyy<CR>...
  • Page 16 %PVAL:xx??<CR> where “xx” is the source. When a fi lter is adjusted from another source e.g. the GUI the AMD100/200 will send: %PVAL=xxyy<CR> where “xx” is the source and “yy” is the current value.
  • Page 17 STEREO • STEREO • STEREO CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 CHANNEL 5 CHANNEL 6 CHANNEL 7 CHANNEL 8 LEVEL BASS TREBLE MASTER 430.00 mm (16.9”) 115VAC,50-60Hz 230VAC,50-60Hz 330.00 mm (13.0”) PAGE 17 AMD100/200 INSTALLATION AND OPERATION MANUAL...

  • Page 18: Specifications

    A-weighted, to line and amp output, 20 Hz to 20 kHz Stereo Input > 91 dB A-weighted, to line and amp output, 20 Hz to 20 kHz Max Output Line Level Ouptut 10 dBu Balanced (+4 dBu unbalanced on each leg) PAGE 18 AMD100/200 INSTALLATION AND OPERATION MANUAL...
  • Page 19 Shipping Weight - AMD100 8 kg (17.6 lbs) - AMD200 9 kg (19.8 lbs) Shipping Dimensions (w x d x h) 540 mm x 410 mm x 140 mm (21.3” x 16.1” x 5.51”) PAGE 19 AMD100/200 INSTALLATION AND OPERATION MANUAL...
  • Page 20 ENGINEERED BY AUSTRALIAN MONITOR Address: 1 Clyde Street, Silverwater, Sydney NSW 2128 Australia. Private Bag 149, Silverwater NSW 1811 ABN 78 001 345 482 Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au DISTRIBUTED IN AUSTRALIA AND NEW ZEALAND BY HILLS SVL www.hillssvl.com.au...
