- Page 1 INSTALLATION AND OPERATION MANUAL AMD SERIES POWER AMPLIFIER AMD4200P...
-
Page 2: Important Safety Information
à la pluie ou à l’humidité. mains outlet with a protective earth connection. 19. Un appareil avec la borne de terre de protection doit être connecté au secteur avec la connexiion de terre de protection. PAGE 2 AMD4200P INSTALLATION AND OPERATION MANUAL... -
Page 3: Introduction And Contents

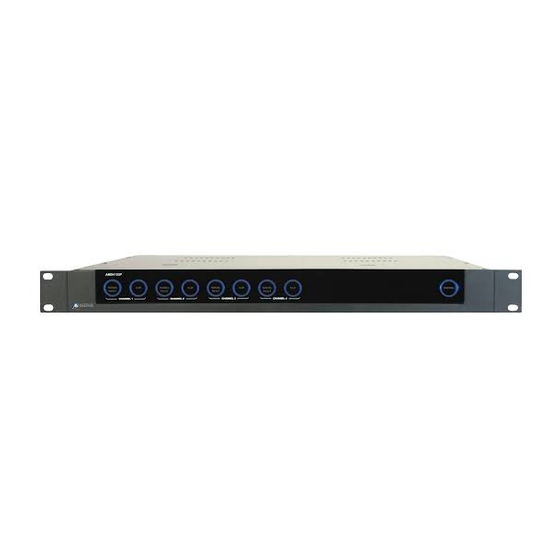

INTRODUCTION AND CONTENTS AMD4200P INTRODUCTION FRONT PANEL The AMD P series of power amplifiers from Australian Monitor represent a quantum leap forward in connectivity, controllability & REAR PANEL flexibility in the constant voltage amplifier market. The AMD series allows a contractor to integrate the power amplifier to a third... -
Page 4: Front Panel
If this is happening the input should reduced using the input attenuator at the rear of the unit, or at the program source. Control Indicator The control indicator will flash whenever a control system adjusts a parameter inside the amplifier. PAGE 4 AMD4200P INSTALLATION AND OPERATION MANUAL... -
Page 5: Rear Panel
Female XLR 230 to 240V or 115V to 120V The power input is NOT auto-switching. Australian Monitor should be contacted if the voltage needs to be changed from its shipped configuration. The power input also features a power switch, this is a hard power off and will shut down the unit completely. -
Page 6: Installation
Mounting when installing your AMD4200P amplifier. The AMD4200P amplifier is one rack units high (1U) and will fit a standard EIA 19 rack. A rack rear support bracket is supplied and must be must be installed when rack mounting the amplifier. The rear support bracket should be installed to the rack (rear rails) prior to mounting the amplifier. -
Page 7: Available Parameters
RS232 PROTOCOL Port & Protocol Information Channel Input Cross Mix Level: The RS232 port of the AMD4200P amplifier’s consists of three connections: To adjust the volume control of an input cross mix level. Transmit – Data from the amplifier *The Cross Mix commands allow any of the input channels to be mixed to a particular output channel. - Page 8 firmware version number (can range from 00 to FF) bb represents the minor firmware version number (can range from 00 to FF) cccc represents the firmware revision number (can range from 0000 to FFFF) PAGE 8 AMD4200P INSTALLATION AND OPERATION MANUAL...
-
Page 9: Command Summary
FW version major num bb is the FW version minor num cccc is the FW version revision Get amp status %PAMP:x??<CR> %PAMP=xyy<CR> x ranges from 01 to 04 yy ranges from 00 to 02 AMD4200P INSTALLATION AND OPERATION MANUAL PAGE 9... - Page 10 482.00 mm (19.0”) 465.00 mm (18.3”) AMD4200P SIGNAL CLIP SIGNAL CLIP SIGNAL CLIP SIGNAL CLIP CONTROL FAULT FAULT FAULT FAULT CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 430.00 mm (16.9”) POWER 438.00 mm (17.25”) PAGE 10 AMD4200P INSTALLATION AND OPERATION MANUAL...
-
Page 11: Specifications
(16.9” x 17.25” x 1.75”) Net Weight 16.7 kg (36.8 lbs) Shipping Weight 18.7 kg (41.2 lbs) Shipping Dimensions (w x d x h) 540 mm x 530 mm x 140 mm (21.3” x 20.9” x 5.5”) AMD4200P INSTALLATION AND OPERATION MANUAL PAGE 11... - Page 12 ENGINEERED BY AUSTRALIAN MONITOR Address: 1 Clyde Street, Silverwater, Sydney NSW 2128 Australia. Private Bag 149, Silverwater NSW 1811 ABN 78 001 345 482 Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au DISTRIBUTED IN AUSTRALIA AND NEW ZEALAND BY HILLS SVL www.hillssvl.com.au...
