I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation

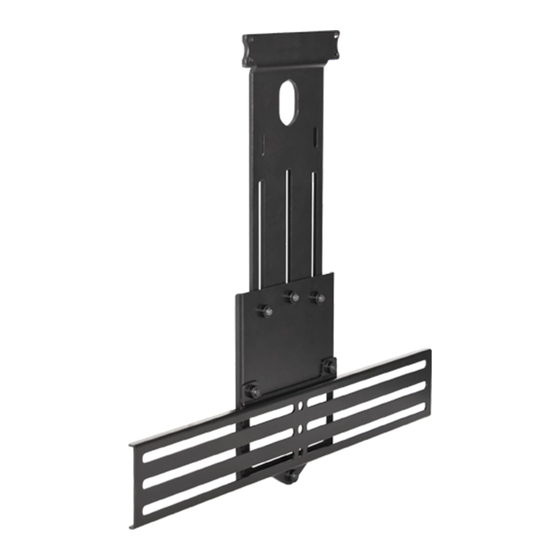

Center Speaker Bracket
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
TA350
Advertisement
Related Manuals for CHIEF TA350
Summary of Contents for CHIEF TA350
- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation Center Speaker Bracket Spanish Product Description German Product Description Portuguese Product Description Italian Product Description Dutch Product Description French Product Description TA350...
-
Page 2: Important Warnings And Cautions
WARNING: Failure to provide adequate structural strength Chief® is a registered trademark of Milestone AV Technologies. for this component can result in serious personal injury or All rights reserved. damage to equipment! It is the installer’s responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. - Page 3 Installation Instructions TA350 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación...
-
Page 4: Tools Required For Installation
TA350 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/8" 5/32" (included) 1/8" (included) PARTS A (1) B (1) [center speaker bracket] [attachment bracket] C (1) [long extension bracket] E (6) F (4) H (4) G (1) 1/4-20 x 3/8" #10-24 x 3/8"... - Page 5 Installation Instructions TA350 Installation With Long Extension Bracket Use three 1/4-20 x 3/8" button head cap screws (E) to Bracket Assembly attach long extension bracket (C) to center speaker bracket (B). (See Figure 3) With Short Extension Bracket Use two 1/4-20 x 3/8" button head cap screws (E) and one 1/4-20 x 3/8"...
- Page 6 Installation Instructions TS3XX or iCF30 Installation Install Attachment Bracket to Faceplate NOTE: TA350 center channel speaker brackets may be If already installed, remove display from faceplate. See installed above or below the display. swing arm installation instructions for details. TS525 or iCF50 Installation Use four #10-24 x 1/2"...
- Page 7 It is the installer’s responsibility to make sure the combined weight of all equipment and accessories mounted on the TA350 bracket does not exceed 10 lbs (4.54 kg). Attach center speaker to center speaker bracket (B) using appropriate hardware (not provided).
- Page 8 Europe A Fellenoord 130 5611 ZB EINDHOVEN, The Netherlands P +31 (0)40 2668620 F +31 (0)40 2668615 Chief Manufacturing, a products division Asia Pacific A Office No. 1 on 12/F, Shatin Galleria of Milestone AV Technologies 18-24 Shan Mei Street...
