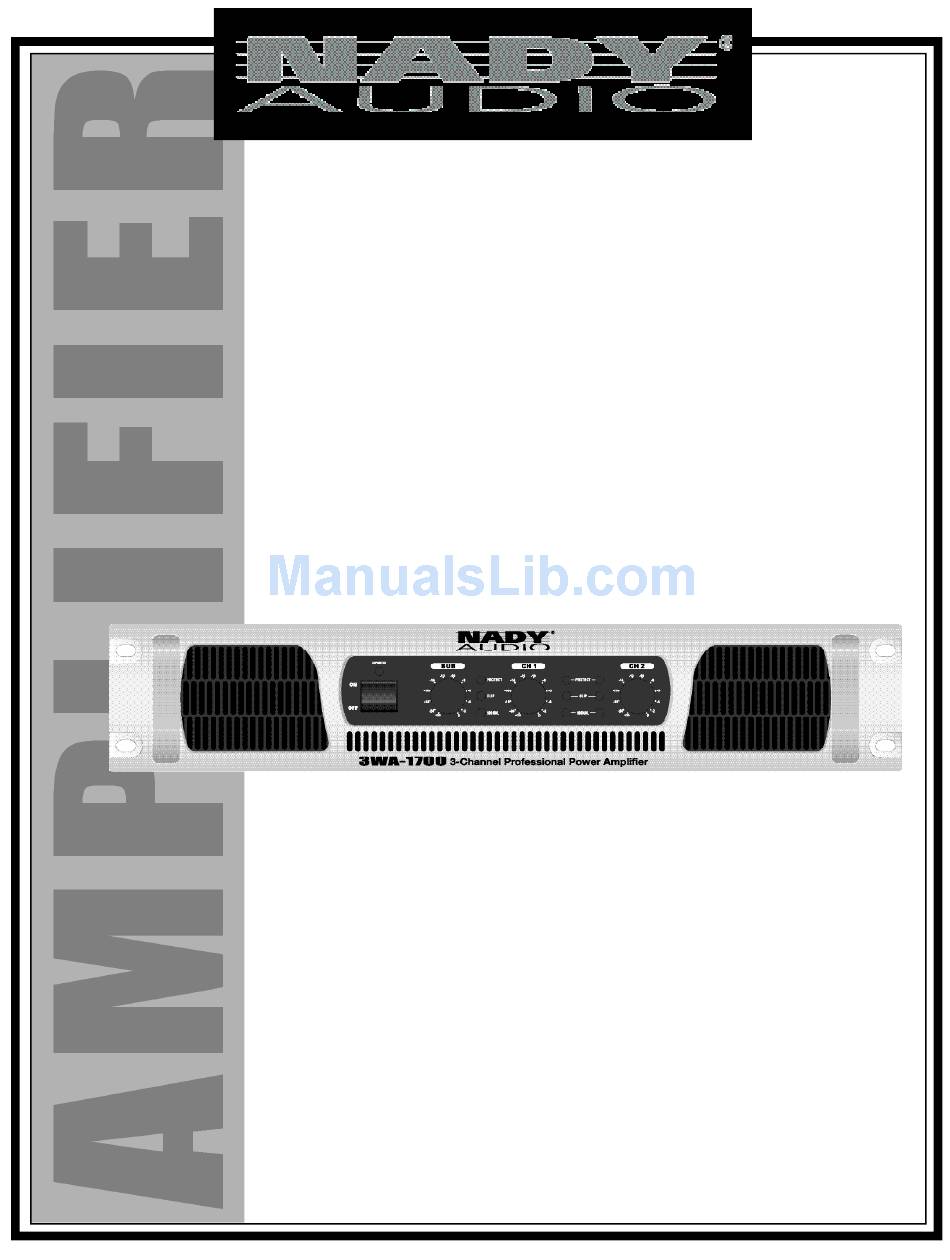

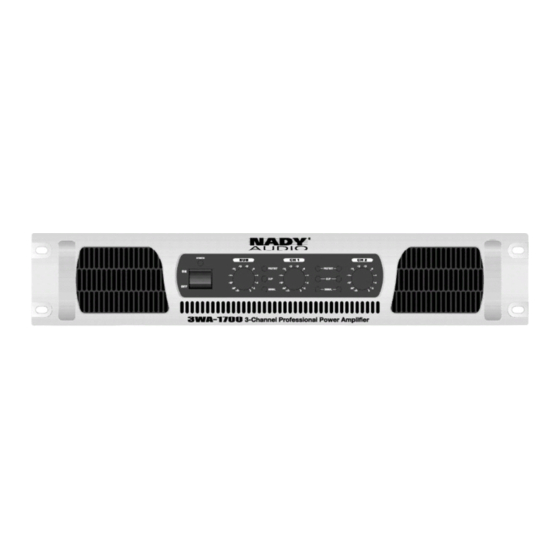

- Page 1 O W N E R ’ S M A N U A L 3WA-1700 3-CHANNEL PROFESSIONAL P O W E R A M P L I F I E R...
-
Page 2: Table Of Contents
3WA-1700 amplifier has superior performance and greater flexibility than any other amplifier in its price range. Please read this manual carefully to get the most out of your new unit. Thanks for selecting NADY AUDIO as your choice in power amplifiers. -
Page 3: Warning
WA R N I N G IMPORTANT SAFETY INSTRUCTIONS When using this electronic device, basic precautions should always be taken, including the following: Read all instructions before using the product. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool, etc.). -
Page 4: Controls And Connections
C O N T R O L S A N D C O N N E C T I O N S FRONT PANEL 1. POWER SWITCH 6. CLIP (PEAK) LED INDICATORS To turn the unit ON or OFF, press the upper or lower portion of These LEDs illuminate if the corresponding channel’s output is this button. -
Page 5: Rear Panel
The fuse holder contains a 3AG fast blow fuse. If this fuse reinforcement. continuously blows, shut off the unit and have it serviced by the Nady Service Department. 11. LOW CUT FILTER SWITCH This switch enables/disables the low cut filter for the Subwoofer output. -
Page 6: Installation
(Note: Nady Systems is not responsible for shipping damage. If the unit is damaged, do not return to us, but notify your dealer and the shipping company immediately to make a claim. Such claims must be made by the consignee in a timely manner.) CONTENTS •... -
Page 7: Speaker Connections
The following instructions describe the most common ways to install your amplifier into a sound system. Turn off the amplifier power switch before making any connections. (Note: Nady Systems assumes no liability for damaged speakers resulting from improper wiring, careless amplifier use, or over powering.) •... - Page 8 S P E A K E R C O N N E C T I O N S • Mains & Monitor Mode 1. Input main Left and Right signals from your crossover into Channels 1 and 2. 2. Input Monitor or Aux full-range signal from your mixer into the Subwoofer input. 3.
-
Page 9: Specifications
S P E C I F I C AT I O N S 1. OUTPUT SECTION Power Output (all channels driven simultaneously, 1% THD) Channel 1 & 2 ..................................300W RMS per side @ 8Ω 450W RMS per side @ 4Ω Subwoofer ......................................550W RMS @ 8Ω... -
Page 10: Notes
N OT E S... - Page 11 (U.S.) Should your NADY AUDIO product require service, please contact the Nady Service Department via telephone at (510) 652-2411, or e-mail at service@nady.com. (International) For service, please contact the NADY AUDIO distributor in your country through the dealer from whom you purchased this product.
