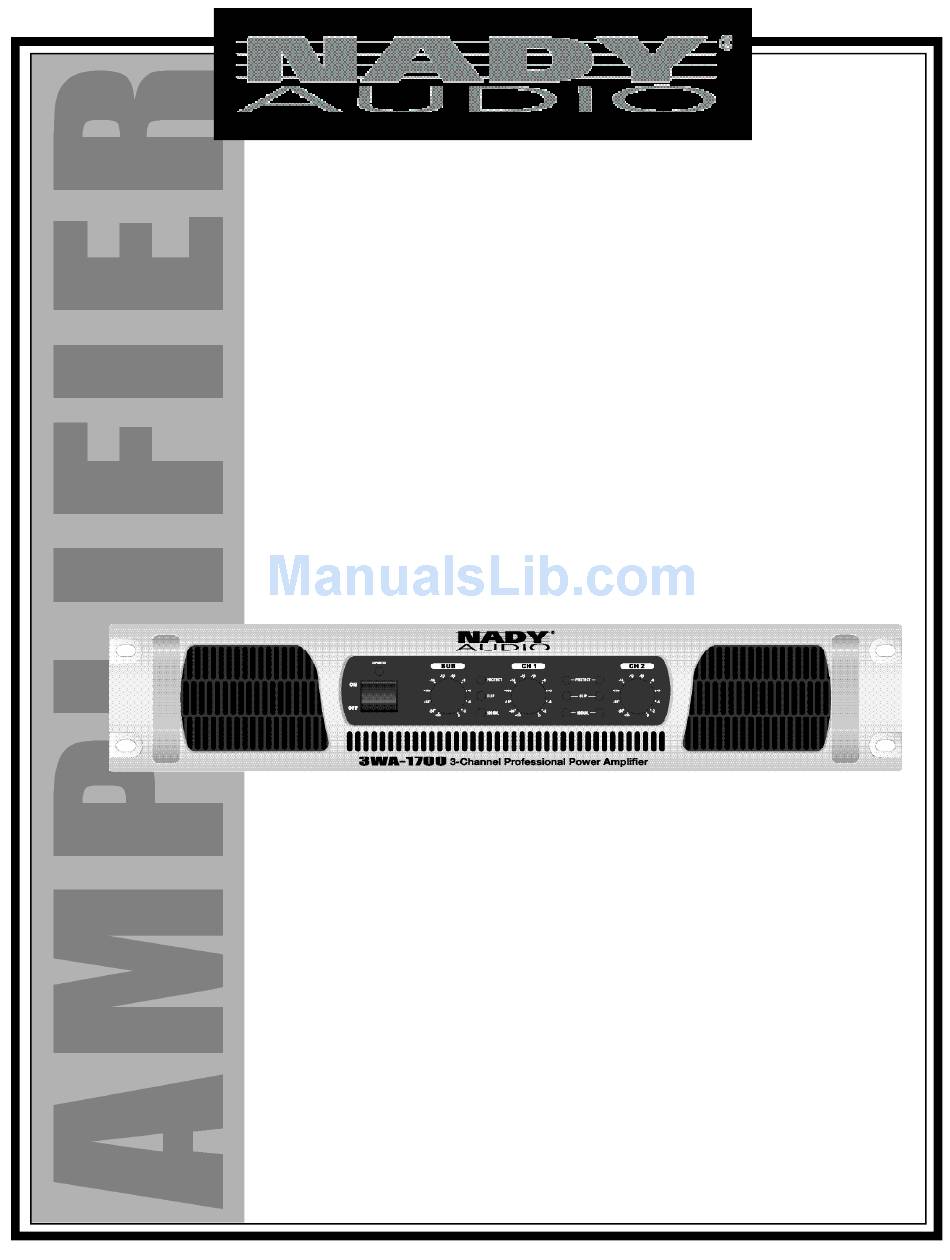

- Page 1 O W N E R ’ S M A N U A L 3WA-1700 3-CHANNEL PROFESSIONAL P O W E R A M P L I F I E R...
-
Page 2: Table Of Contents

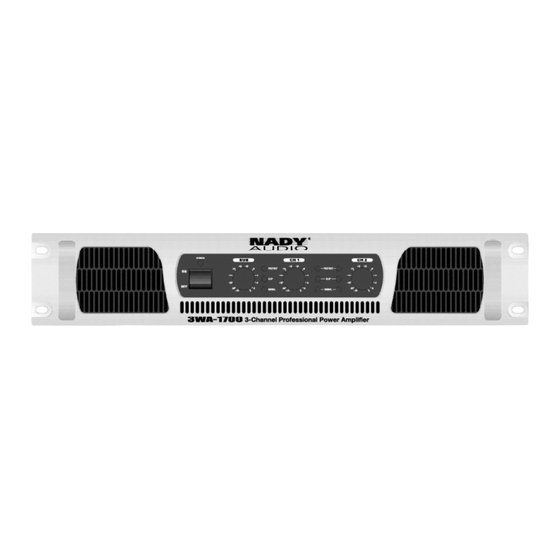

3-CHANNEL PROFESSIONAL POWER AMPLIFIER Congratulations on your choice of the NADY 3WA-1700 power amplifier — you have purchased one of the finest power amplifiers on the market today. This unit was developed using the expertise of professional sound engineers and working musicians. You will find that your new 3WA-1700 amplifier has superior performance and greater flexibility than any other amplifier in its price range. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using this electronic device, basic precautions should always be taken, including the following: Read all instructions before using the product. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool, etc.). -
Page 4: Controls And Connections
C O N T R O L S A N D C O N N E C T I O N S FRONT PANEL 1. POWER SWITCH To turn the unit ON or OFF, press the upper or lower portion of this button. -
Page 5: Back Panel
C O N T R O L S A N D C O N N E C T I O N S BACK PANEL 8. BALANCED INPUT CONNECTORS (1/4" TRS & XLR) These balanced 1/4” (6.3mm) TRS (Tip/Ring/Sleeve) phone jacks and balanced XLR jacks are designed to accept line level balanced or unbalanced signals for each channel. -
Page 6: Installation
(Note: Nady Systems is not responsible for shipping damage. If the unit is damaged, do not return to us, but notify your dealer and the shipping company immediately to make a claim. Such claims must be made by the consignee in a timely manner.) CONTENTS •... -
Page 7: Speaker Connections
The following instructions describe the most common ways to install your amplifier into a sound system. Turn off the amplifier power switch before making any connections. (Note: Nady Systems assumes no liability for damaged speakers resulting from improper wiring, careless amplifier use, or over powering.) •... - Page 8 S P E A K E R C O N N E C T I O N S • Mains & Monitor Mode 1. Input main Left and Right signals from your crossover into Channels 1 and 2. 2. Input Monitor or Aux full-range signal from your mixer into the Subwoofer input. 3.
-
Page 9: Output Section
1. OUTPUT SECTION Power Output (all channels driven simultaneously, 1% THD) Channel 1 & 2 ...300W RMS per side @ 8Ω Subwoofer ...550W RMS @ 8Ω Ch 1 & 2 “Touch-proof” binding posts (banana jack) outputs Damping Factor (20Hz – 400Hz @ 8Ω)...> 250 Slew Rate (1KHz @ 2 x 4Ω) ...6.5V / uS Frequency Response ...10Hz ~ 50KHz (- 2dB) THD + Noise...0.04%... -
Page 10: Notes
N OT E S... - Page 11 DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF AS IT CAN BE DANGEROUS AND WILL ALSO VOID THE WARRANTY. NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • nady.com...
