O W N E R ' S M A N U A L
SMA-2130
STEREO MONITOR AMPLIFIER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMA-2130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nady Audio SMA-2130

Summary of Contents for Nady Audio SMA-2130

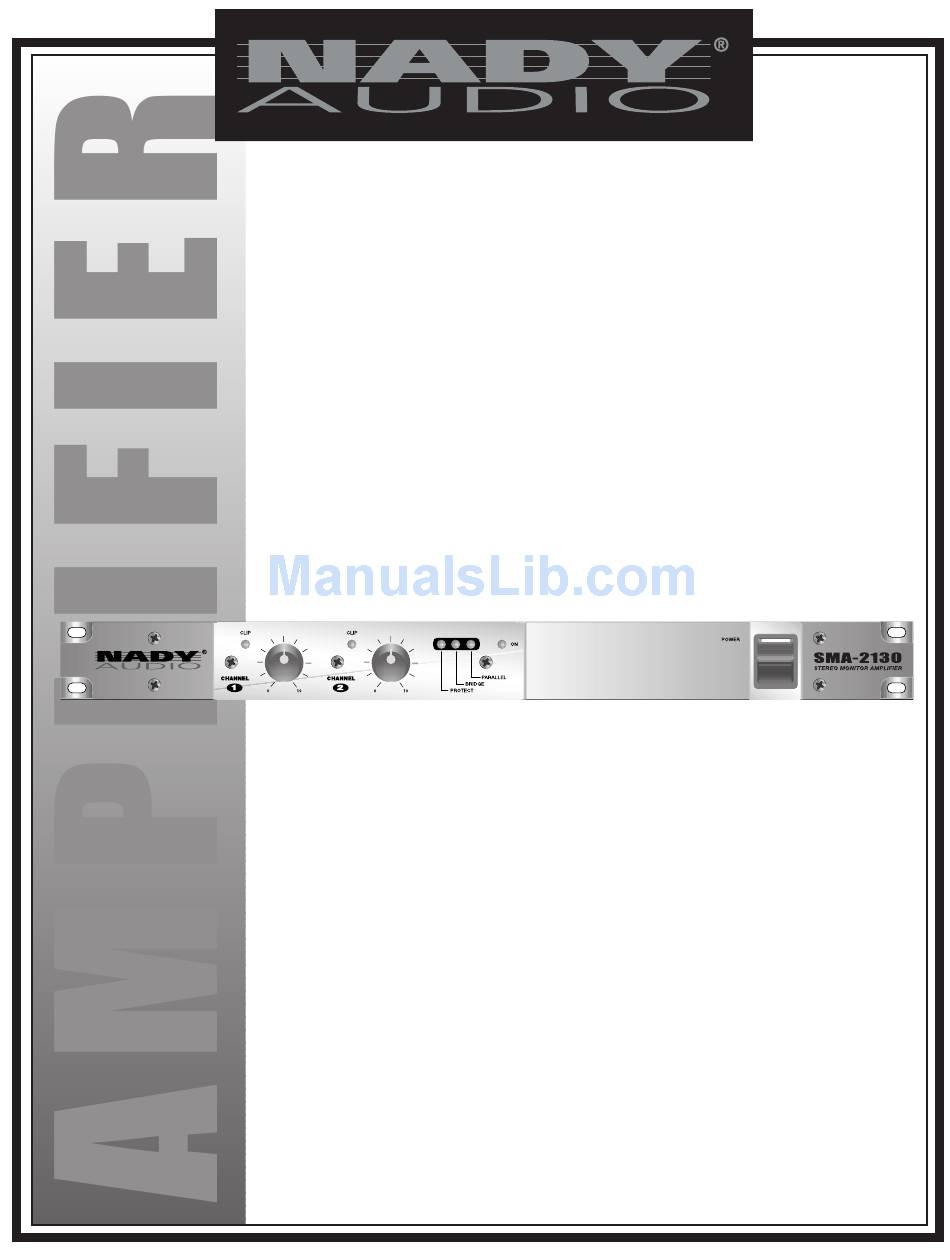

  • Page 1 O W N E R ’ S M A N U A L SMA-2130 STEREO MONITOR AMPLIFIER...

  • Page 2: Table Of Contents

    You will find that your new NADY AUDIO SMA-2130 has superior performance and greater flexibility than any other amplifiers in its price range. Please read this manual carefully to get the most out of your new unit.

  • Page 3: Important Safety Instructions

    ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR IMPORTANT SAFETY INSTRUCTIONS When using this electronic device, basic precautions should always be taken, including the following: Read all instructions before using the product. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool, etc.).

  • Page 4: Power Connection

    RACK MOUNTING The SMA-2130 fits into one standard 19” rack unit of space (1 3/4”). Parts of the unit can become very warm during use. This is normal during operation. Care should be taken to ensure that there is enough space around the unit for cooling (at least 12”...

  • Page 5: Front Control And Connectors

    F R O N T C O N T R O L S A N D C O N N E C T I O N S 1. POWER SWITCH To turn the unit ON or OFF, press the upper or lower portion of this button.

  • Page 6: Rear Control And Connectors

    R E A R C O N T R O L S A N D C O N N E C T I O N S (12) (13) Bottom Panel 7. BALANCED INPUT CONNECTORS (1/4" TRS & XLR) These 1/4" (6.3mm) TRS (Tip/Ring/Sleeve) phone jacks and XLR jacks are compatible with balanced inputs and are wired as Tip/Pin 3 = (-), Ring/Pin 2 = (+), and Sleeve/Pin 1 = Ground.

  • Page 7: Electrical Specifications

    POWER SPECIFICATIONS EIA Output Power RMS 1kHz, THD maximum 1% Bridged Less than 8 Bridged or 4 Per Side is not recommended. ELECTRICAL SPECIFICATIONS INPUT SENSITIVITY ...0.77V/26dB/1.4V INPUT IMPEDANCE ...20K FREQUENCY RESPONSE ...10Hz~50KHz +/-3dB MAXIMUM INPUT LEVEL...21dB/6V DAMPING FACTOR (f=1KHz 8 ) ...>150 SLEW RATE ...35V/uS DISTORTION ...<0.04% S/N RATIO A-Weighted RMS...>80dB...
  • Page 8 DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF AS IT CAN BE DANGEROUS AND WILL ALSO VOID THE WARRANTY. NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com...
