DMP-2
Dual Microphone Pre-Amplifier

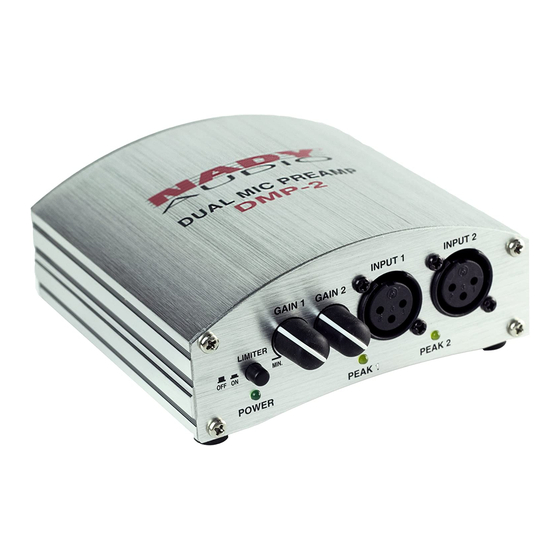

Thanks for purchasing the Nady DMP-
2 Dual Microphone Pre-Amplifier. The
DMP-2 is a dual channel mic preamp which
works with any professional microphone
— offering all the features of two preamps
in a small convenient package. It is perfect
for all live sound and digital and analog
recording applications.

FEATURES

• Unsurpassed audio with excellent stereo imaging, ultra low noise, superb transient re-
sponse and transparent, distortion-free sound — performance substantially better than that
of stock console preamps
• Includes XLR I/O jacks, Power OFF/ON/+48V Phantom Power 3-way switch, selectable
integrated limiter, dual Gain controls, Power ON and dual Peak LED indicators
• Rugged lightweight all-metal enclosure designed for maximum long life and optimum
portability — powered by 9V Alkaline or NiMH battery.
CONNECTIONS & OPERATIONS
(2)
(3)
(1) BATTERY COMPARTMENT — Uses single 9V alkaline battery
(2) POWER SWITCH — 3-way switch to select (1) OFF, (2) ON (w/no phantom power),
and (3) ON (w/+48V phantom power)
(3) XLR OUTPUTS — Connect to mixer or amp input
(4) POWER LED — Lights when unit is ON

USER GUIDE

(8)
(1) (4)
(7)
(5) (6)
