Nady Audio TMP-2 Owner's Manual

Dual channel tube mic preamplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

O W N E R ' S M A N U A L

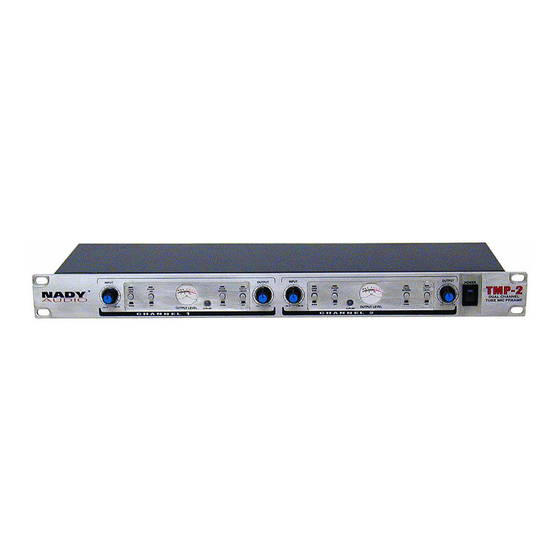

TMP-2
DUAL CHANNEL TUBE MIC PREAMPLIFIER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TMP-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nady Audio TMP-2

Summary of Contents for Nady Audio TMP-2

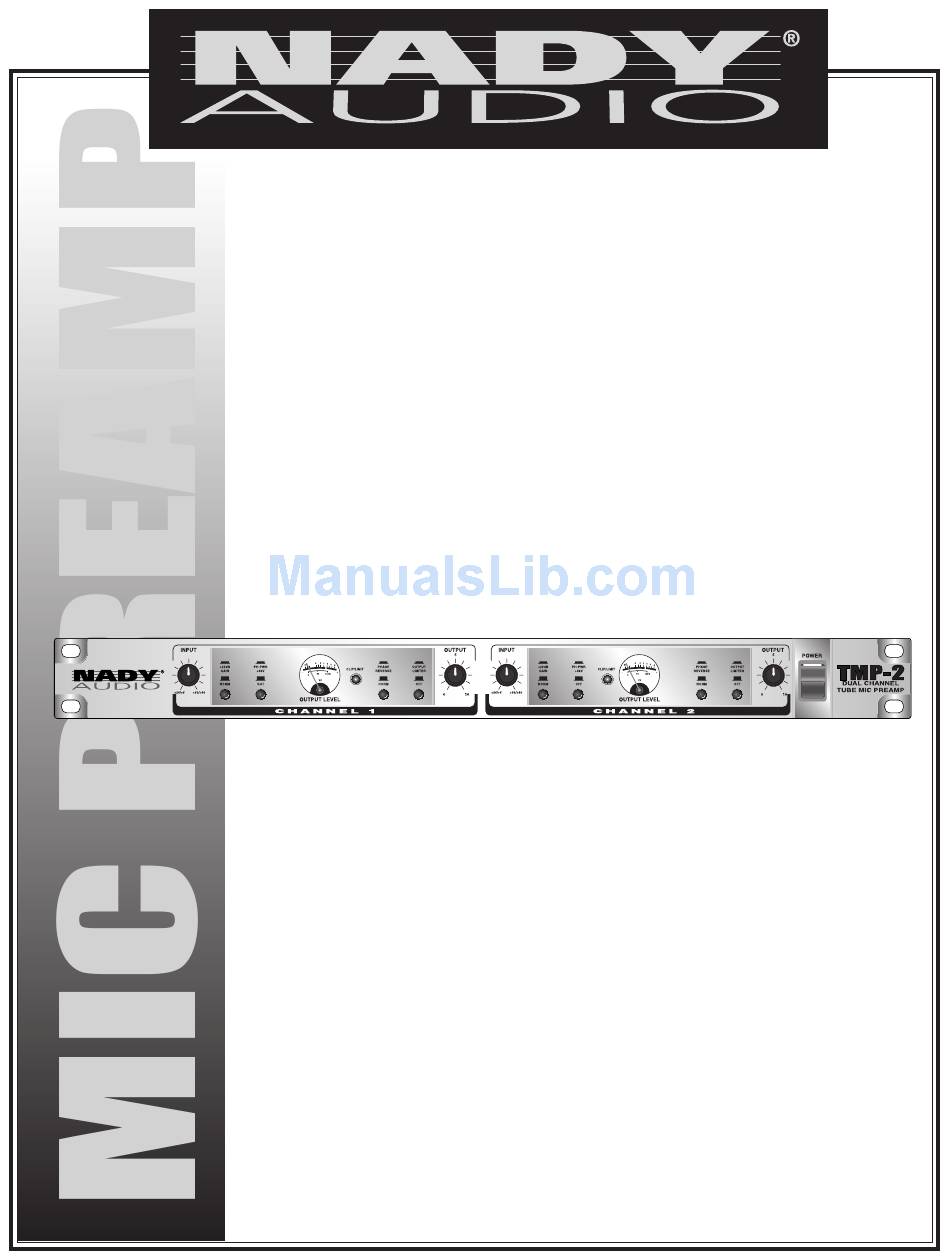

  • Page 1 O W N E R ’ S M A N U A L TMP-2 DUAL CHANNEL TUBE MIC PREAMPLIFIER...

  • Page 2: Table Of Contents

    You will find that your new NADY AUDIO TMP-2 has superior performance and greater flexibility than any other tube mic preamps in its price range. Please read this manual carefully to get the most out of your new unit.

  • Page 3: Warning

    ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR IMPORTANT SAFETY INSTRUCTIONS When using this electronic device, basic precautions should always be taken, including the following: Read all instructions before using the product. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool, etc.).

  • Page 4: Installation

    RACK MOUNTING The TMP-2 fits into one standard 19" rack unit of space (1 3/4"). Parts of the unit can become very warm during use. This is normal during operation. Care should be taken to ensure that there is enough space around the unit for cooling (at least 12” or 30cm). Do not place the TMP-2 on high temperature devices such as power amplifiers, etc., or the unit may overheat in operation.

  • Page 5: Controls And Connectors

    (5) OUTPUT LEVEL VU METER The output level of the TMP-2 can be monitored using the analog OUTPUT LEVEL VU METER. The meter’s 0dB marking represents +12dB at the XLR output and +6dBu at the 1/4" output.

  • Page 6: Rear Panel

    CONTROLS AND CONNECTORS REAR PANEL (10) (11) Rear Panel (10) AC POWER CORD IEC CONNECTOR WITH INTEGRATED FUSE HOLDER This standard IEC power cord receptacle is used to connect the AC power to your unit. It features a built-in fuse holder for a 5X20mm, 0.5A/250V slow-blow fuse.

  • Page 7: Specifications

    Input Impedance: ... 500K Output Impedance: ... 360 Max Gain: ... 43dB Max Input Level: ... +8dBu Max Output Level: ... +18dBu Frequency Response: ... 10Hz-100KHz +/-3dB Total Harmonic Distortion (THD) + Noise: ... 0.4% S/N Ratio: ... -94dB Noise Floor: ... 40uV Phantom Power: ...
  • Page 8 DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF AS IT CAN BE DANGEROUS AND WILL ALSO VOID THE WARRANTY. NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com...
