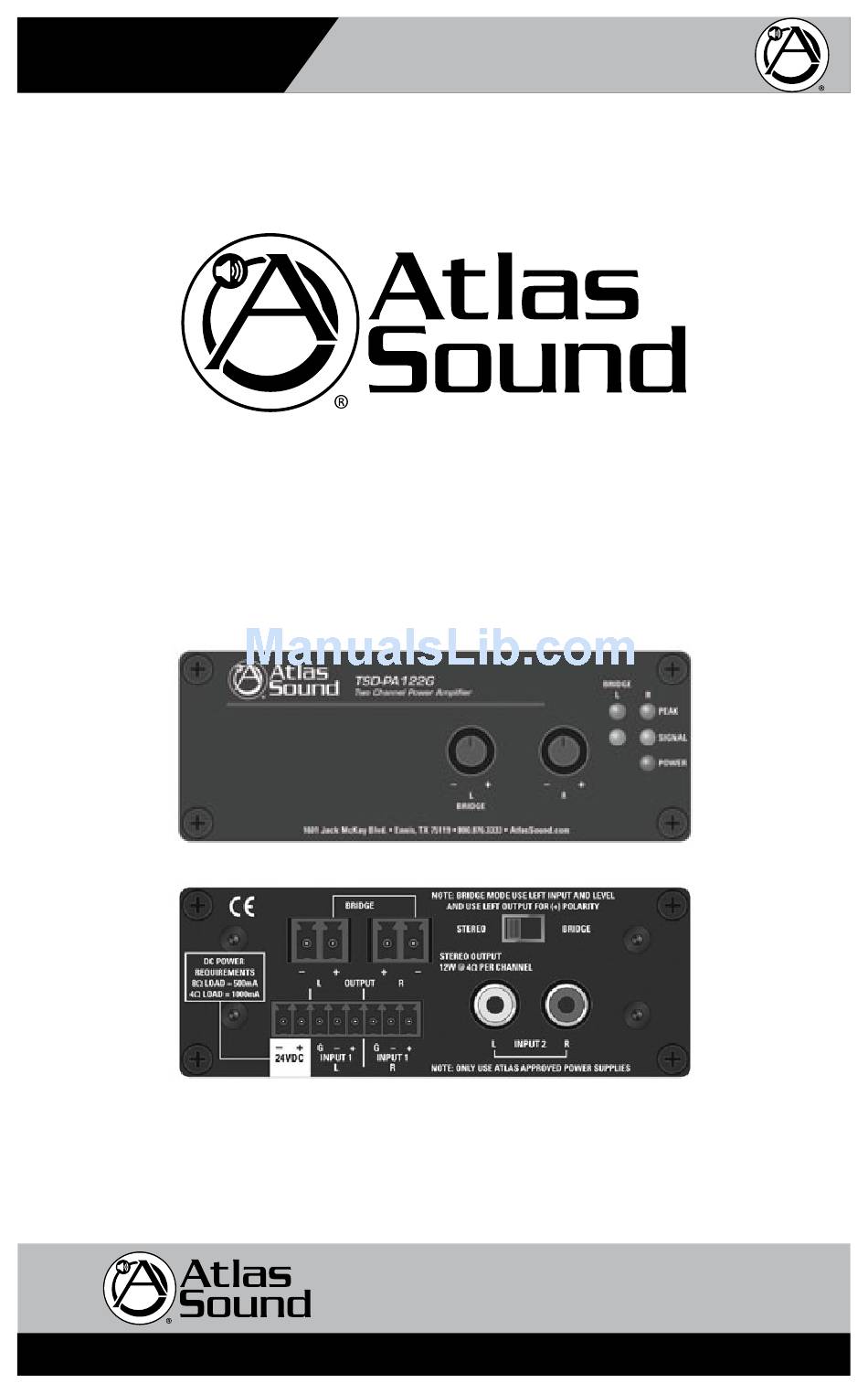

- Page 1 TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier TSD-PA122G 2x12W Global Audio Amplifier 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.
- Page 2 The TSD-PA122G is part of a full line of Atlas Sound Time Saving Devices. These compact (1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the easiest, most efficient, and cost-effective way.
-
Page 3: Front Panel Description
TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Front Panel Description 1. Input Level Controls L & R - Adjusts the gain of the source audio signal of both the left and right channels. Turn clockwise to increase the signal level and counter-clockwise to decrease the level. -
Page 4: Rear Panel Description
TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position c onnector for an external 24VDC power supply (sold separately). Because of the TSDs low power consumption, a single external power supply may power more than one TSD. Please refer to the specifications... - Page 5 TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier 6. Cable Management Retainer Points - Use the rear panel screws for connecting the included cable retainers. Each TSD comes with two cable retainers for simplified cable management. Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with included security covers to prevent potentiometer damage or unwanted changes.
-
Page 6: Block Diagram
TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Block Diagram RCA INPUT 2 BRIDGE SWITCH PEAK R IN – R CH LEVEL R OUT 12W 4 ohm STEREO/BRIDGE SW CLASS D BRIDGE OUT 24W 8ohm SIGNAL BRIDGE IN L IN –... - Page 7 TSD-PA122G Owner’s Manual 2x12W Global Audio Amplifier Controls Level Control Qty 2, Removable Knob with Security Cover Operation Mode Switch Stereo or Bridge Indicators Input Signal Green, 25mV On Threshold, Qty 2 Peak Red, -3dB Before Clip, Qty 2 Power Blue Electrical Frequency Response 20Hz - 20kHz (±3dB) THD 1% @ 1kHz Signal to Noise 80dBV Mounting Velcro™...
-
Page 8: Limited Warranty
SOUND brand products except as follows: one year on electronics and control systems; one year on replacement parts; and one year on Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
