Atlas PA40G Owner's Manual

Commercial amplifiers
Hide thumbs

Advertisement

Quick Links

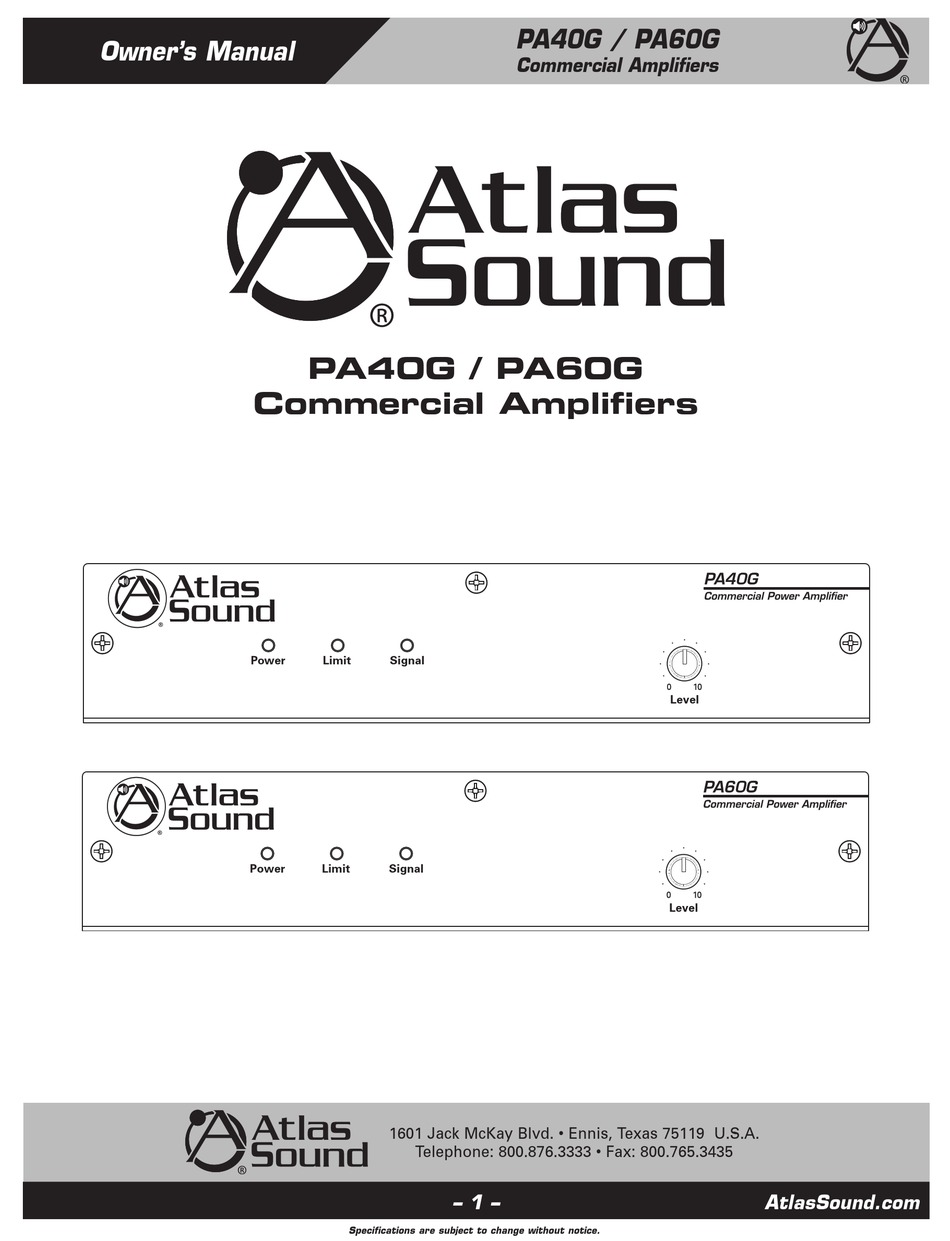

Owner's Manual
PA40G Front Silkscreen Artwork
Commercial Amplifiers
PA60G Front Silkscreen Artwork
Power
1601 Jack McKay Blvd
Ennis, TX 75119
800.876.3333
AtlasSound.com
Balanced Input
Power
Summed Inputs
1601 Jack McKay Blvd
Ennis, TX 75119
800.876.3333
AtlasSound.com
Balanced Input
Summed Inputs
PA40G / PA60G
Limit
Signal
Left In
Right In
Limit
Signal
Left In
Right In
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
Specifications are subject to change without notice.
PA40G / PA60G
Commercial Amplifiers
Level
40 Watts
70.7V/100V
Speaker Out
100V - 240V 50Hz/60Hz 750mA
Level
60 Watts
70.7V/100V
Speaker Out
100V - 240V 50Hz/60Hz 1A
AtlasSound.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PA40G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlas PA40G

Summary of Contents for Atlas PA40G

  • Page 1 PA40G / PA60G Owner’s Manual Commercial Amplifiers PA40G Front Silkscreen Artwork PA40G / PA60G Commercial Amplifiers PA60G Front Silkscreen Artwork Power Limit Signal Level 1601 Jack McKay Blvd Ennis, TX 75119 800.876.3333 AtlasSound.com Left In 40 Watts 70.7V/100V Balanced Input...

  • Page 2: Table Of Contents

    Applications ............................5 Front Panel Description ........................... 6 Rear Panel Description ..........................7 Wiring the PA40G / PA60G ........................7 Optional Level Control Security Cover ....................8 Optional Rack Mount Kit ......................... 8 Limit LED & Load Considerations ......................8 Specifications ............................

  • Page 3: Important Safety Instructions

    PA40G / PA60G Owner’s Manual Commercial Amplifiers Important Safety Instructions The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage “ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 4 Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound. Do not to attempt to continue operation with the product as this may cause fire or electric shock: •...

  • Page 5: Introduction

    • Optional Rack Mount Kit Applications The Atlas Sound PA40G and PA60G are the perfect choice for distributed business paging, background music (BGM) systems, and small to medium speech privacy systems. 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.

  • Page 6: Front Panel

    100V - 240V 50Hz/60Hz 1A The LIMIT LED will illuminate when the PA40G/PA60G is in a clipping condition, caused by excessively high input levels or a GAIN control is turned up too high. An occasional flash is OK. Check that the proper signal level is being fed into the inputs and/or turn the input gain down until the LED is no longer illuminated.

  • Page 7: Wiring The Pa40G / Pa60G

    Balanced line level signals connect to the (+), (–), and (G) terminals. If you are connecting an unbalanced line level input, tie (short) the (G) and (–) terminals together. If transformer isolation is required for Input 1, contact Atlas Sound for details. Note: The Balanced Line Input and the Unbalanced RCA Inputs are electrically isolated from each other and can be used at the same time.

  • Page 8: Limit Led & Load Considerations

    Security Cover Rack Mount Kit Options The PA40G & PA60G can be rack mounted as a single unit or with two units together. To do so a PA702RMK Rack Mount Kit needs to be purchased from Atlas Sound. Limit LED and Load Consideration If the Red Limit LED illuminates, the amplifier has sensed an improper load or the input signal is too high, triggering the protection circuitry.
  • Page 9 Measuring Speaker Loads Below is an Impedance load chart for the PA40G and PA60G. Measure the load impedance prior to connecting the load to the amplifier. The enclosed load chart will provide the information to determine if the load or speaker system impedance is too low for the amplifier’s rating.

  • Page 10: Specifications

    8.5" x 1.75" x 7.81" (216mm x 45mm x 198mm) Weight PA40G: Net Weight = 2.9lbs. (1.32kg), Shipping Weight = 3.1lbs. (1.4kg) PA60G: Net Weight = 2.9lbs. (1.32kg), Shipping Weight = 3.1lbs. (1.4kg) Note: Average power consumption is based on one third (1/3) of the maximum power rating, 50% duty cycle.
  • Page 11 PA40G / PA60G Owner’s Manual Commercial Amplifiers Notes: 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 11 – AtlasSound.com Specifications are subject to change without notice.

  • Page 12: Warranty

    A PARTICULAR PURPOSE. Atlas Sound does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specific legal rights and you may have other rights which vary from state to state.

This manual is also suitable for:

Pa60g
