OWNER'S MANUAL

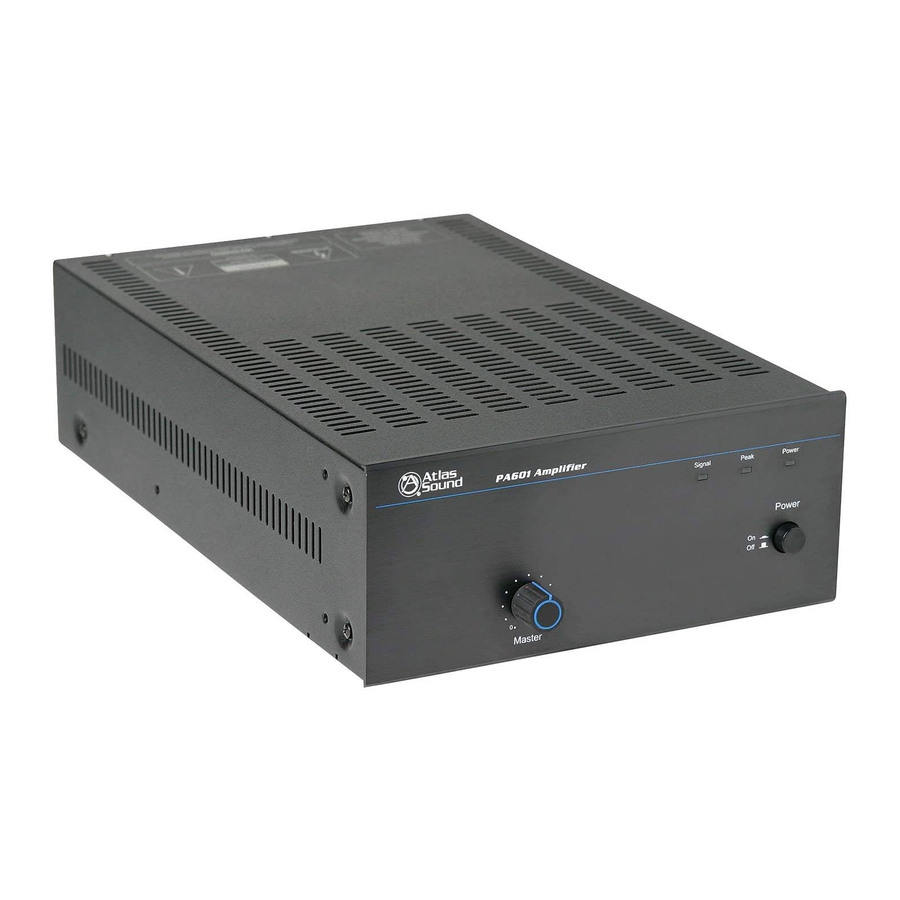

PA601 COMMERCIAL AMPLIFIER
Signal
Peak
Power
Power
On
Off
Master
PA601 Commercial Amplifi er
Specifications are subject to change without notice
AtlasSound.com
1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. •
TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435
©2006 ATLAS SOUND LP
Printed in U.S.A.
00106
ATS002264 RevA 01/06
PP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas PA601
Summary of Contents for Atlas PA601

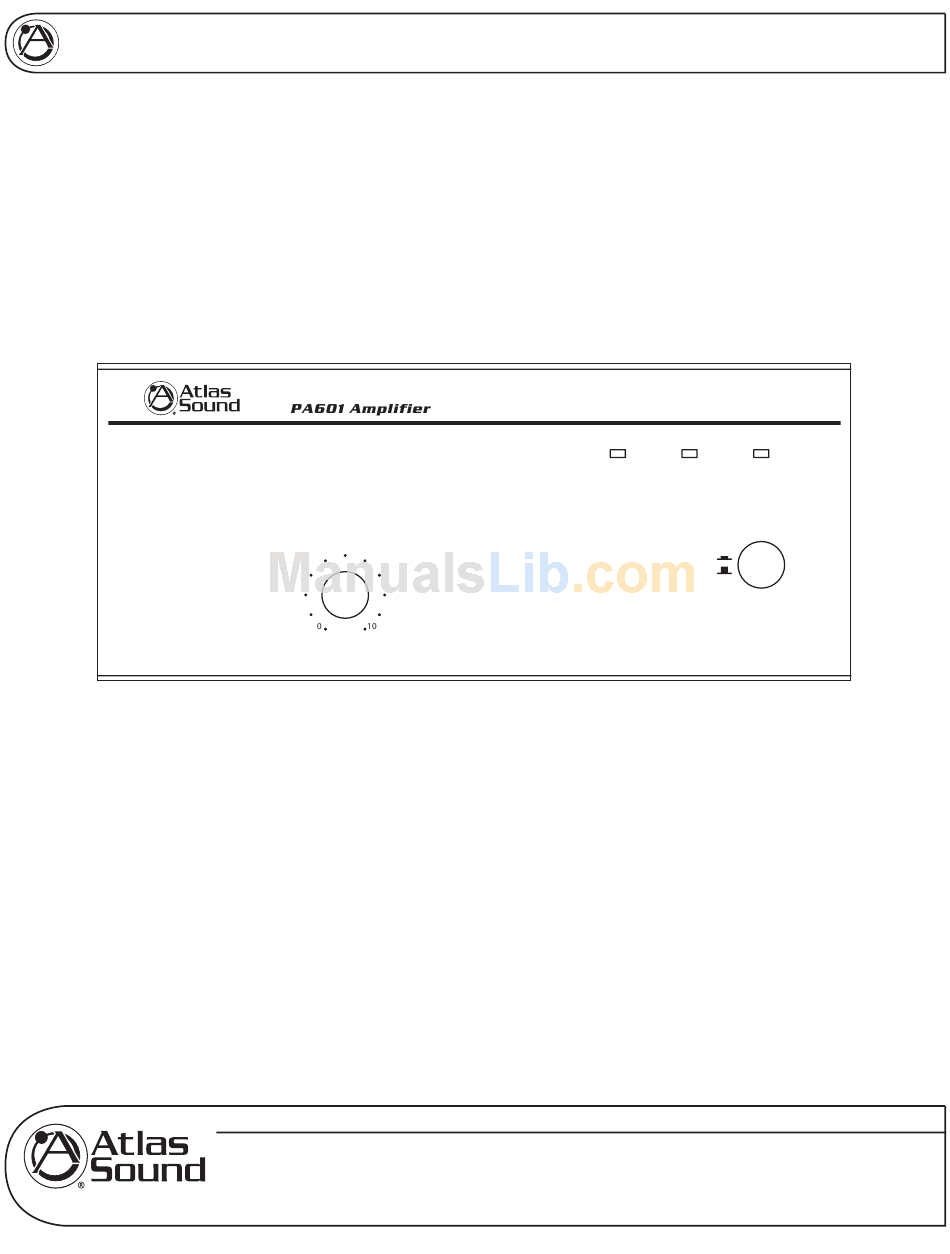

- Page 1 PA601 COMMERCIAL AMPLIFIER Signal Peak Power Power Master PA601 Commercial Amplifi er Specifications are subject to change without notice AtlasSound.com 1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435 ©2006 ATLAS SOUND LP Printed in U.S.A.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Instructions...………………………………….………………….2 Introduction, Features, and Applications...……………………...3 Safety Precautions...……………………...…………………...4 Front Panel Description...…………………………………..…….6 Rear Panel Description...…………………………………...7 Wiring the PA601 and Security Cover Option…………………………………………………………………...9 Rack Mount Options…………………………………………………………………………………………...10 Block Diagram…………………………………………………………………………………………………...11 Specifi cations...…………………………………….12 Warranty...……………………………………...16 SAFETY INSTRUCTIONS Please Read Carefully Before Installing Or Operating This Product... -
Page 3: Introduction, Features, And Applications
Small and compact, and engineered for reliability, the Atlas Sound PA601 will provide years of service and fl exibility in today’s background music and paging applications. -
Page 4: Safety Precautions
Should any of the following irregularities occur during use, immediately switch off the power, disconnect the power cord from the AC outlet and contact Atlas Sound. Do not to attempt to continue operation with the product as this may cause fi re or electric shock: •... - Page 5 fi re. • Contact Atlas Sound for instructions on cleaning the inside of the unit. Large accumulations of dust inside the unit may result in heat buildup and fi re.
-
Page 6: Front Panel Description
3. Peak LED Indicator The Peak LED will illuminate if the PA601 inputs are being over driven or when the input gain controls are turned up too high. Check that the proper signal level is being fed into the inputs and/or turn the input gain down until the LED is turned off. -
Page 7: Rear Panel Description
PA601 COMMERCIAL AMPLIFIER REAR PANEL DESCRIPTION 120V/230V-240V FUSE 0.8A/250V FOR 230V~240V 1.5A/250V FOR 120V 6. Balanced Input Balanced line level signals connect to the (+), (–), and (G) terminals. Note if you are connecting an unbalanced line level input, tie (short) the (G) and (–) terminals together with an insulated jumper wire. - Page 8 PA601 COMMERCIAL AMPLIFIER 120V/230V-240V FUSE 0.8A/250V FOR 230V~240V 1.5A/250V FOR 120V 13. AC Mains Voltage Select Match the voltage selection to the required voltage. 14. Ground Terminal Connect this terminal to electrical ground as required by local codes. 1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. •...
-
Page 9: Wiring The Pa601 And Security Cover Option
In order to prevent unauthorized operation of the PA601, optional security covers are available which take the place of the front panel knob. After the PA601 has been installed and is operating as desired, grasp the front panel knob and pull straight out from the front panel. Replace the knob with a security cover, Atlas part number AAVCC-5. -
Page 10: Rack Mounting Option
PA601 COMMERCIAL AMPLIFIER RACK MOUNTING OPTION Rack mount ears are available through Atlas for installing the PA601 into equipment racks. If multiple units are being rack mounted, install Atlas 1RU (SVP19-1-052) vented panels between amplifiers, in order to aid cooling. -
Page 11: Block Diagram
PA601 COMMERCIAL AMPLIFIER BLOCK DIAGRAM BALANCED INPUT LINE IN UNBALANCED LINE OUT 1.6A/250VFOR230V 3.15A/250VFOR115V AC115V/230V 60Hz /50Hz FUSE CHASSIS GROUND AC IN 1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • ©2006 ATLAS SOUND LP LOUDNESS MIX BUS AMP POWER SW... -
Page 12: Specifi Cations
PA601 COMMERCIAL AMPLIFIER SPECIFICATIONS POWER OUTPUT Max. Average Power @ 50Hz-20kHz with .5% THD (10-80kHz fi lter) 8Ω, 1kHz, 0.5% THD 60W RMS TRANSFORMER OUTPUTS 4Ω 60W RMS 60W RMS 100V 60W RMS FREQUENCY RESPONSE 50Hz-20kHz THD+N .5% or less, at 1kHz, rated output .1% or less, at 1kHz, 5W output... - Page 13 OWNER'S MANUAL PA601 COMMERCIAL AMPLIFIER NOTES: Specifications are subject to change without notice AtlasSound.com 1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435 ©2006 ATLAS SOUND LP Printed in U.S.A. 00106 ATS002264 RevA 01/06...
- Page 14 OWNER'S MANUAL PA601 COMMERCIAL AMPLIFIER NOTES: Specifications are subject to change without notice AtlasSound.com 1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435 ©2006 ATLAS SOUND LP Printed in U.S.A. 00106 ATS002264 RevA 01/06...
- Page 15 OWNER'S MANUAL PA601 COMMERCIAL AMPLIFIER NOTES: Specifications are subject to change without notice AtlasSound.com 1601 JACK MCKAY BOULEVARD ENNIS, TEXAS 75119 U.S.A. • TELEPHONE: (800) 876-3333 • FAX: (800) 765-3435 ©2006 ATLAS SOUND LP Printed in U.S.A. 00106 ATS002264 RevA 01/06...
-
Page 16: Warranty
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Atlas Sound does not assume, or does it authorize any other person to assume or extend on its behalf, any other warranty, obligation, or liability. This warranty gives you specifi c legal rights and you may have other rights which vary from state to state.
