Atlas TSD-PA10VG Owner's Manual

Mono 10w commercial power amplifier
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

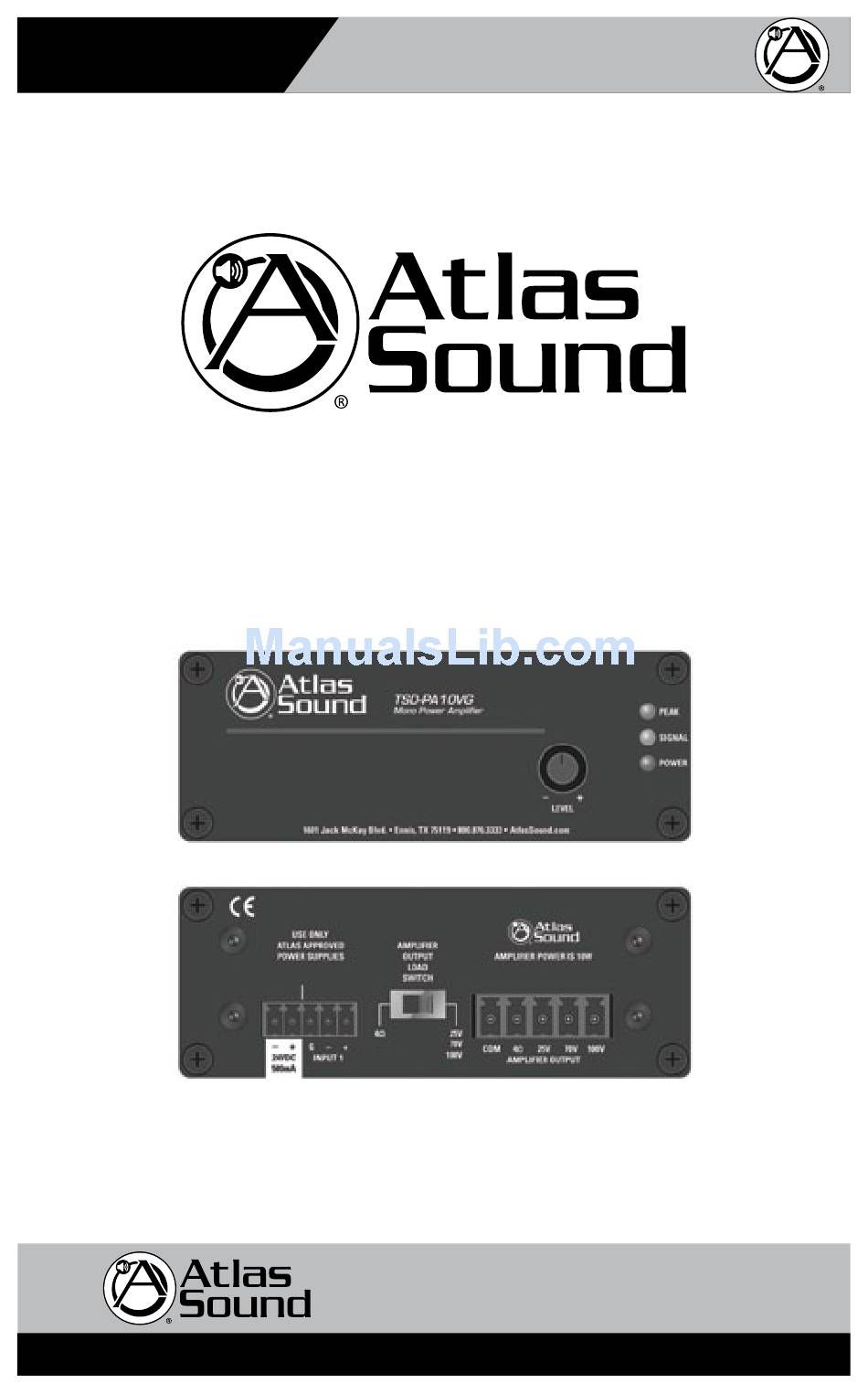

TSD-PA10VG
Owner's Manual
Mono Commercial Power Amplifier
TSD-PA10VG
Mono 10W Power Amplifier
1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A.
Telephone: 800.876.3333 • Fax: 800.765.3435
– 1 –
AtlasSound.com
Specifications are subject to change without notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSD-PA10VG and is the answer not in the manual?

Questions and answers

Related Manuals for Atlas TSD-PA10VG

Summary of Contents for Atlas TSD-PA10VG

  • Page 1 TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier TSD-PA10VG Mono 10W Power Amplifier 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.

  • Page 2: Audio Applications

    Mono Commercial Power Amplifier Description The Atlas Sound TSD-PA10VG is a single channel global amplifier that can deliver up to 10W into a 4Ω, 8Ω, 25V, 70V, or 100V speaker load with a balanced mono phoenix style input. The Atlas PA10VG only draws 2.8W when in idle and is over 70% efficient to meet most energy power consumption...

  • Page 3: Front Panel Description

    TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Front Panel Description 1. Input Level Control - Determines the output level at the loudspeakers on the PA10VG. Turn clockwise to increase the signal level and counter-clockwise to decrease the level. Note: The Input Level Control knob can be removed and replaced with a supplied security cover to prevent unauthorized adjustment.

  • Page 4: Rear Panel Description

    TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position connector for an external 24VDC power supply (sold separately).
  • Page 5 TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with included security covers to prevent potentiometer damage or unwanted changes. • Knob Installation - Turn the potentiometer shaft fully counter-clockwise. Align the knob indicator to the lowest setting on the panel and the potentiometer shaft slot. Carefully press the knob onto the potentiometer shaft.

  • Page 6: Block Diagram

    TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Block Diagram INPUT SIGNAL PEAK LEVEL AMP 10W 100V 4 ohm DC24V IN DC OUT OUTPUT SELECT SWITCH 4 ohm TO OT POWER LED Specifications Description Mono Commercial Power Amplifier Chassis Color Black Chassis Material Aluminum Power Output 5W @ 8Ω, 10W @ 4Ω, 10W @ 25V = 62Ω, 70V = 490Ω,...
  • Page 7 TSD-PA10VG Owner’s Manual Mono Commercial Power Amplifier Electrical Frequency Response 40Hz - 20kHz (±3dB) THD 0.5% @ 1kHz Signal to Noise 78dBV Mounting Velcro™ Industrial-Grade, Included Brackets Qty 2, Included TSD-RMK Optional 1 RU Rack Mount Panel (Supports 4 TSD Units) Cable Retainer Qty 2, Included Power Requirements Note: All Current and Watt data is based on AC power consumption using the TSD-PS24V2500mA Power Supply.

  • Page 8: Limited Warranty

    SOUND brand products except as follows: one year on electronics and control systems; one year on replacement parts; and one year on Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
