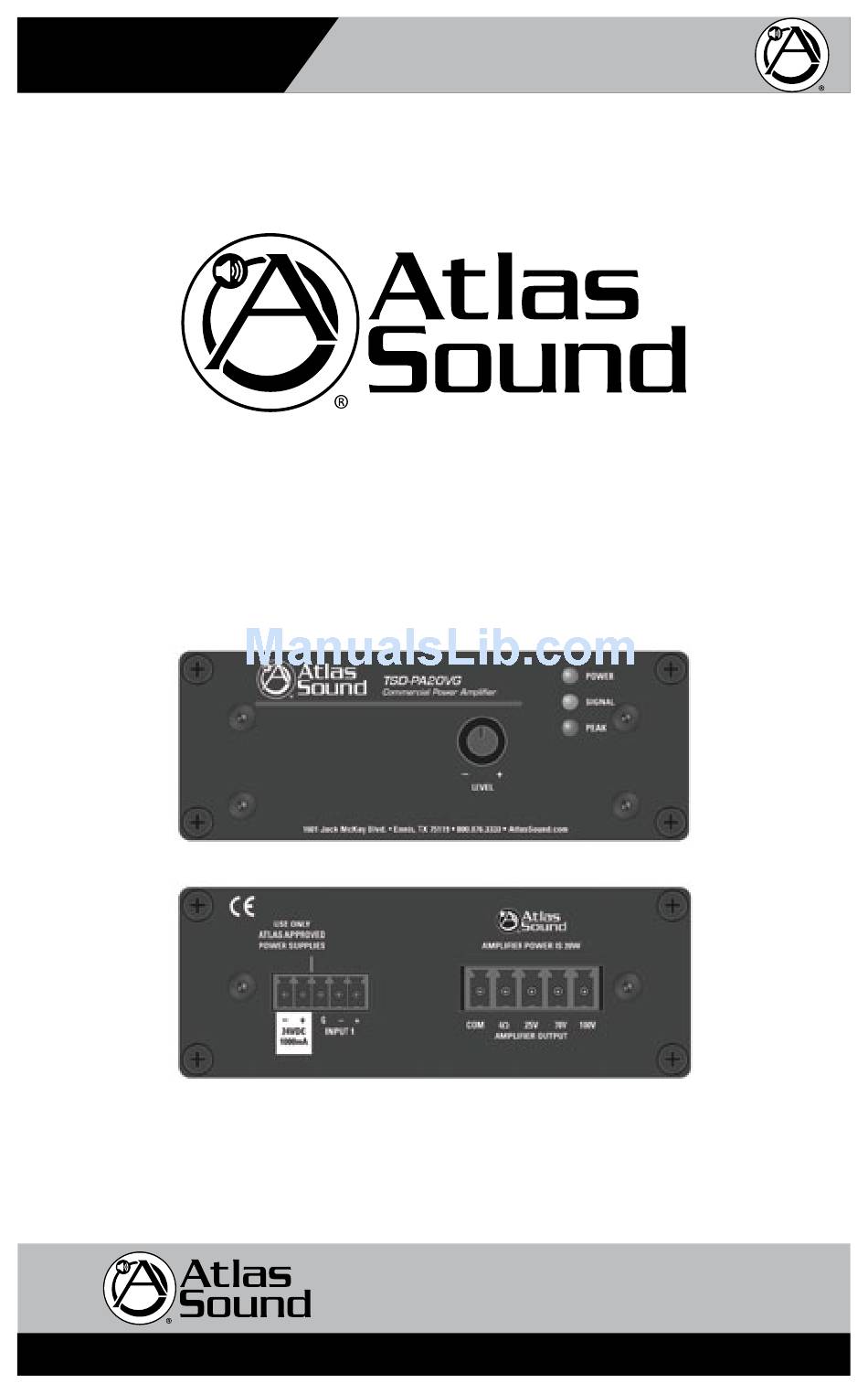

- Page 1 TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier TSD-PA20VG Mono 20W Power Amplifier 1601 Jack McKay Blvd. • Ennis, Texas 75119 U.S.A. Telephone: 800.876.3333 • Fax: 800.765.3435 – 1 – AtlasSound.com Specifications are subject to change without notice.
- Page 2 (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting. For sound masking applications the TSD-PA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line.
-
Page 3: Front Panel Description

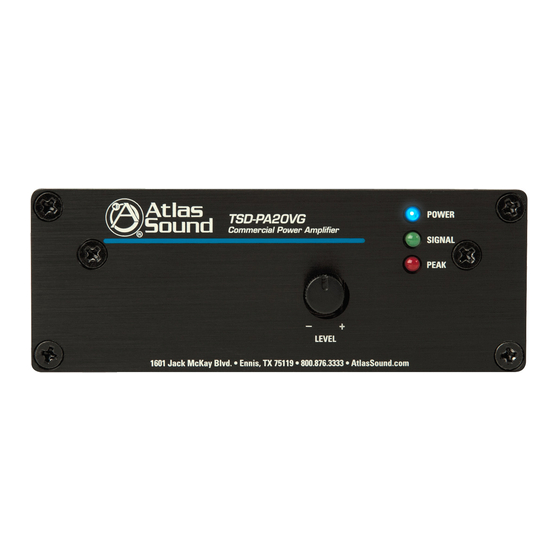

TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Front Panel Description 1. Input Level Control - Determines the output level at the loudspeakers on the PA20VG. Turn clockwise to increase the signal level and counter-clockwise to decrease the level. Note: The Input Level Control knob can be removed and replaced with a supplied security cover to prevent unauthorized adjustment. -
Page 4: Rear Panel Description
TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position c onnector for an external 24VDC power supply (sold separately). Because of the TSDs low power consumption, a single external power supply may power more than one TSD. - Page 5 TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with included security covers to prevent potentiometer damage or unwanted changes. • Knob Installation - Turn the potentiometer shaft fully counter-clockwise. Align the knob indicator to the lowest setting on the panel and the potentiometer shaft slot. Carefully press the knob onto the potentiometer shaft.
-
Page 6: Block Diagram
TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Block Diagram INPUT SIGNAL PEAK LEVEL AMP 20W 100V 4 ohm DC24V IN DC OUT POWER LED Specifications Description 1 x 20W Global Commercial Amplifier Chassis Color Black Chassis Material Aluminum Power Output 20W @ 4Ω, 10W @ 8Ω, 20W @ 25/70.7/100V Loads... - Page 7 TSD-PA20VG Owner’s Manual 1x20W Global Commercial Amplifier Electrical Frequency Response 40Hz - 20kHz (±3dB) THD 15% @ 1kHz Signal to Noise 78dB Mounting Velcro™ Industrial-Grade, Included Brackets Qty 2, Included TSD-RMK Optional 1 RU Rack Mount Panel (Supports 4 TSD Units) Cable Retainer Qty 2, Included Power Requirements Note: All Current and Watt data is based on AC power consumption using the TSD-PS24V2500mA Power Supply.
-
Page 8: Limited Warranty
Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
