Summary of Contents for Atlas TSD-PA252G

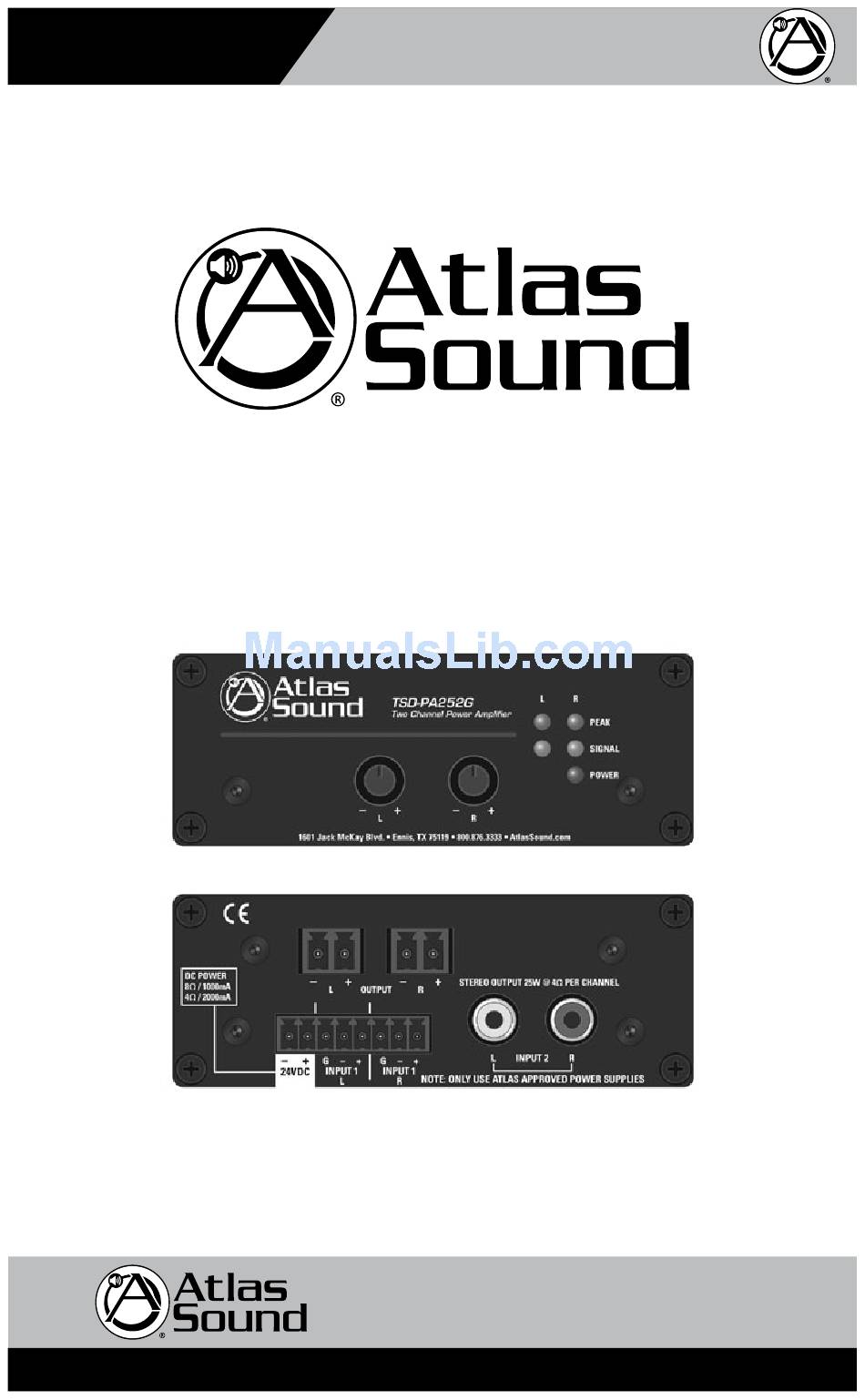

- Page 1 TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier TSD-PA252G 2x25W Global Audio Amplifier...
- Page 2 2x25W Global Audio Amplifier Description The Atlas Sound TSD-PA252G is a reliable, cost-e ective stereo ampli er perfectly suited for almost any general ampli cation requirement. The unit is especially suited for adding sound reinforcement to small projector systems as it provides ample power to drive up to four 8 loudspeakers in a classroom or boardroom application.
-
Page 3: Front Panel Description
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Front Panel Description 1. Input Level Controls L & R - Adjusts the gain of the source audio signal of both the left and right channels. Turn clockwise to increase the signal level and counter-clockwise to decrease the level. -
Page 4: Rear Panel Description
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Rear Panel Description TSD Input/Output connections are removable for easy system wiring. The connectors have a 3.5mm pitch between pins. 1. DC Power Input - Each TSD that requires DC power comes with a 2 position c onnector for an external 24VDC power supply (sold separately). Because of the TSDs low power consumption, a single external power supply may power more than one TSD. Please refer to the specifications... - Page 5 TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Knob and Security Cover All front panel level controls feature a removable knob that can be replaced with included security covers to prevent potentiometer damage or unwanted changes. Installation - Turn the potentiometer shaft fully counter-clockwise. Align the knob indicator • Knob to the lowest setting on the panel and the potentiometer shaft slot. Carefully press the knob onto the potentiometer shaft.
-
Page 6: Block Diagram
TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Block Diagram RCA INPUT 2 PEAK R IN – R CH LEVEL R OUT 12W 4 ohm CLASS D SIGNAL BRIDGE OUT 24W 8ohm BRIDGE IN L IN – L CH LEVEL L OUT... - Page 7 TSD-PA252G Owner’s Manual 2x25W Global Audio Amplifier Controls Qty 2, Removable Knob with Security Cover Level Control Indicators Input Signal Green, 25mV On Threshold, Qty 2 Peak Red, -3dB Before Clip, Qty 2 Power Blue Electrical Frequency Response 20Hz - 20kHz (±3dB) THD 0.2% @ 1kHz Signal to Noise 80dBV Mounting Velcro™ Industrial-Grade, Included...
-
Page 8: Limited Warranty
SOUND brand products except as follows: one year on electronics and control systems; one year on replacement parts; and one year on Musician Series stands and related accessories. Additionally, fuses and lamps carry no warranty. Atlas Sound will solely at its discretion, replace at no charge or repair free of charge defective parts or products when the product has been applied and used in accordance with our published operation and installation instructions.
