Summary of Contents for AUSTRALIAN MONITOR MX61

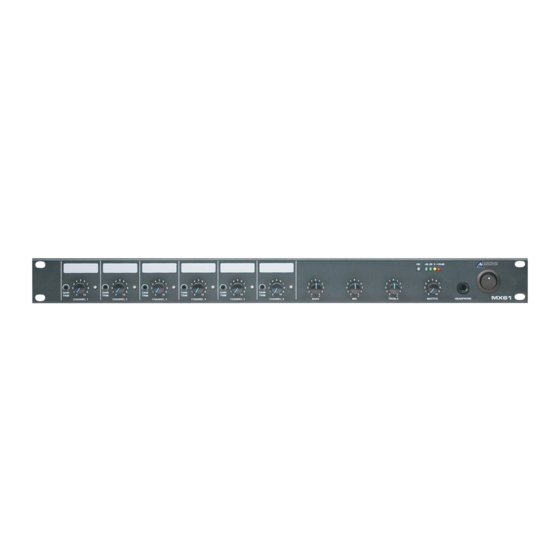

- Page 1 MX61 6 CHANNEL MIC/LINE MIXER INSTALLATION AND OPERATION MANUAL...
-
Page 2: Important Safety Information
Precautions should be taken so that the Australian Monitor Inc is not responsible for damage to means of grounding of a piece of equipment is not defeated. loudspeakers for any reason. -
Page 3: Table Of Contents
INTRODUCTION AND CONTENTS The MX61 is a 6 channel audio mixer that operates from 110/230-240 INTRODUCTION VAC @ 50/60 Hz or 24 VDC via an external 24VDC supply. FRONT PANEL The MX61 offers high quality audio performance & a wide array of features in a standard 1 RU size. -
Page 4: Front Panel
LED will always be on. OUTPUT TONE CONTROLS The output has a 3 band EQ. Bass – +/-12dB 100Hz shelving Mid – +/-12dB 1.6kHz, Q=1.4 Treble – +/-12dB 10kHz shelving PAGE 4 MX61 INSTALLATION & OPERATION MANUAL... -
Page 5: Rear Panel
XLR input is suitable for use with a balanced line level signal. NOTE: Both MIC/LINE switches must be in the same position for correct operation of the balanced input. NOTE: The MIC/LINE switches only affect the XLR input. PAGE 5 MX61 INSTALLATION & OPERATION MANUAL... -
Page 6: Internal Adjustments
INTERNAL ADJUSTMENTS CHANNEL 1 ROUTING OPTIONAL MODULES If channel 1 is being used as a priority The MX61 can have installed: input it can be routed so that the master - a VCA module volume does not affect channel 1. -
Page 7: Installation & Troubleshooting
Volume turned down Check volume controls Tones and/or VCA control does not work Module not installed Purchase optional modules Condenser microphone does not work Phantom power not switched on Switch on phantom power PAGE 7 MX61 INSTALLATION & OPERATION MANUAL... -
Page 8: Basic Setup & Operation
0dBu. If in doubt, set it to maximum. When the MX61 was shipped to you from the factory, it was set up in a particular way. In the following procedure it is essential that you are TEST THE INPUT LEVELS starting from these initial settings. -
Page 9: Dimensions
DIMENSIONS PAGE 9 MX61 INSTALLATION & OPERATION MANUAL... -
Page 10: Block Diagram
BLOCK DIAGRAM PAGE 10 MX61 INSTALLATION & OPERATION MANUAL... -
Page 11: Specifications
+21dBu PHANTOM POWER 15V DC OUTPUTS Nominal Level 0dBu into 1kohm MASTER OUT Imp 100ohm MONO HEADPHONE OUT Nom -6dB into 200ohm Imp 10ohm MONO REC OUT Nom -12dB into 10kohm Imp 10kohm PAGE 11 MX61 INSTALLATION & OPERATION MANUAL... - Page 12 AUSTRALIA AND NEW ZEALAND www.australianmonitor.com.au SYDNEY MELBOURNE BRISBANE ADELAIDE PERTH AUCKLAND (NSW & ACT SALES) (VIC & TAS SALES) (QLD SALES) (SA & NT SALES) (WA SALES) (NZ SALES) 149 Beaconsfield 22/277 42 Commercial Road 31 Walsh Street 299 Fitzgerald Street Unit B, 11 Piermark Street Silverwater Middleborough Road...
