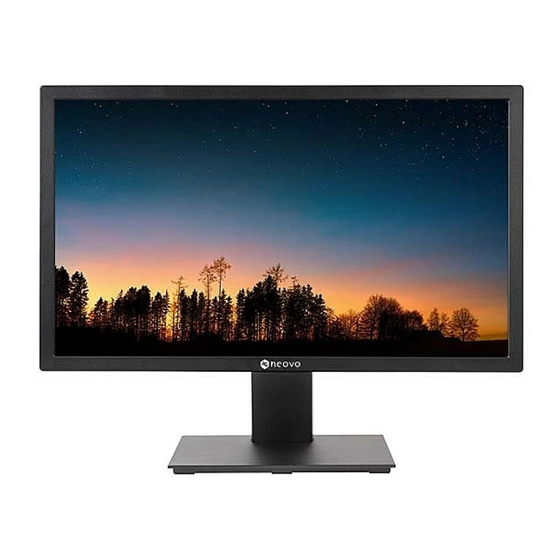

- Page 1 LW-2202 & LW-2402 LCD Monitor User Manual www.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) ..............3 WEEE ................................4 PRECAUTIONS Notice ................................5 Cautions When Setting Up ........................... 6 Cautions When Using ........................... 6 Cleaning and Maintenance ........................... 7 Notice for the LCD Display ........................... 7 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents .......................... -
Page 3: Safety Information
Safety Information SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Weee
SAFETY INFORMATION WEEE Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 5: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 6: Cautions When Setting Up
Users who have already mounted the display on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience. -
Page 7: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD display yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 8: Chapter 1: Product Description
LCD Display LW-2202 LW-2402 Base Stand Quick Start Guide LW-2202 & LW-2402 Quick Start Guide LW-2202/LW-2402 LCD Monitor LW-2202/LW-2402 Eprel registration number: 1144484/1144487 LW-2202 & LW-2402 Quick Start Guide LW-2202/LW-2402 LCD Monitor LW-2202/LW-2402 Eprel registration number: 1144484/1144487 +5° -15° +5° -15°... -
Page 9: Installation
PRODUCT DESCRIPTION 1.2 Installation 1.2.1 Installing the Stand 1. Place the LCD display with the screen side down on a cushioned surface. 2. Attach the stand to the LCD display. a. Press firmly on the base to secure the latches on the base into the slots on the stand. b. -
Page 10: Wall Mounting
Note: Take measures to prevent the LCD display from falling down and lessen possible injury and damage to the display in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 11: Overview
PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View LW-2202 LW-2402 1.3.2 Control Buttons LED Indicator HDMI AUDIO IN Button Description M Button • Pops up the menu/Backs to the previous menu (in case of main menu, exits from the whole menu). -
Page 12: Rear View
PRODUCT DESCRIPTION Button Description ▼ Button • When the menu opens, the progress bar value is decremented as the left function selects the key. Power button: Powers on/off the monitor. LED indicator light Long bright (White LED): Normal boot state Flicker (White LED): Power saving standby state. -
Page 13: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD display is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the DC Power 1. -
Page 14: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • HDMI AUDIO HDMI Connect the HDMI cable into the HDMI IN port into the back of the monitor. • VGA Connect the VGA cable into the VGA IN port in the back of the monitor. -
Page 15: Chapter 3: On Screen Display Menu
Chapter 3: On Screen Display Menu CHAPTER 3: ON SCREEN DISPLAY MENU 3.1 OSD Menu Tree Main menu Submenu Third menu Range Description Display Brightness 0-100 Adjust display brightness Contrast 0-100 Adjust display contrast Activate dynamic contrast Close dynamic contrast Return Return to the Display menu Exit... - Page 16 ON SCREEN DISPLAY MENU Main menu Submenu Third menu Range Description Mode Standard Set to standard mode Cinema Set to Cinema mode Set to FPS mode Set to RTS mode Eye Saver Set to Eye Saver mode Reture Return to the previous menu Exit Exit from the menu Color Temp.
- Page 17 ON SCREEN DISPLAY MENU Main menu Submenu Third menu Range Description Other Power Off Automatically turn off after saving power for 1 minute Close the function of timed switch-off Return Return to Other menu Exit Exit from the menu Gamma Gammar1 Set the Gamma1 Gammar2...
-
Page 18: Chapter 4: Appendix
Chapter 5: Appendix CHAPTER 4: APPENDIX 4.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The LCD display cannot detect the √ Check if the input source is input source signal. turned ON. -
Page 19: Troubleshooting
APPENDIX 4.2 Troubleshooting Problems Possible Cause and Solution The power indicator • Check if the power is on. light is not on • Check if the power cord is connected. Impossible plug-and-play • Check if the function of plug-and-play of the device is compatible with •... -
Page 20: Transporting The Lcd Display
APPENDIX 4.3 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging box. 1. Remove the base stand. a. Place the LCD display with the screen side down on a cushioned surface. b. - Page 21 APPENDIX Stand Base Stand Base LW-2202 LW-2402 Note: • It is recommended to use the original packaging box. • When repacking, carefully place the LCD display in its box and protect the glass panel from touching any object.
-
Page 22: Chapter 5: Specifications
Chapter 6: Specifications CHAPTER 5: SPECIFICATIONS 5.1 Display Specifications LW-2202 LW-2402 Panel Panel Type LED-Backlit TFT LCD (VA Technology) LED-Backlit TFT LCD (VA Technology) Panel Size 21.5” 23.8” Max. Resolution FHD 1920 x 1080 FHD 1920 x 1080 Pixel Pitch 0.248 mm... -
Page 23: Display Dimensions
100.0 232.7 53.7 565.3(Outline dimension) 12.2 527.0 HDMI AUDIO IN 220.0 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2022 AG Neovo. All rights reserved. LW-2202/LW-2402 Eprel registration number: 1144484/ 1144487 LW2220/LW2420_UM_V010...
