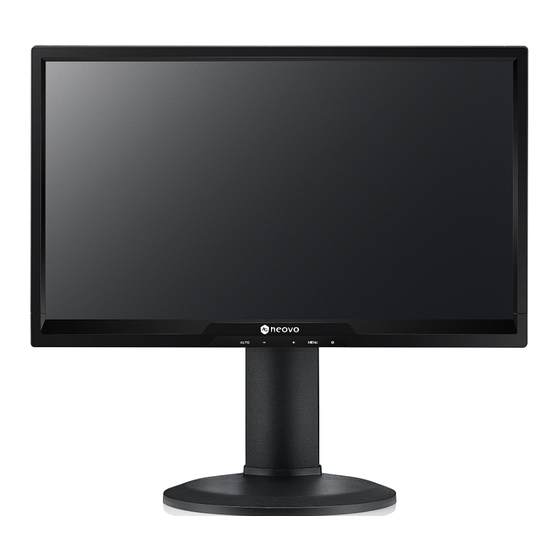

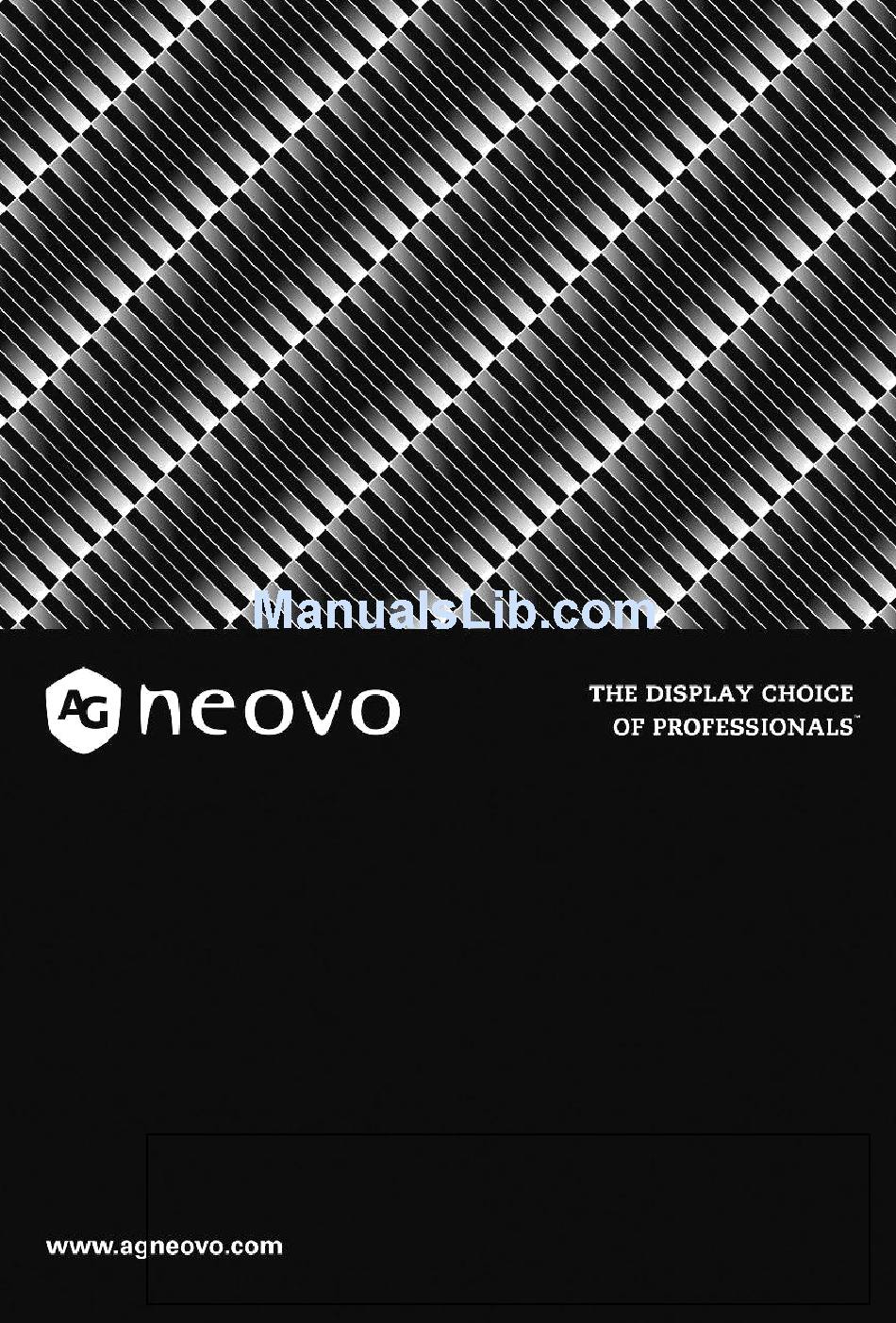

- Page 1 LE-22, LE-24 & LE-27 LED-Backlit Display User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY PRECAUTIONS.................. 3 FOR YOUR SAFETY ..................3 SPECIAL NOTES ON LCD MONITOR ............5 BEFORE YOU OPERATE THE MONITOR ............ 6 FEATURES ....................6 CHECKING THE CONTENTS OF THE PACKAGE......... 6 INSTALLATION INSTRUCTIONS ............... 6 ADJUSTING THE VIEWING ANGLE. -
Page 3: Safety Precautions
FOR YOUR SAFETY Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. SAFETY PRECAUTIONS FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) This device complies with Part 15 of the FCC rules.Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. - Page 4 FOR YOUR SAFETY PRECAUTIONS • Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. • Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance.
-
Page 5: Special Notes On Lcd Monitor
FOR YOUR SAFETY WEEE DECLARATION Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate... -
Page 6: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR FEATURES • 54.69cm (21.5 inches) TFT Color LCD Monitor 59.94cm (23.6 inches) TFT Color LCD Monitor 68.6cm (27inches) TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1920x1080@60Hz • Ergonomic Design •... -
Page 7: Adjusting The Viewing Angle
Hold the stand so that the monitor does not topple when you change the monitor’s angle. You are able to adjust the monitor as below: Tilt angle： LE-22\LE-24: -5° ~ 22° LE-27: -5° ~ 23° Pivot angle： 0°~90° Swivel angle：-160°~160°... -
Page 8: Connecting Cables
BEFORE YOU OPERATE THE MONITOR Power Source: 1. Make sure that the power cord is the correct type required in your area. 2. This LCD monitor has an universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.) 3. - Page 9 BEFORE YOU OPERATE THE MONITOR Figure 3 Connecting Cables...
-
Page 10: General Instructions
BEFORE YOU OPERATE THE MONITOR GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See ). By changing these settings, the Figure 4 picture can be adjusted to your personal preferences. •... -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS FRONT PANEL CONTROL • Auto/ Source / Exit: 1. When OSD menu is in active status, this button will act as EXIT-KEY (EXIT OSD menu). 2. When OSD menu is in off status, press this button to select input Source: D-Sub/DVI/HDMI. -
Page 12: How To Adjust A Setting
OPERATING INSTRUCTIONS HOW TO ADJUST A SETTING 1. Press the MENU-button to activate the OSD window. 2. Press + or - to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press + or - again to navigate through the submenu functions. -
Page 13: Adjusting The Picture
OPERATING INSTRUCTIONS ADJUSTING THE PICTURE The descriptions for function control. Main Main Menu Sub Menu Menu Description Item Item Menu Icon Contrast Contrast from Digital-register Brightness Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Luminance Game Game Mode Movie Movie Mode Sports... - Page 14 OPERATING INSTRUCTIONS Main Main Menu Sub Menu Menu Description Item Item Menu Icon Disable or Enable Full Enhance Full Enhance on or off Mode Disable or Enable Nature Skin Nature Skin on or off Mode Disable or Enable Green Field Green Field on or off Mode...
- Page 15 OPERATING INSTRUCTIONS Main Main Sub Menu Menu Description Menu Item Menu Icon Item Adjust the horizontal position of H.Position V.Position Adjust the vertical position of OSD Setup Timeout Adjust the OSD Timeout Language Select the OSD language D-Sub Select analog input source Select digital input source Input Select HDMI Select HDMI input source...
-
Page 16: Plug And Play
OPERATING INSTRUCTIONS PLUG AND PLAY Plug & Play DDC1/2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 17: Technical Support (Faq)
TECHNICAL SUPPORT (FAQ) Problem & Question Possible Solution • Check if the Power Switch is in the ON position. Power LED is not on. • Power Cord should be connected. • Check if the PC system is Plug & Play compatible. No Plug &... -
Page 18: Error Message & Possible Solution
TECHNICAL SUPPORT (FAQ) ERROR MESSAGE & POSSIBLE SOLUTION CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected. If the connector is loose, tighten the connector’s screws. 2. Check the signal cable connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.(page 21~22) - Page 19 APPENDIX SPECIFICATIONS Specifications LE-22 LE-24 LE-27 LED-backlit Panel Type TFT LCD Panel Size 21.5" 23.6" 27" LCD Panel 0.24825 x 0.2715 x 0.3114 x Pixel Pitch (mm) 0.24825 0.2715 0.3114 Max. Resolution 1920 x 1080 Display Colour 16.7M 30KHz – 83KHz Frequency H.
-
Page 20: Appendix
APPENDIX Specifications LE-22 LE-24 LE-27 • +/Volume+ • -/ECO • AUTO/SOURCE/EXIT Switch • MENU/ENTER • POWER BUTTON Control • Luminance Setting • Image Setup • Color Temp. • Color Boost Functions • Picture Boost • OSD Setup • Extra Plug & Play... -
Page 21: Factory Preset Timing Table
APPENDIX FACTORY PRESET TIMING TABLE Preset Display Modes Horizontal Vertical Standard Resolution Frequency (KHz) Frequency (Hz) 640×480 @60Hz 31.469 59.940 640×480 @67Hz 35.000 66.667 640×480 @72Hz 37.861 72.809 640×480 @75Hz 37.500 75.000 Dos-mode 720×400 @70Hz 31.469 70.087 800×600 @56Hz 35.156 56.250 800×600 @60Hz 37.879... - Page 22 APPENDIX Video（HDMI ） Timing Table Format Resolution 480P@60Hz for Digital only 640 x 480 480P@60Hz for Digital only 720 x 480 576P@60Hz for Digital only 720 x 576 720P@50Hz for Digital only 1280 x720 720P@60Hz for Digital only 1280 x720 1080P@50Hz for Digital 1920 x 1080 1080P@60Hz for Digital...
-
Page 23: Connector Pin Assignment
APPENDIX CONNECTOR PIN ASSIGNMENT Figure 6 15-Pin Color Display Signal Cable Pin No. Description Pin No. Description +5V/Sense(+5V) Green Monitor Gnd Blue Logic Gnd Logic Gnd DDC serial data Detect cable H sync Red Gnd V sync Green Gnd DDC serial Clk. Blue Gnd... - Page 24 APPENDIX Figure 8 HDMI Signal Cable Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Clock Shield TMDS Data 2 Shield TMDS Clock TMDS Data 2 TMDS Data 1+ Reserved (N.C. on device) TMDS Data 1 Shield TMDS Data 1 TMDS Data 0+ DDC/CEC Ground...
-
Page 25: Product Dimensions
APPENDIX PRODUCT DIMENSIONS LE-22 ► Front View ► Side View ► Top View... - Page 26 APPENDIX PRODUCT DIMENSIONS LE-24 ► Front View ► Side View ► Top View...
- Page 27 APPENDIX PRODUCT DIMENSIONS LE-27 ► Front View ► Side View ► Top View Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan.
