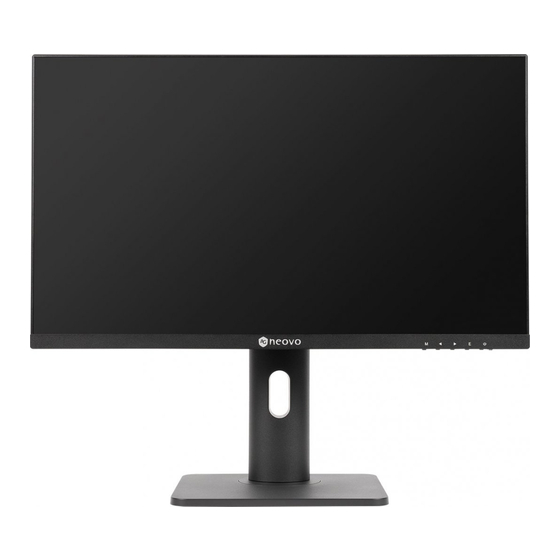

- Page 1 LH-2402 & LH-2702 LCD Monitor User Manual www.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Contents SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) ..............3 PRECAUTIONS Notice ................................4 Cautions When Setting Up ........................... 4 Cautions When Using ........................... 5 Cleaning and Maintenance ........................... 6 Notice for the LCD Display ........................... 6 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents .......................... -
Page 3: Safety Information
Safety Information SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 5: Cautions When Using
Users who have already mounted the display on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience. -
Page 6: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD display yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 7: Chapter 1: Product Description
Quick Start Guide Warranty Card HDMI Cable LH-2402 & LH-2702 Quick Start Guide LH-2402 & LH-2702 LCD Monitor LH-2402/LH-2702_Quick Guide_V010 www.agneovo.com Note: • Use only the supplied power cord. • The above pictures are for reference only. Actual items may vary upon shipment. -
Page 8: Installation
PRODUCT DESCRIPTION 1.2 Installation 1.2.1 Installing the Stand 1. Place the LCD display with the screen side down on a cushioned surface. 2. Attach the stand to the LCD display. a. Take out the stand and base, and lock the stand with the hand screw that comes with the base. b. -
Page 9: Wall Mounting
Note: Take measures to prevent the LCD display from falling down and lessen possible injury and damage to the display in case of earthquakes or other disasters. • Use only the 75 x 75 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 10: Overview
PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View 1.3.2 Control Buttons ◄ ► Button Description M Button • Pops up the menu/Backs to the previous menu (in case of main menu, exits from the whole menu). E Button • When the menu is activated, press this key to select the function. •... -
Page 11: Rear View
PRODUCT DESCRIPTION 1.3.3 Rear View AC IN HDMI AUDIO IN AC IN DP Input Connect DisplayPort signals input. HDMI Input Connect HDMI signals input. VGA Input Connect VGA signals input. AUDIO IN Connect audio signals input (3.5 mm Stereo Audio Jack). AC IN AC power input. -
Page 12: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD display is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 13: Cable Management
CHAPTER 2: MAKING CONNECTIONS 2.3 Cable management After connecting the cables to the monitor, use the cable management slot to organize all cables shown below. -
Page 14: Chapter 3: On Screen Display Menu
Chapter 3: On Screen Display Menu CHAPTER 3: ON SCREEN DISPLAY MENU 3.1 OSD Menu Tree Main menu Submenu Third menu Range Description Display Brightness 0-100 Adjust display brightness Contrast 0-100 Adjust display contrast Activate dynamic contrast Close dynamic contrast Return Return to the Display menu Exit... - Page 15 ON SCREEN DISPLAY MENU Main menu Submenu Third menu Range Description Mode Standard Set to standard mode Cinema Set to Cinema mode Set to FPS mode Set to RTS mode Eye Saver Set to Eye Saver mode Reture Return to the previous menu Exit Exit from the menu Color Temp.
- Page 16 ON SCREEN DISPLAY MENU Main menu Submenu Third menu Range Description Other Power Off Automatically turn off after saving power for 1 minute Close the function of timed switch-off Return Return to Other menu Exit Exit from the menu Gamma Gammar1 Set the Gamma1 Gammar2...
-
Page 17: Chapter 4: Appendix
Chapter 4: Appendix CHAPTER 4: APPENDIX 4.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The LCD display cannot detect the √ Check if the input source is input source signal. turned ON. -
Page 18: Troubleshooting
APPENDIX 4.2 Troubleshooting Problems Possible Cause and Solution The power indicator • Check if the power is on. light is not on • Check if the power cord is connected. Impossible plug-and-play • Check if the function of plug-and-play of the device is compatible with •... -
Page 19: Chapter 5: Specifications
CHAPTER 5: SPECIFICATIONS CHAPTER 5: SPECIFICATIONS 5.1 Display Specifications LH-2402 LH-2702 Panel Panel Type LED-Backlit TFT LCD (VA Technology) LED-Backlit TFT LCD (IPS Technology) Panel Size 23.8” 27.0” Max. Resolution FHD 1920 x 1080 FHD 1920 x 1080 Pixel Pitch 0.275 mm... -
Page 20: Display Dimensions
269.2 613.5 (Outline dimension) 597.8 AC IN 48.6 230.8 200.8 48.6 200.8 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2022 AG Neovo. All rights reserved. LH-2402/LH-2702 Eprel registration number: 1168425/1168427 LH2420/LH2720_UM_V010...
