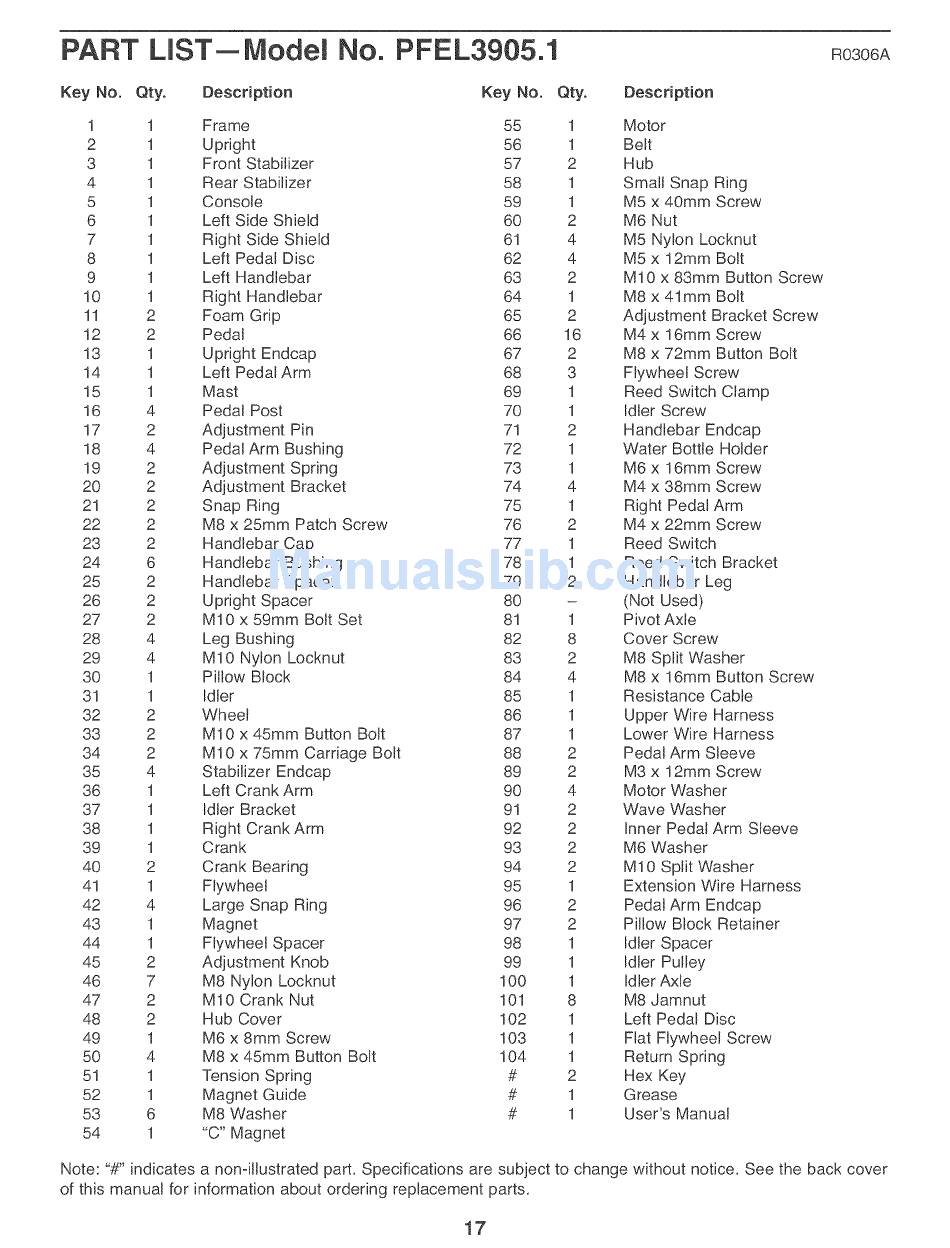

Part List - Pro-Form Stride Select 825 User Manual

PART LiST--Model No. PFEL3905.1 R0S06A
Key No. Qtyo Description Key No. Qtyo Description
1 1 Frame 55 1 Motor
2 1 Upright 56 1 Belt
3 1 Front Stabilizer 57 2 Hub
4 1 Rear Stabilizer 58 1 Small Snap Ring
5 1 Console 59 1 M5 x 40mm Screw
6 1 Left Side Shield 60 2 M6 Nut
7 1 Right Side Shield 61 4 M5 Nylon Locknut
8 1 Left Pedal Disc 62 4 M5 x 12mm Bolt
9 1 Left Handlebar 63 2 M10 x 83mm Button Screw
10 1 Right Handlebar 64 1 M8 x 41mm Bolt
11 2 Foam Grip 65 2 Adjustment Bracket Screw
12 2 Pedal 66 16 M4 x 16mm Screw
13 1 Upright Endcap 67 2 M8 x 72mm Button Bolt
14 1 Left Pedal Arm 68 3 Flywheel Screw
15 1 Mast 69 1 Reed Switch Clamp
16 4 Pedal Post 70 1 Idler Screw
17 2 Adjustment Pin 71 2 Handlebar Endcap
18 4 Pedal Arm Bushing 72 1 Water Bottle Holder
19 2 Adjustment Spring 73 1 M6 x 16mm Screw
20 2 Adjustment Bracket 74 4 M4 x 38mm Screw
21 2 Snap Ring 75 1 Right Pedal Arm
22 2 M8 x 25mm Patch Screw 76 2 M4 x 22mm Screw
23 2 Handlebar Cap 77 1 Reed Switch
24 6 Handlebar Bushing 78 1 Reed Switch Bracket
25 2 Handlebar Spacer 79 2 Handlebar Leg
26 2 Upright Spacer 80 - (Not Used)
27 2 M10 x 59mm Bolt Set 81 1 Pivot Axle
28 4 Leg Bushing 82 8 Cover Screw
29 4 M10 Nylon Locknut 83 2 M8 Split Washer
30 1 Pillow Block 84 4 M8 x 16mm Button Screw
31 1 Idler 85 1 Resistance Cable
32 2 Wheel 86 1 Upper Wire Harness
33 2 M10 x 45mm Button Bolt 87 1 Lower Wire Harness
34 2 M10 x 75mm Carriage Bolt 88 2 Pedal Arm Sleeve
35 4 Stabilizer Endcap 89 2 M3 x 12mm Screw
36 1 Left Crank Arm 90 4 Motor Washer
37 1 Idler Bracket 91 2 Wave Washer
38 1 Right Crank Arm 92 2 Inner Pedal Arm Sleeve
39 1 Crank 93 2 M6 Washer
40 2 Crank Bearing 94 2 M10 Split Washer
41 1 Flywheel 95 1 Extension Wire Harness
42 4 Large Snap Ring 96 2 Pedal Arm Endcap
43 1 Magnet 97 2 Pillow Block Retainer
44 1 Flywheel Spacer 98 1 Idler Spacer
45 2 Adjustment Knob 99 1 Idler Pulley
46 7 M8 Nylon Locknut 100 1 Idler Axle
47 2 M10 Crank Nut 101 8 M8 Jamnut
48 2 Hub Cover 102 1 Left Pedal Disc
49 1 M6 x 8mm Screw 103 1 Flat Flywheel Screw
50 4 M8 x 45mm Button Bolt 104 1 Return Spring
51 1 Tension Spring # 2 Hex Key
52 1 Magnet Guide # 1 Grease
53 6 M8 Washer # 1 User's Manual
54 1 "C" Magnet
Note: "If" indicates a non°illustrated part, Specifications are subject to change without notice, See the back cover
of this manual for information about ordering replacement parts,
