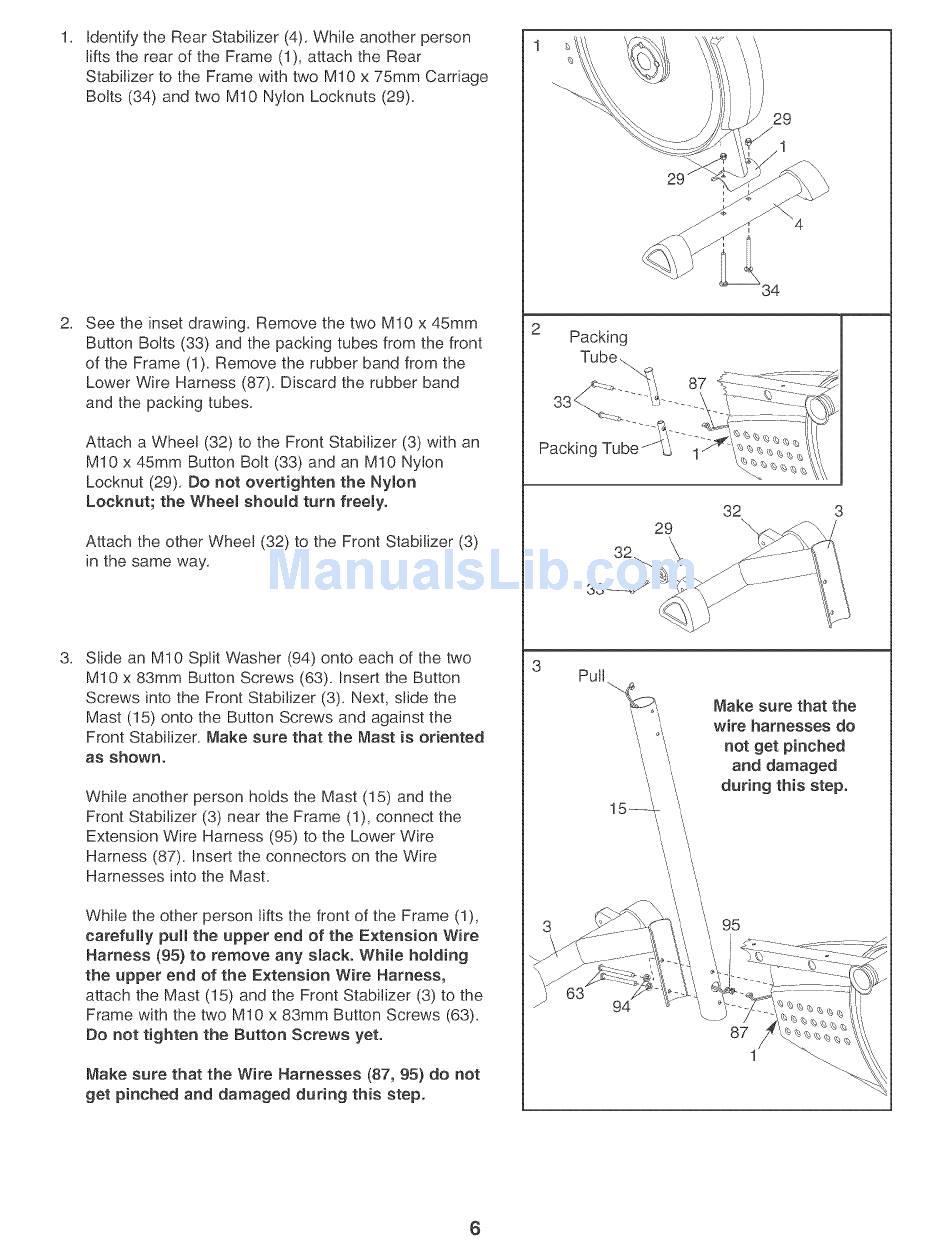

Identify theRearStabilizer (4).Whileanother p erson
liftstherearofthe Frame (1),attach theRear
Stabilizer to theFrame withtwoMlOx 75mmCarriage
Bolts(34)andtwoMlONylon Locknuts ( 29).
Seetheinsetdrawing. R emove thetwoMIOx 45mm
Button Bolts(33)andthepacking tubesfromthefront
of theFrame (1).Remove therubber bandfromthe
Lower WireHarness (87).Discard therubber band
andthepacking tubes.
Attacha Wheel ( 32)totheFrontStabilizer (3)withan
MIOx 45mmButton Bolt(33)andanMlONylon
Locknut ( 29).
So not overtighten the NyJon
Locknut; the Wheel shouJd turn freeJy.
Attach the other Wheel (32) to the Front Stabilizer (3)
in the same way.
Slide an MIO Split Washer (94) onto each of the two
MIO x 83mm Button Screws (63). Insert the Button
Screws into the Front Stabilizer (3). Next, slide the
Mast (15) onto the Button Screws and against the
Front Stabilizer. Make sure that the Mast is oriented
as shown.
While another person holds the Mast (15) and the
Front Stabilizer (3) near the Frame (1), connect the
Extension Wire Harness (95) to the Lower Wire
Harness (87). Insert the connectors on the Wire
Harnesses into the Mast.
While the other person lifts the front of the Frame (1),
carefully pull the upper end of the Extension Wire
Harness (95) to remove any sJack. While holding
the upper end of the Extension Wire Harness,
attach the Mast (15) and the Front Stabilizer (3) to the
Frame with the two MlO x 83mm Button Screws (63).
So not tighten the Sutton Screws yet.
Make sure that the Wire Harnesses (87, 95) do not
get pinched and damaged during this step.
