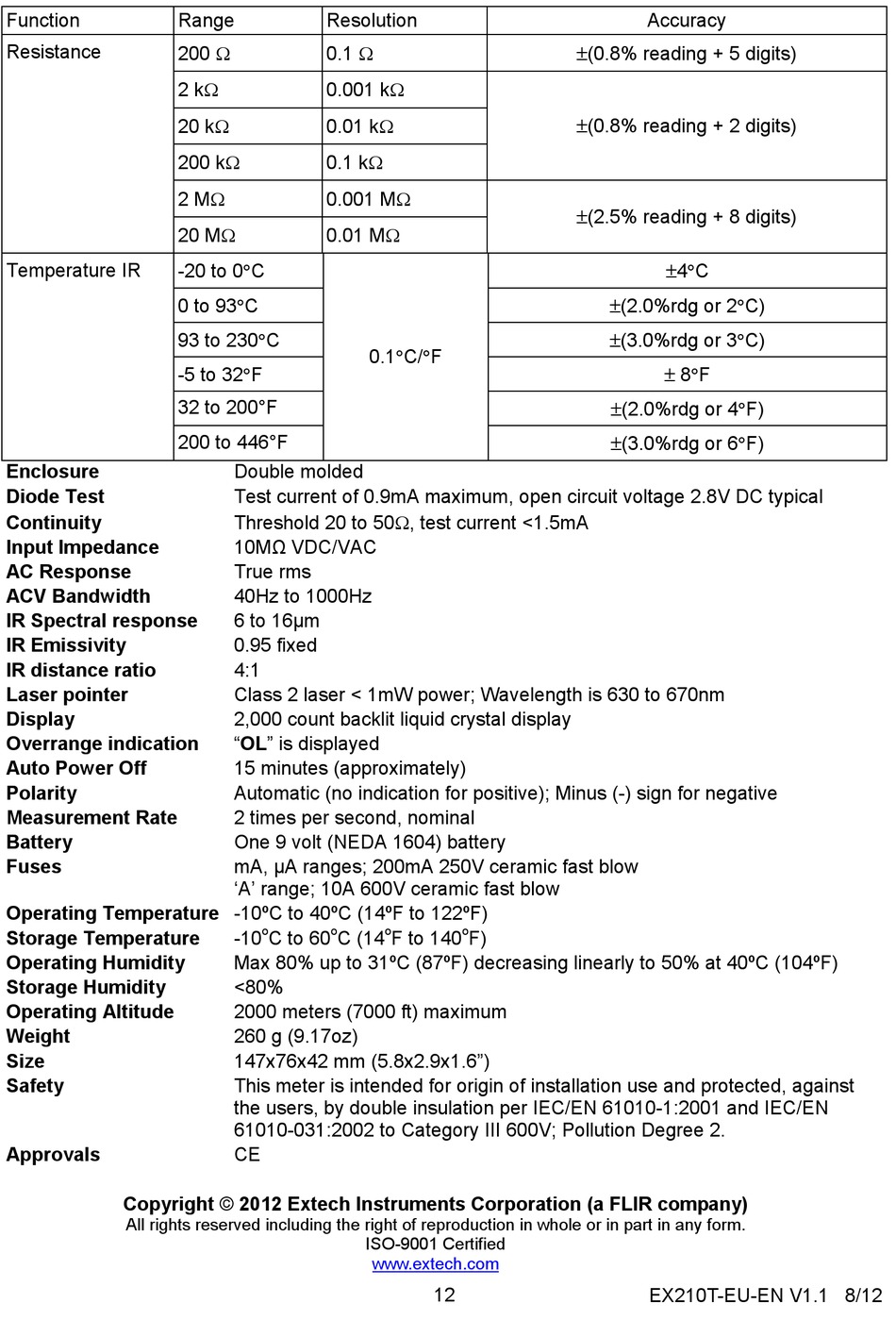

Extech Instruments EX210T User Manual page 12

Function
Resistance
Temperature IR
Enclosure
Diode Test
Continuity
Input Impedance
AC Response
ACV Bandwidth
IR Spectral response
IR Emissivity
IR distance ratio
Laser pointer
Display
Overrange indication
Auto Power Off
Polarity
Measurement Rate
Battery
Fuses
Operating Temperature -10ºC to 40ºC (14ºF to 122ºF)
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
Weight
Size
Safety
Approvals
Copyright © 2012 Extech Instruments Corporation (a FLIR company)
All rights reserved including the right of reproduction in whole or in part in any form.
Range Resolution
200  0.1 
2 k 0.001 k
20 k 0.01 k
200 k 0.1 k
2 M 0.001 M
20 M 0.01 M
-20 to 0C
0 to 93C
93 to 230C
-5 to 32F
32 to 200°F
200 to 446°F
Double molded
Test current of 0.9mA maximum, open circuit voltage 2.8V DC typical
Threshold 20 to 50, test current <1.5mA
10MΩ VDC/VAC
True rms
40Hz to 1000Hz
6 to 16µm
0.95 fixed
4:1
Class 2 laser < 1mW power; Wavelength is 630 to 670nm
2,000 count backlit liquid crystal display
"OL" is displayed
15 minutes (approximately)
Automatic (no indication for positive); Minus (-) sign for negative
2 times per second, nominal
One 9 volt (NEDA 1604) battery
mA, µA ranges; 200mA 250V ceramic fast blow
'A' range; 10A 600V ceramic fast blow
o o
-10 C to 60 C (14
Max 80% up to 31ºC (87ºF) decreasing linearly to 50% at 40ºC (104ºF)
<80%
2000 meters (7000 ft) maximum
260 g (9.17oz)
147x76x42 mm (5.8x2.9x1.6")
This meter is intended for origin of installation use and protected, against
the users, by double insulation per IEC/EN 61010-1:2001 and IEC/EN
61010-031:2002 to Category III 600V; Pollution Degree 2.
CE
0.1C/F
o o
F to 140 F)
ISO-9001 Certified
www.extech.com
12
Accuracy
(0.8% reading + 5 digits)
(0.8% reading + 2 digits)
(2.5% reading + 8 digits)
4C
(2.0%rdg or 2C)
(3.0%rdg or 3C)
 8F
(2.0%rdg or 4F)
(3.0%rdg or 6F)
