  • Page 1: User Manual

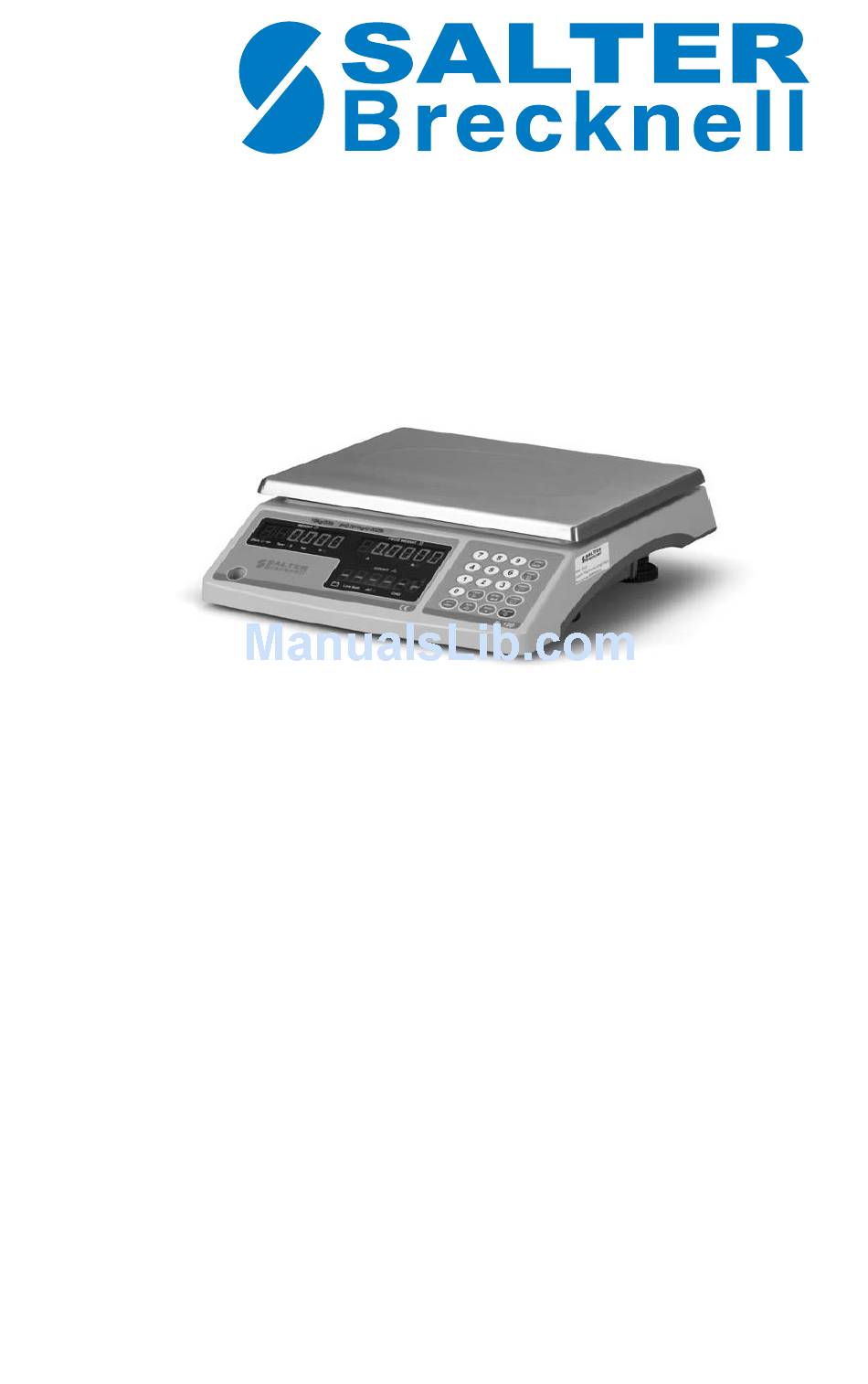

    MODEL B 120 Counting Scale User Manual p/n AWT35-500140 Issue AB July 2007...
  • Page 2 RCD protected supply to BS EN 61008 or BS EN 61009 (UK & Europe) IF IN DOUBT, SEEK ADVICE FROM A QUALIFIED ELECTRICIAN. Declaration of Conformity Manufacturer Salter Brecknell Type B120 Corresponds to the requirements of the following EC directives:-...
  • Page 3: Introduction And General Information

    Introduction and General Information Thank you for purchasing the Model B 120 counting scale. Please read all operating instructions carefully before using and note the following items: • Unpack the scale and install the battery if it was not factory installed. Plug the charging unit into a properly grounded outlet.
  • Page 4 Connect the red wire to the red battery terminal and the black wire to the black battery terminal. Place battery in the compartment with the padding placed as shown and replace the battery cover and tighten the screw. Note: To improve battery life, turn off the scale using the power switch.
  • Page 5: Front Panel

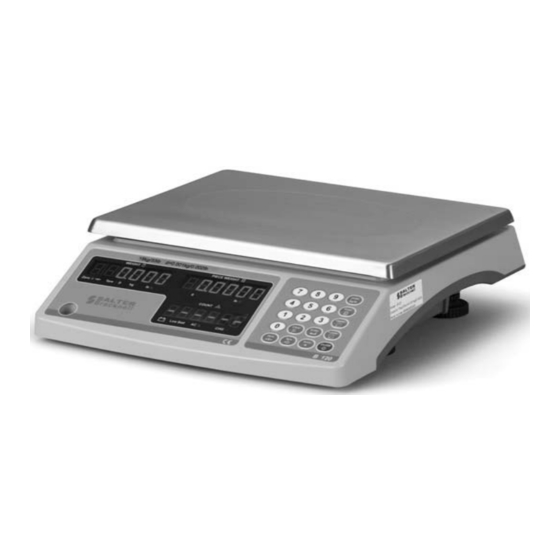

    Front Panel The front panel, shown in Figure 1, consists of three display windows (WEIGHT, PIECE WEIGHT, and COUNT), the keypad, nine annunciators and the bubble level window. Figure 1: B120 front panel Annunciators Annunciators are bright LEDs next to symbols or text. They appear below the three displays and each is explained below.
  • Page 6: Key Functions

    Key Functions Each of the keys shown in Figure is explained below. Figure 2: B 120 keypad Used for keyboard entry of piece weight, sample size, and upper and lower limit settings. Units lb/kg Used to switch displayed weights between kg and lb, and piece weight units between grams and decimal pounds.
  • Page 7: Scale Operation

    Scale Operation This section covers the various scale operations, such as weighing, counting, accumulation, etc. Simple Weighing Turn the scale on and zero the display, if necessary, by pressing the Zero key. Be sure the scale is displaying weight in your preferred unit of measure.
  • Page 8: General Counting Information

    ZERO key. A counting scale needs a minimum amount of weight to calculate counts with accuracy. Salter Brecknell recommends the sample weight be a minimum of 0.1% of scale capacity. The sample weight is the total weight of your sample items.
  • Page 9: Counting By Entering A Known Piece Weight

    Press the Enter key to accept the keyed in number. (If you make an error in keying in the number, press the Clear key to clear the count in the COUNT window and re-key the correct number.)… The scale calculates the weight of each piece (the piece weight) and displays the count in the COUNT window.
  • Page 10: Counting Using Upper And Lower Count Limits

    Place the items to be counted on the scale… The total weight, piece weight and count of the items will be shown in the three display windows respectively. Remove the items from the scale and repeat steps 4 and 5 to count items of the same piece weight.
  • Page 11: Accumulating Counts

    Remove the items from the scale and repeat steps 7 and 8 to weigh the next batch of items. Counting with upper and lower limits can be done while using a tare. After you have set the piece weight (step 2), place the item to be tared on the scale, press the Tare key and continue with counting as described in step 3.
  • Page 12 The scale will not accumulate more than 999,999 times, or show an accumulated quantity over 16,777,215. If this occurs the display will show ------. This means over range. When the accumulated quantity is more than the six digit display can show (999999), it will be displayed by alternately flashing the first four digits H XXXX) then the second four digits (L XXXX).
  • Page 13 Access to the calibration switch may be sealed with a lead-wire combination on the bottom of the scale. Prior to removing the lead seal, check to see if the test switch is in the correct position by following step 1 below. If you are not allowed access, remove the lead-wire seal.
  • Page 14: View Voltage And A/D Counts

    Press the Enter key to confirm the zero point again. The scale goes through the start up routine and ends in normal weighing mode. If there is any error in the calibration, the scale will show CAL. Err. The scale will try to return to the previous step. If you have problems, press the On/Off key to exit the calibration mode and try the procedure again.
  • Page 15: Setting The Auto-Off Timer

    Setting the Auto-Off Timer You can set an auto-off timer so that the scale will power down automatically after a period of inactivity. This functions only when the scale is powered by the battery. From normal mode, press and hold the On/Off and Accu keys at the same time until the scale beeps…...
  • Page 16: Displayed Messages

    Displayed Messages ¯ ¯ ¯ ¯ ¯ ¯ Scale overloaded - - - - - - Too many accumulations or accumulated counts too high _ _ _ _ _ _ Weight signal is too small 0¯ ¯ ¯ ¯ ¯ The zero point is too high 0_ _ _ _ _ The zero point is too low...
  • Page 17: Specifications

    10.0 Specifications Model B120 Capacity 6kg/12lb 15kg/30lb 30kg/60lb Display 6kg x 0.001kg 15kg x 0.002kg 30kg x Resolution 12lb x 0.002lb 30lb x 0.005lb 0.005kg 60lb x 0.010lb Max. Display 6.009kg/ 15.018kg/33.110lb 30.045kg/ Weight 13.248lb 66.240lb TARE Range 0-100% of full scale capacity ZERO Range Power on:calibration zero point±10% of full scale capacity;...
  • Page 19 B66 2TE Tel: +44 (0) 870 444 6132 Fax: +44 (0) 870 010 2241 Email: sales@salterbrecknell.co.uk Web Site: www.averyweigh-tronix.com Salter Brecknell Weighing Products USA 1000 Armstrong Drive Fairmont, MN 56031 Toll free: 800-637-0529 Tel: 507-238-8702 Fax: 507-238-8271 Email: sales@salterbrecknell.com www.salterbrecknell.com...
