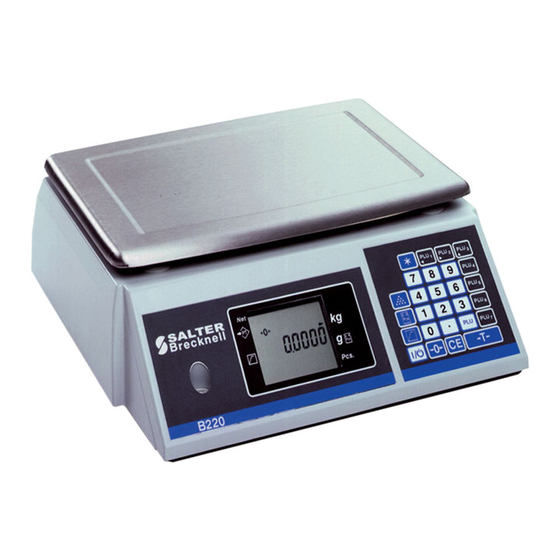

Salter Brecknell B220 User Instructions

Salter Brecknell B220 User Instructions

Counting scale
Hide thumbs Also See for B220:

Advertisement

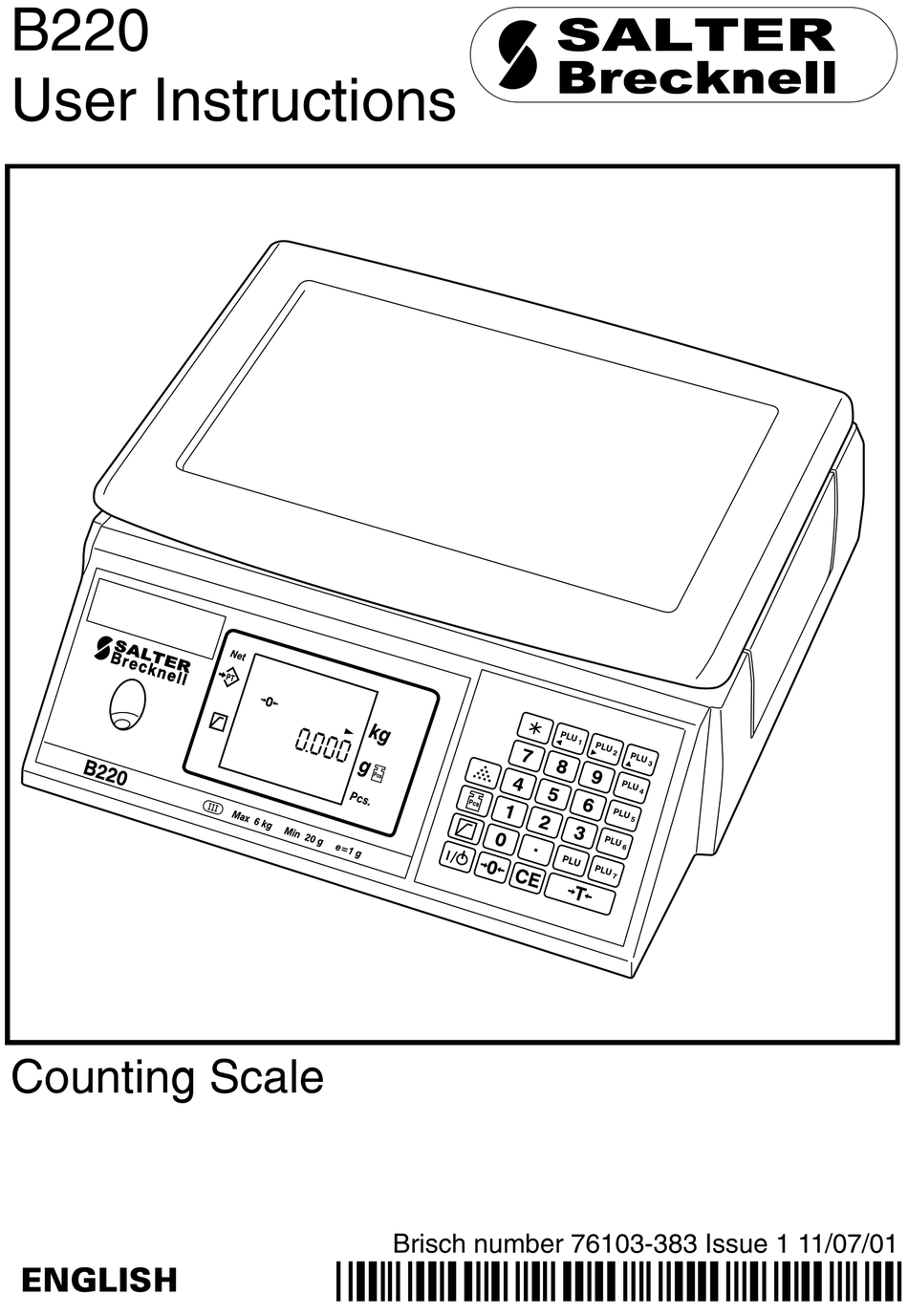

B220

User Instructions

Counting Scale
Brisch number 76103-383 Issue 1 11/07/01
*76103-383*
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B220 and is the answer not in the manual?

Questions and answers

Summary of Contents for Salter Brecknell B220

  • Page 1: User Instructions

    B220 User Instructions Counting Scale Brisch number 76103-383 Issue 1 11/07/01 *76103-383* ENGLISH...
  • Page 3: Table Of Contents

    Table of Contents Warnings Cleaning the scale Installation Switching the scale on Bleeps Testing the display/Selecting sleep mode Error messages Using the scale Zeroing the scale Using the clear key Clearing a numeric entry Using tares Creating a tare Creating a keyboard entered tare Cancelling a tare Sampling Fast sampling...
  • Page 4 Batch counting Totalising Using PLUs Programming a PLU hot key Programming a keyboard PLU Using a PLU hot key Using a keyboard entered PLU Clearing a PLU hot key Clearing a keyboard entered PLU Clearing a keyboard entered PLU User Calibration Adjustment To Cancel A User Calibration Adjustment Weights For Calibration Adjustment Management mode...
  • Page 5 Changing the duration of a ‘Long’ press Changing the minimum sample weight Changing the manual re-sampling range Changing the automatic re-sampling range Changing PLUs Changing a PLU item weight Changing a PLU tare Protecting a PLU Declaration of Conformity non-approved Declaration of Conformity approved...
  • Page 6: Warnings

    Warnings For your protection, all mains (110V or 230V) equipment used where damp or wet conditions may occur, must be supplied from a correctly fused source and protected by an approved RCD to BS7071 or BS7288 or IEC1008-2-2 BS EN 61008:1995. IF IN DOUBT SEEK ADVICE FROM A QUALIFIED ELECTRICIAN.
  • Page 7: Switching The Scale On

    Switching the scale on Connecting to the mains - Plug the adaptor lead into the scale, replace the cover and weighplate and then plug the adaptor into the power supply. Warning : Do not use the mains adaptor if it is damaged. Using batteries - Plug the battery pack into the scale and place the pack into the recess.
  • Page 8: Bleeps

    Bleeps Short press (Press once) Long press (Press and hold) Testing the display/Selecting sleep mode Service 101d Short Short information: 0-6-0 press press x 2 Wake up: SLEEP Long Short press press Error messages If a persistent error message appears or the scale locks up, disconnect then reconnect the scale to the power supply.
  • Page 9: Using The Scale

    Using the scale Zeroing the scale Make sure that the scale is at zero before weighing. 0. 0 00 Short press Using the clear key To clear all active PLUs, tares and item weights: 0. 0 00 Long press Clearing a numeric entry To clear the To clear the last entry:...
  • Page 10: Cancelling A Tare

    Cancelling a tare -0. 1 50 0. 0 00 Short press Sampling The method that you use to sample will depend on whether the items that you intend to count are high or low value and whether the items vary slightly in weight: Value Normal Gold...
  • Page 11: Normal Sampling

    Normal sampling Add or remove items SPLE 1. 3 45 Short Short press press The scale is now ready for counting. Short Items added press or removed Re-sampling Once you have sampled a group of items, you can add an equal or greater amount to the scale and then re-sample.
  • Page 12: Counting

    Counting Setting an item limit You can set an item limit before or after sampling. Short number press of items Viewing the item limit Item Short limit press Clearing the item limit Short Short press press Forward counting Sample the items to be counted (see page 5). Weight 1.
  • Page 13: Batch Counting

    Batch counting Sample the items to be counted (see page 5). Short press Add or remove items Weight - 0. 3 45 0. 0 00 Short Items press Repeat until all batches have been counted Totalising Sample the items to be counted (see page 5). Number of transactions 0.
  • Page 14: Using Plus

    Using PLUs There are thirty five PLUs that can be programmed to include either a tare, an item weight or both. All PLUs can be protected to avoid being accidentally changed or cleared in management mode (see page 15). Programming a PLU hot key Create Sample or And/or...
  • Page 15: Clearing A Keyboard Entered Plu

    Clearing a keyboard entered PLU 0. 0 00 Long Long press press number User Calibration Adjustment Short press Short press done Short press Short press Short press To Cancel A User Calibration Adjustment Short press Short press Short press Short press Weights For Calibration Adjustment 6kg capacity Any weight in 1kg steps...
  • Page 16: Management Mode

    Management mode Branch Sub-branch 1 9 . 0 0 Value Enter management mode 6231 Go to the next branch (long press) Go to next sub-branch (short press) Go to the previous branch (long press) Go to previous sub-branch (short press) Select value to be changed (short press) Return to Branch 00 (Long press) Increment the value (short press)
  • Page 17: Zero Tracking

    Zero Tracking This is used to account for minor weight changes due to temperature variations Fast Wide Slow Wide 6 . 0 1 6 . 0 1 6 . 0 1 Disabled Mode Mode 6 . 0 1 Fast Narrow Slow Narrow 6 .
  • Page 18: Switching The Bleeper Alarm On/Off

    Switching the bleeper alarm on/off Go to branch 19, Sub-branch 00 1 9 . 0 0 0 = Off 1 = On Switching the keyboard bleeper on/off Go to branch 19, Sub-branch 01 1 9 . 0 1 0 = Off = On Weight limit bleep Go to branch 19, Sub-branch 02...
  • Page 19: Changing The Duration Of A 'Long' Press

    Changing the duration of a 'Long' press Go to branch 29, Sub-branch 00 For example : 200 = 2 seconds 2 9 . 0 0 150 = 1½ seconds 2 0 0 = ½ second Changing the minimum sample weight Go to branch 61, Sub-branch 00 Enter the minimum sample weight in grams.
  • Page 20: Changing A Plu Tare

    Changing a PLU tare Go to PLU branch number. For example PLU5 Sub-branch 03 Sub-branch 02 Enter the number of decimal places Enter the weight (kg) 1 0 5 . 0 2 1 0 5 . 0 3 1 4 5 Protecting a PLU Go to the PLU branch number.
  • Page 21: Declaration Of Conformity

    This document contains a general guide only of the product and shall not form any contract unless specifically agreed by Salter Brecknell Weighing in writing in each case on the Order Acknowledgment. The specification of the products described herein may vary from time to time and may be altered without notice.
  • Page 22 This document contains a general guide only of the product and shall not form any contract unless specifically agreed by Salter Brecknell Weighing in writing in each case on the Order Acknowledgment. The specification of the products described herein may vary from time to time and may be altered without notice.
