  • Page 1 Model SBI-100 Operation Manual Manual: xxxxxx Issue:xx...

  • Page 2: Warnings

    The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied. Salter Brecknell is a trading name of Avery Weigh-Tronix LLC WARNINGS...

  • Page 3: Table Of Contents

    Contents WARNINGS ................................2 Product Identification Table ........................... 3 ASSEMBLY ................................. Setting the Indicator Up for Use ..........................4 Wire the cable attached to the base as shown (if necessary)................4 Display and Keypad............................... 5 Manual symbols..............................5 Scale Operation................................ 6 Turning On and Zeroing the Scale ........................

  • Page 4: Setting The Indicator Up For Use

    Setting the Indicator Up for Use Power/Adapter Socket Loadcell socket RS232 Power Supply Connecting the Indicator to the Platform 6V DC - 500mA 230V - 50Hz Wire the cable attached to the base as shown (if necessary) 1. Red Excitation+ 1 RED 2.

  • Page 5: Display And Keypad

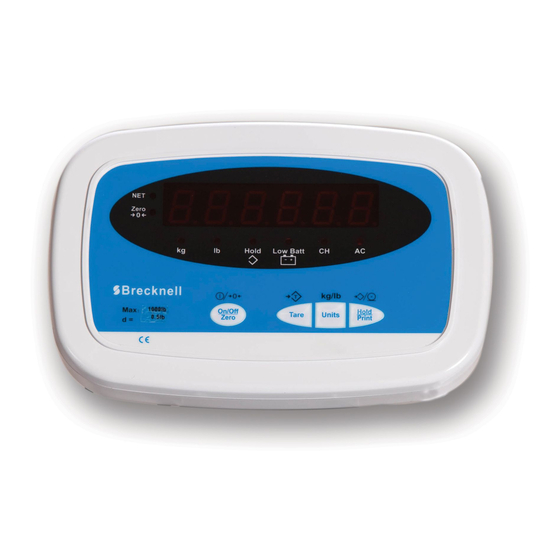

    Display and Keypad Zero Hold Low Batt kg/lb Hold On/Off Tare Units Print Zero SBI 100 Function Keys Annunicators Zero Tare Weight is zero Tare Unit of measure (Flashing LED means that the On/Off weight reading is not stable.) Zero On/Off/Zero kg/lb Tare is activated...

  • Page 6: Scale Operation

    Scale Operation Turning On and Zeroing the Scale ZERO On/Off Zero Turning off the scale On/Off Zero Selecting Unit of Measure Units kg  lb Using the Tare Tare Removing the Tare On/Off ZERO Zero...

  • Page 7: Hold Function With Automatic Zero On Next Weigh

    Hold function with automatic zero on next weigh. Hold Print Hold     Hold Hold function with manual release. This function needs to be setup in Parameter P3.1 shown on page 10 Hold Print Hold  Removing Hold Hold Print Hold...

  • Page 8: User Configuration Settings

     Hold Print 3. Print Gross: 45.00kg Tare: 1.35kg Net: 43.65kg USER CONFIGURATION SETTINGS Setup Controls Hold On/Off Tare Print Units Zero Exits setup mode Saves data and move down Moves flashing digit Change flashed digits to next Parameter setting Entering setup On/Off Units...

  • Page 9: User Configuration Settings

    User Configuration Settings Setting Parameter Default settings in bold P1.00 Auto shutoff timer in minutes P1.xy P1.01 – P1.15, Set up time for the auto off function. (00 = 0ff, 01-15 = time in minutes) P1.5 = 15 minutes Hold and print key functionality P2.0= Hold Setup button function P2.x...

  • Page 10: Rs-232 Data Commands For Sbi Protocol

    RS-232 data commands for SBI protocol The RS232 can be set so a bidirectional connection can be established between the indicator and the host. To establish this connection set parameter P4 to 7, and configure setting P5 (baud) and P6 (parity) to host device. Commands can then be sent from the host to the indicator using the following commands (ensure the letters entered are in CAPS) (<CR>...

  • Page 11: Other Rs-232 Output Strings

    Other RS-232 Output Strings P4-1 = Output Displayed data @ print key : Example: xxxxx0.18lb Format: <LF>< reading, minus, decimal point, weight unit><CR><EXT> P4-2 = Output Gross, Tare, Net @ print key Format: Example: <LF><Gross: reading, minus, decimal point, unit><CR><EXT> Gross:xxxxx0.18lb <LF>...

  • Page 12: Scale Calibration

    Scale calibration Calibration Configuration Settings – The scale is configured from the factory to match the specified settings for each unit, as defined by the product specifications and sales brochure. Modification of the setting can be accomplished by altering user configuration settings P7-P10.
  • Page 13 Tare Tare 4. Enter in calibration weight from 25% to 100% full capacity Hold 50.00 Tare 25%-100% Units Print kg/lb 5. Single point calibration, enter the same weight in again and move to number 7 For 2 point calibration enter in the second calibration weight between 25% 100% full capacity. Tare Hold 100.00...

  • Page 14: Service Configuration Settings

    Service Configuration Settings The scale is configured from the factory to match the specified settings for each unit, as defined by the product specifications and sales brochure. Modification of the setting can be accomplished by altering user configuration settings P11-P19. Caution: Configuration of the settings of your scale should be accomplished by a trained service technician to ensure proper operation and accuracy.

  • Page 15: Technical Specifications

    Technical Specifications Scale Indicator Input signal range: 0mV ～ +30mV Sensitivity: >0.2uV/grad Internal Resolution: Approximately 520,000 counts Display Resolution: Can be selected between 500-100,000 System Linearity: Within 0.01% of FS Loadcell excitation Voltage: +5 V (MAX current: 85mA) Loadcell Sensitivity: 0.3mV/V --- 3mV/V (must be fit to >0.2uV/display grad.) Input Resistor: ≥60 Ω...

  • Page 16: Declarations Of Compliance

    A copy of the original signed declaration for this instrument is available from the UK address below. Contact Information & Technical Support UK and Europe Salter Brecknell Weighing Products USA Salter Brecknell Weighing 1000 Armstrong Drive P.O. Box 9533, Smethwick,...
