B220 Counting Scale
User's Manual
76103-449 Issue 1
10/16/01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B220 and is the answer not in the manual?

Questions and answers

Related Manuals for Salter Brecknell B220

Summary of Contents for Salter Brecknell B220

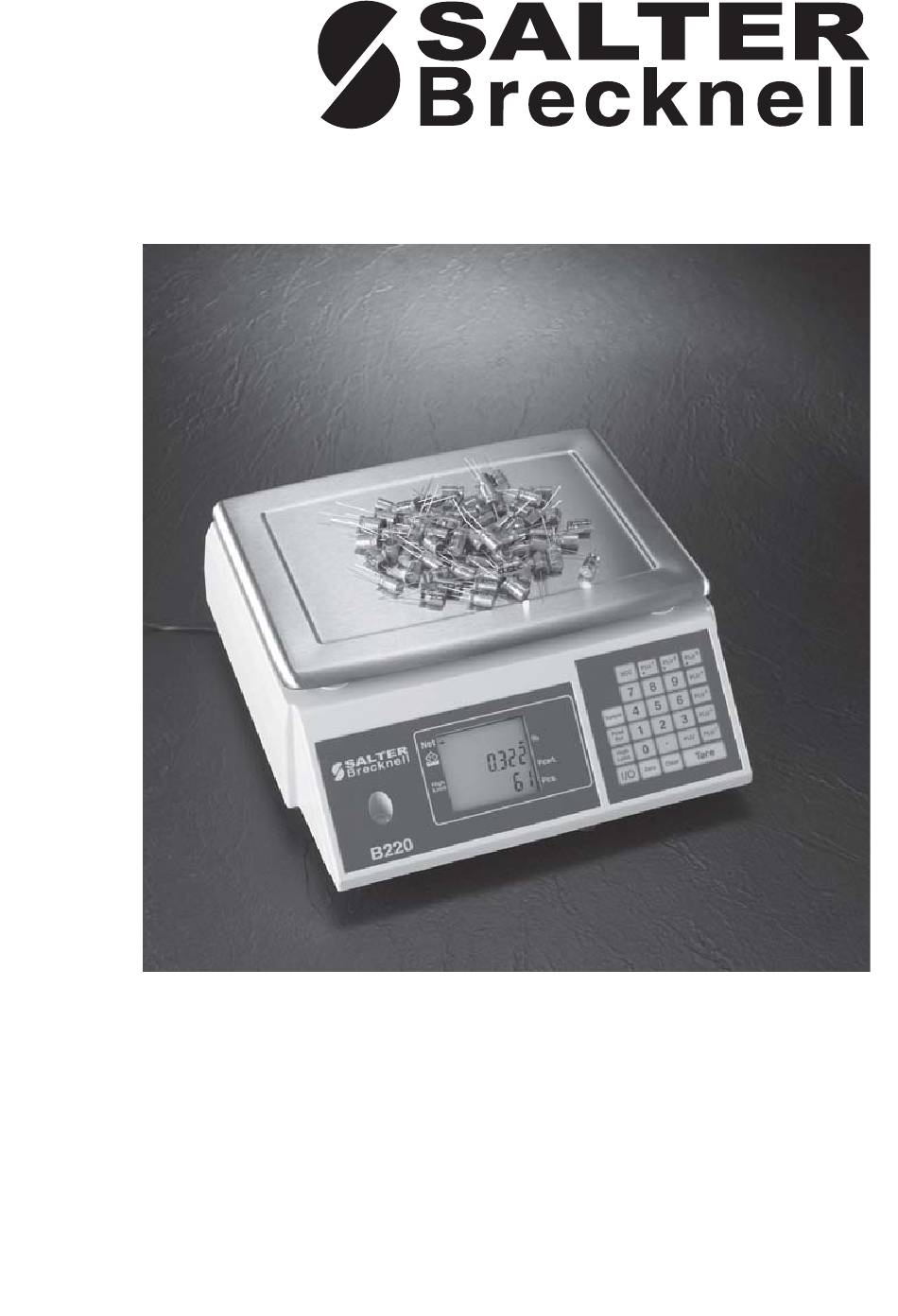

  • Page 1 B220 Counting Scale User’s Manual 76103-449 Issue 1 10/16/01...
  • Page 2 Risk of electrical shock. Do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel. Salter Brecknell reserves the right to change specifications at any time. 10/09/01 B220_U.P65 B220 Counting Scale User’s Manual...

  • Page 3: Table Of Contents

    Changing a PLU Tare ................20 Protecting a PLU ..................21 Calibration ....................... 21 To Calibrate the B220 ................21 To Revert to Factory Calibration .............. 21 Acceptable Calibration Weights .............. 22 Pages are numbered consecutively beginning with the cover page.
  • Page 4 B220 Counting Scale User’s Manual...

  • Page 5: Introduction

    Introduction This manual covers the operation of the B220 parts counting scale by Salter Brecknell. Major sections of the manual begin with black barred text as seen above. Minor section headings appear in the left column along with important notes and warnings.

  • Page 6: B220 Front Panel

    E 103 Tare failed. Remove weight from scale and long press the Clear key. The front panel of the B220 is made up of the keypad, B220 Front Panel for entering information, and the display. The keypad of the B220 is shown in Figure 1. The display window is shown in Figure 2.
  • Page 7 Use this key to enter or recall a PLU for PLU memory slots 1-35. Use these keys to enter numbers for tares, piece weights, etc. B220 Counting Scale User’s Manual...
  • Page 8 Net. When you are in the counting mode the screen will display the information shown in Figure 3. Figure 3 Count mode display information B220 Counting Scale User’s Manual...

  • Page 9: Using The Scale

    To perform a tare, place the Using Tares container or object to be tared on the scale platform and short press the Tare key. . . The Net annunciator lights and the display shows zero weight. B220 Counting Scale User’s Manual...

  • Page 10: Sampling Parts For Counting

    Sample in a following section. key. . . The weight of the samples is shown on the middle line of the display. The number of items is shown on the bottom line of the display. B220 Counting Scale User’s Manual...
  • Page 11 Short press the Sample key. . . The weight and count of all the items on the scale is displayed. 4. The scale is ready to count. B220 Counting Scale User’s Manual...

  • Page 12: Resampling

    Clearing the Active Short press the Pcwt/Rcl key and short press the Clear key while the piece weight is displayed. The piece Piece Weight weight is deleted and the weight is displayed. B220 Counting Scale User’s Manual...

  • Page 13: Using The High Limit Alarm

    PLUs for the first seven of the 35 PLUs. You should assign the most commonly counted items in your inventory to these 7 keys. Below are instructions for creating, recalling and clearing PLUs. B220 Counting Scale User’s Manual...
  • Page 14 2. Create a tare (if so desired) by one of the methods covered in the section Using Tares. 3. Long press the PLU hot key where you want to store the PLU. . . The PLU is created and stored. B220 Counting Scale User’s Manual...

  • Page 15: Recalling A Plu Using The Plu Key

    Using long press the Clear key then long press the PLU a PLU hot key hot key you want cleared. . . The information from that memory slot is cleared. B220 Counting Scale User’s Manual...

  • Page 16: Accumulator Function

    The B220 has an accumulator feature which allows you Accumulator to add together or accumulate counts of items to keep a Function running total of items counted so far. You can store up to 9999 accumulations and a total count of 9,999,999.

  • Page 17: Management Mode

    Management Mode Management mode is a menu structure you enter to set various options in the B220. The display will look similar to that shown in Figure 4 when you are in management mode. Figure 4 Management mode display sample...

  • Page 18: Beeper Alarm

    0 = off 1 = on Go to branch 19, sub-branch 03 Error Beeper 0 = off 1 = on Go to branch 19, sub-branch 04 Changing Beeper Volume 0 = Quiet 1 = Loud B220 Counting Scale User’s Manual...

  • Page 19: Changing Backlight Time

    50 = ½ second Go to branch 61, sub-branch 00. Enter the minimum Changing Mini- sample weight in grams on a KG scale and in pounds mum Sample on an LB scale. Weight For example: 1 lb B220 Counting Scale User’s Manual...

  • Page 20: Changing Manual Resampling Range

    PLU 20 = 120 Go to PLU branch number (example shown is PLU 5). Changing a PLU Sub-branch 02 Sub-branch 03 Tare Enter the tare weight Enter the number of (grams shown below) decimal places B220 Counting Scale User’s Manual...

  • Page 21: Protecting A Plu

    Go to PLU branch number (example shown is PLU 5), Protecting a PLU sub-branch 4. 0 = Not protected 1 = Protected Calibration Follow these procedures to calibrate your B220. To Calibrate the 1. Press the On/Off key B220 then press the Clear key. . .

  • Page 22: Acceptable Calibration Weights

    4 kg to 30 kg in 1 kg increments 15 lb 2 lb to 15 lb in 1 lb increments 30 lb 4 lb to 30 lb in 1 lb increments 60 lb 8 lb to 60 lb in 1 lb increments B220 Counting Scale User’s Manual...
  • Page 23 B220 Counting Scale User’s Manual...
  • Page 24 Salter Brecknell Weighing 3620 Central Ave. NE Minneapolis, MN 55418 Phone: 800-637-0529/612-781-4211 Fax: 612-781-4320 Website: salterbrecknell.com...
