Salter Brecknell C3225 User Manual

Checkweighing scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

C3225
Checkweighing scale

User Guide

MULTI-LINGUAL
76103-555 Issue 0
14.03.2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C3225 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Salter Brecknell C3225

Summary of Contents for Salter Brecknell C3225

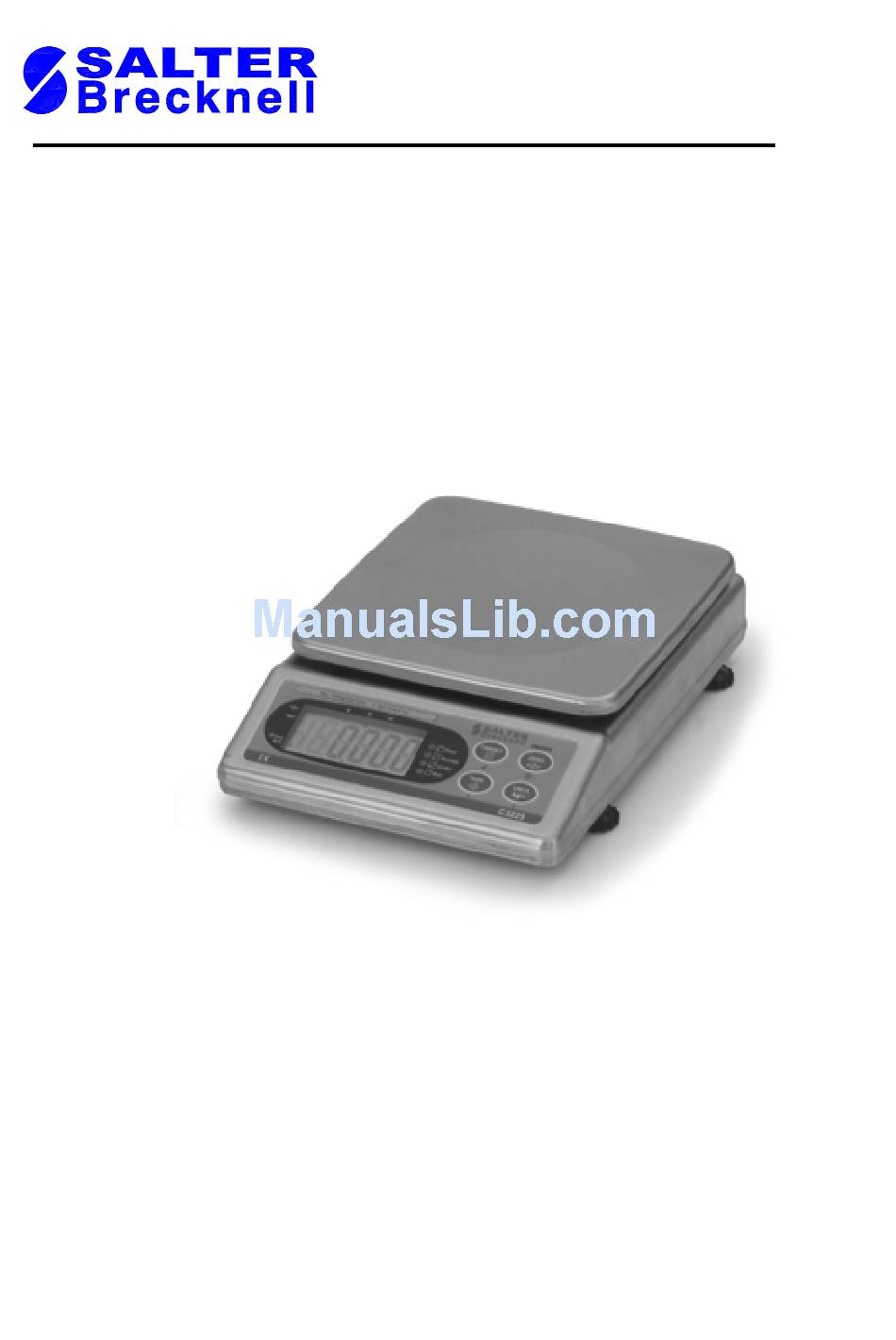

  • Page 1: User Guide

    C3225 Checkweighing scale User Guide MULTI-LINGUAL 76103-555 Issue 0 14.03.2002...
  • Page 2 © Salter Brecknell Weighing 2002. All rights reserved. The information contained herein is the property of Salter Brecknell Weighing and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorised by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.

  • Page 3: Table Of Contents

    3.4 Check weighing 3.5 Setting checkweigh limits Main configuration menu 4.1 Overview 4.2 Navigating the configuration menu 4.3 Configuration options 4.4 Auto off / Audio beep Error displays 5.1 Weighing errors 5.2 Other errors Foot pedal operation C3225 Checkweigher - User guide...
  • Page 4 Table of contents Battery charging Appendix A Latitude compensation maps C3225 Checkweigher - User guide...

  • Page 5: Warnings

    The outside of products waterproofed to IP65, IP66 and IP67 may be washed down with water containing a small amount of a proprietary detergent. C3225 Checkweigher - User guide...

  • Page 6: Declaration Of Conformity

    EMC Directive EMC 89/336/EEC Low Voltage Directive LVD 73/23/EEC The applicable harmonised EN60950, EN50081–1, standards are: EN50082–1 A copy of the original signed declaration for this instrument is available from: Salter Brecknell Weighing, P.O. Box 9533, Smethwick, West Midlands, B66 2TE...
  • Page 7 Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. C3225 Checkweigher - User guide...
  • Page 8 C3225 Checkweigher - User guide...

  • Page 9: Display And Keypad

    Display and keypad 1. Display 2. Low battery LED 3. Under weight LED 4. Over weight LED 5. Weight in range LED 6. Target Key 7. Tare Key 8. On/off / Zero key 9. Units select key C3225 Checkweigher - User guide...

  • Page 10: Latitude Compensation

    The scale can then compensate accordingly. At initial power up the scale will show. Example displays 1. Press To cycle through the available zones. 2. Press to accept. The scale will then restart. C3225 Checkweigher - User guide...

  • Page 11: Basic Operation

    Basic operation - 3 Basic operation Power on/Power off To switch the scale ON Example displays To switch the scale OFF Press and hold for 5 seconds. C3225 Checkweigher - User guide...

  • Page 12: Weighing

    3 - Basic operation Weighing Basic weighing 1. Switch on the scale. Example displays 2. Apply commodity. 3. Take reading. 4. Remove commodity. Selecting units Press To cycle between g, lb and oz. Zeroing the scale Press C3225 Checkweigher - User guide...

  • Page 13: Tare

    Basic operation - 3 Tare 1. Ensure scale reads zero, press zero if Example displays necessary. 2. Apply container. 3. Press tare. 4. Apply commodity. 5. Take reading. 6. Remove commodity and container. 7. Press tare to cancel. C3225 Checkweigher - User guide...

  • Page 14: Check Weighing

    2. Press target To toggle between checkweigh/non checkweigh modes. 3. If required, apply container and tare. See 3.3 - ’Tare’. 4. Gradually apply commodity, whilst checking LED indicators. Weight over limit Weight under limit Weight within limits C3225 Checkweigher - User guide...

  • Page 15: Setting Checkweigh Limits

    Basic operation - 3 Setting checkweigh limits 1. Press and hold target. Example displays Set upper limit 2. Press the tare key to cycle through the display digits, press units to increment the value. C3225 Checkweigher - User guide...
  • Page 16 3 - Basic operation 3. Press target to accept. 4. Set lower check weigh limit in the same way as shown in steps to 5. The Scale will then return to checkweigh / normal weighing mode, as appropriate. C3225 Checkweigher - User guide...

  • Page 17: Main Configuration Menu

    “CAL - Calibration” on page 15 Gram mode Ounce mode Pound mode Calibration weight 3kg 15kg 12lb 30lb GRES Gram resolution IRES Pound resolution 0.01 0.005 0.002 0.001 Default settings TRADE Sets for legal trade Yes Default capacity 15kg C3225 Checkweigher - User guide...

  • Page 18: Navigating The Configuration Menu

    Press and hold for 5 seconds. To navigate configuration mode 1. Press tare to cycle through functions. 2. Press units to access function. 3. Press tare to cycle through options. 4. Press Target to accept and proceed. C3225 Checkweigher - User guide...

  • Page 19: Configuration Options

    Main configuration menu - 4 Configuration options CAL - Calibration 1. Enter configuration mode. Example displays Press and hold for 5 seconds. 2. Press units key to start calibration process. 3. Select origin zone. 4. Press target to accept C3225 Checkweigher - User guide...
  • Page 20 Example displays 6. Apply appropriate calibration weight. 7. Press zero/on/off key. 8. Select the d-zone. 9. Press target to accept. The scale will then display as shown for a few seconds before returning to normal operation. C3225 Checkweigher - User guide...
  • Page 21 1. Enter configuration mode. Example displays Press and hold for 5 seconds. 2. Select gram mode. 3. Press units to access function. 4. Press tare to cycle through options. 5. Press target to accept and proceed. C3225 Checkweigher - User guide...
  • Page 22 To enable or disable pounds, as an available weighing unit. 1. Enter configuration mode. Press and hold for 5 seconds. 2. Select pound mode. 3. See “g - Gram mode” on page 17 selection of ‘On/Off’. C3225 Checkweigher - User guide...
  • Page 23 1. Enter configuration mode. Example displays Press and hold for 5 seconds. 2. Select calibration weight. 3. Press units to access function. 4. Press tare to cycle through options. 5. Press target to accept and proceed. C3225 Checkweigher - User guide...
  • Page 24 1. Enter configuration mode. Example displays Press and hold for 5 seconds. 2. Select GRES mode. 3. Press units to access function. 4. Press tare to cycle through options. 5. Press target to accept and proceed. C3225 Checkweigher - User guide...
  • Page 25 1. Enter configuration mode. Example displays Press and hold for 5 seconds. 2. Select IRES mode. 3. Press units to access function. 4. Press tare to cycle through options. 5. Press target to accept and proceed. C3225 Checkweigher - User guide...
  • Page 26 UNITS g- ON lb- ON oz- ON 3kg or 6lb GRES 0.5g IRES 0.001lb 0.002lb TRAD Not user selectable UNITS g- ON lb- ON oz- ON 6kg or 12lb GRES IRES 0.002lb 0.005lb TRAD Not user selectable C3225 Checkweigher - User guide...
  • Page 27 CAUTION: Setting the scale to trade legal will lock out all configuration options. Configuration will no longer be possible from the keypad. CAP - Capacity CAUTION: Qualified service persons only. Use of this option may render the scale unable to weigh. C3225 Checkweigher - User guide...
  • Page 28 1. Enter configuration mode. Example displays Press and hold for 5 seconds. 2. Select end from the available options. 3. Press tare to cycle through yes/no. 4. Press target to accept and proceed. C3225 Checkweigher - User guide...

  • Page 29: Auto Off / Audio Beep

    1. Enter auto off/audio beep set up. Example displays Press and hold for 5 seconds. 2. Press units to select auto off function. 3. Press tare to cycle through options. 4. Press target to accept and proceed. C3225 Checkweigher - User guide...
  • Page 30 The audio beep is used in check weighing mode, to indicate when the weight is within the set limits. Use this option to turn the beeper on or off. 1. Enter auto off/audio beep set up. Press and hold for 5 seconds. C3225 Checkweigher - User guide...
  • Page 31 Main configuration menu - 4 2. Press tare to cycle through options. Example displays 3. Press units to select beep function. 4. Press tare to cycle through options. 5. Press target to accept and proceed. C3225 Checkweigher - User guide...
  • Page 32 4 - Main configuration menu 6. Press tare to cycle through options. Example displays 7. Select end. Press target key to exit. C3225 Checkweigher - User guide...

  • Page 33: Error Displays

    Display when the weight applied is above the maximum which can be weighed. Other errors Battery low Display when the battery is nearly depleted, and requires re-charging. Eprom error Zero count error Span count error Calibration error C3225 Checkweigher - User guide...

  • Page 34: Foot Pedal Operation

    6 - Foot pedal operation Foot pedal operation Switch the scale on Switch scale off Press and hold for 5 seconds. Tare Press with weight on scale. Tare cancel Press with no weight on scale. C3225 Checkweigher - User guide...

  • Page 35: Battery Charging

    CAUTION: Connect the re-charger to the scale, BEFORE connection to the electrical supply. The charger unit is assembled as shown below. C3225 Checkweigher - User guide...
  • Page 36 7 - Battery charging C3225 Checkweigher - User guide...

  • Page 37: Latitude Compensation Maps

    Appendix A - Latitude compensation maps Appendix A Latitude compensation maps Europe 61° 58 ° 55° 52° 49° 46° 43° 40° 37° C3225 Checkweigher - User guide...
  • Page 38 Appendix A - Latitude compensation maps Seattle Boston Minneapolis Detroit San Francisco Chicago Philadelphia Washington Denver St. Louis Los Angeles Memphis Atlanta Dallas Houston Miami Australasia Darwin Cairns Alice Springs Brisbane Perth Sydney Adelaide Canberra Auckland Melbourne Wellington Christchurch C3225 Checkweigher - User guide...
  • Page 40 The address of your Salter Brecknell centre is This document contains a general guide only of the product and shall not form part of any contract unless specifically agreed by Salter Brecknell Weighing in writing in each case on the Order Acknowledgement. The specification of the products described herein may vary from time to time and may be altered without notice.
