- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VS-42HDMI 4x2 HDMI Matrix Switcher...
-
Page 2: Table Of Contents
Figure 6: Internet Protocol (TCP/IP) Properties Window Tables Table 1: Terminology Used in this User Manual Table 2: VS-42HDMI 4x2 HDMI Matrix Switcher Front Panel Features Table 3: VS-42HDMI 4x2 HDMI Matrix Switcher Rear Panel Features Table 4: Crossover Cable RJ-45 PINOUT... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Downloadable from our Web site at http://www.kramerelectronics.com 3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... -
Page 4: Quick Start
Getting Started 2.1 Quick Start This quick start chart summarizes the basic setup and operation steps. KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Overview
Overview Overview The VS-42HDMI is a high quality 4x2 matrix switcher for HDMI signals. In particular, the VS-42HDMI: Supports up to 1.65Gbps bandwidth per graphic channel Has two sets of input selector buttons (eight in total) to switch to the outputs... -
Page 6: About Hdmi
High-Definition Multimedia Interface (HDMI) is an uncompressed all-digital audio/video interface, widely supported in the entertainment and home cinema industry. It delivers the highest high-definition image and sound quality. Note that Kramer Electronics Limited is an HDMI Adopter and an HDCP Licensee In particular, HDMI:... -
Page 7: Recommendations For Best Performance

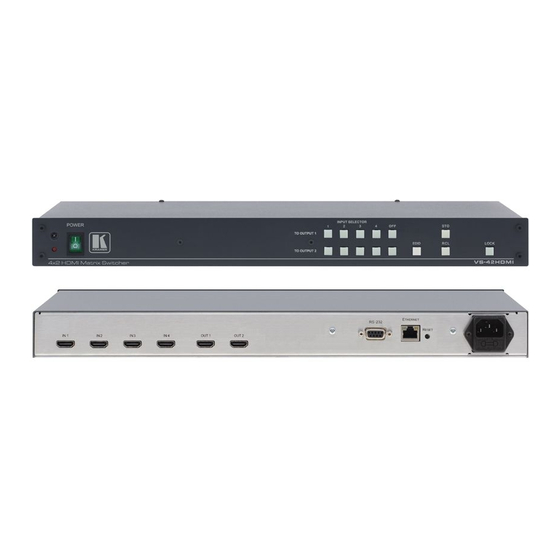

Protocol (TCP/IP) Your VS-42HDMI 4x2 HDMI Matrix Switcher Figure 1 illustrates the front and rear panels of the VS-42HDMI. Table 2 and Table 3 define the front and rear panels of the VS-42HDMI, respectively. -
Page 8: Figure 1: Vs-42Hdmi 4X2 Hdmi Matrix Switcher
Your VS-42HDMI 4x2 HDMI Matrix Switcher Figure 1: VS-42HDMI 4x2 HDMI Matrix Switcher KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Table 2: Vs-42Hdmi 4X2 Hdmi Matrix Switcher Front Panel Features
Your VS-42HDMI 4x2 HDMI Matrix Switcher Table 2: VS-42HDMI 4x2 HDMI Matrix Switcher Front Panel Features Feature Function IR Receiver The red LED lights when receiving signals from the Infra-red remote control transmitter POWER Switch Illuminated switch for turning the unit ON or OFF... -
Page 10: Installing The Vs-42Hdmi On A Rack
The machine is earthed (grounded) in a reliable way and is connected only to an electricity socket with If you are using a Kramer rack adapter grounding. Pay particular attention to supply kit (for a machine that is not 19"), see... -
Page 11: Connecting A Vs-42Hdmi 4X2 Hdmi Matrix Switcher
HDMI input to route to the outputs. 1 Switch OFF the power on each device before connecting it to your VS-42HDMI. After connecting your VS-42HDMI, switch on its power and then switch on the power on each device... -
Page 12: Figure 2: Connecting A Vs-42Hdmi 4X2 Hdmi Matrix Switcher
Connecting a VS-42HDMI 4x2 HDMI Matrix Switcher DVD Player 1 DVD Player 3 LCD TV LCD TV DVD Player 2 DVD Player 4 with Built-in with Built-in Speakers 1 Speakers 2 Figure 2: Connecting a VS-42HDMI 4x2 HDMI Matrix Switcher KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 13: Operating The Vs-42Hdmi
Operating the VS-42HDMI Operating the VS-42HDMI This section describes how to: Acquire the EDID (see section 7.1) Store and recall a setting (see section 7.2) Control the machine via RS-232 (see section 7.3) Control the machine via the ETHERNET port (see section 7.4) 7.1 Acquiring the EDID... -
Page 14: Storing And Recalling A Setting
Operating the VS-42HDMI 7.2 Storing and Recalling a Setting You can use the STO and RCL buttons to store the current setup and then recall it. To store a setting: 1. Set the machine to the desired setting. For example, press INPUT SELECTOR button 3 on the TO OUTPUT 1 line and INPUT SELECTOR button 1 on the TO OUTPUT 2 line. -
Page 15: Controlling Via Rs-232 (For Example, Using A Pc)
To connect a PC to the VS-42HDMI unit, using the Null-modem adapter provided with the machine (recommended): Connect the RS-232 DB9 rear panel port on the VS-42HDMI unit to the Null-modem adapter and connect the Null-modem adapter with a 9-wire... -
Page 16: Controlling Via Ethernet
Connecting the ETHERNET Port directly to a PC (Crossover Cable) You can connect the Ethernet port of the VS-42HDMI to the Ethernet port on your PC, via a crossover cable with RJ-45 connectors, as Table 4 and Figure 4 define. -
Page 17: Figure 5: Local Area Connection Properties Window
Operating the VS-42HDMI 3. Right-click Local Area Connection Properties. 4. Select Properties. The Local Area Connection Properties window appears. 5. Select the Internet Protocol (TCP/IP) and click the Properties Button (see Figure 5). Figure 5: Local Area Connection Properties Window 6. -
Page 18: Connecting The Ethernet Port Via A Network Hub (Straight-Through Cable)
Power cord, IR transmitter OPTIONS: Kramer HDMI cables 1 Specifications are subject to change without notice 2 For best results, use Kramer cables such as the C-HDMI/HDMI series, the C-HDMI-DVI series and/or our HDMI over fiber optics C-FOHM/FOHM series KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 19: Kramer Protocol 2000
Kramer Protocol 2000 Kramer Protocol 2000 The VS-42HDMI is compatible with Kramer’s Protocol 2000 (version 0.46) (below). This RS-232/RS-485 communication protocol uses four bytes of information as defined below. For RS-232, a null-modem connection between the machine and controller is used. The default data rate is 9600 baud, with no parity, 8 data bits and 1 stop bit. -
Page 20: Table 8: Instruction Codes For Protocol 2000
MACHINE ADDRESS 1 - for audio REQUEST WHETHER SETUP # 0 - for checking if setup is defined SETUP IS DEFINED / 1 - for checking if input is valid VALID INPUT IS Input # DETECTED KRAMER: SIMPLE CREATIVE TECHNOLOGY... - Page 21 Kramer Protocol 2000 INSTRUCTION DEFINITION FOR SPECIFIC INSTRUCTION NOTE DESCRIPTION INPUT OUTPUT ERROR / BUSY For invalid / valid input (i.e. 0 - error 9, 25 OUTPUT byte = 4 or OUTPUT byte 1 - invalid instruction = 5), 2 - out of range...
- Page 22 OUTPUT byte set as 7, the VIS source is the output selected using the OUTPUT byte. Note also, that on some machines the sync source is not software selectable, but is selected using switches, jumpers, etc! KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 23 Kramer Protocol 2000 NOTE 6 – If INPUT is set to 127 for these instructions, then, if the function is defined on this machine, it replies with OUTPUT=1. If the function is not defined, then the machine replies with OUTPUT=0, or with an error (invalid instruction code).
- Page 24 (in real-time). For example, if input 3 is detected as invalid, the unit will send the HEX codes If input 7 is detected as valid, then the unit will send HEX codes KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 25 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 26 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
