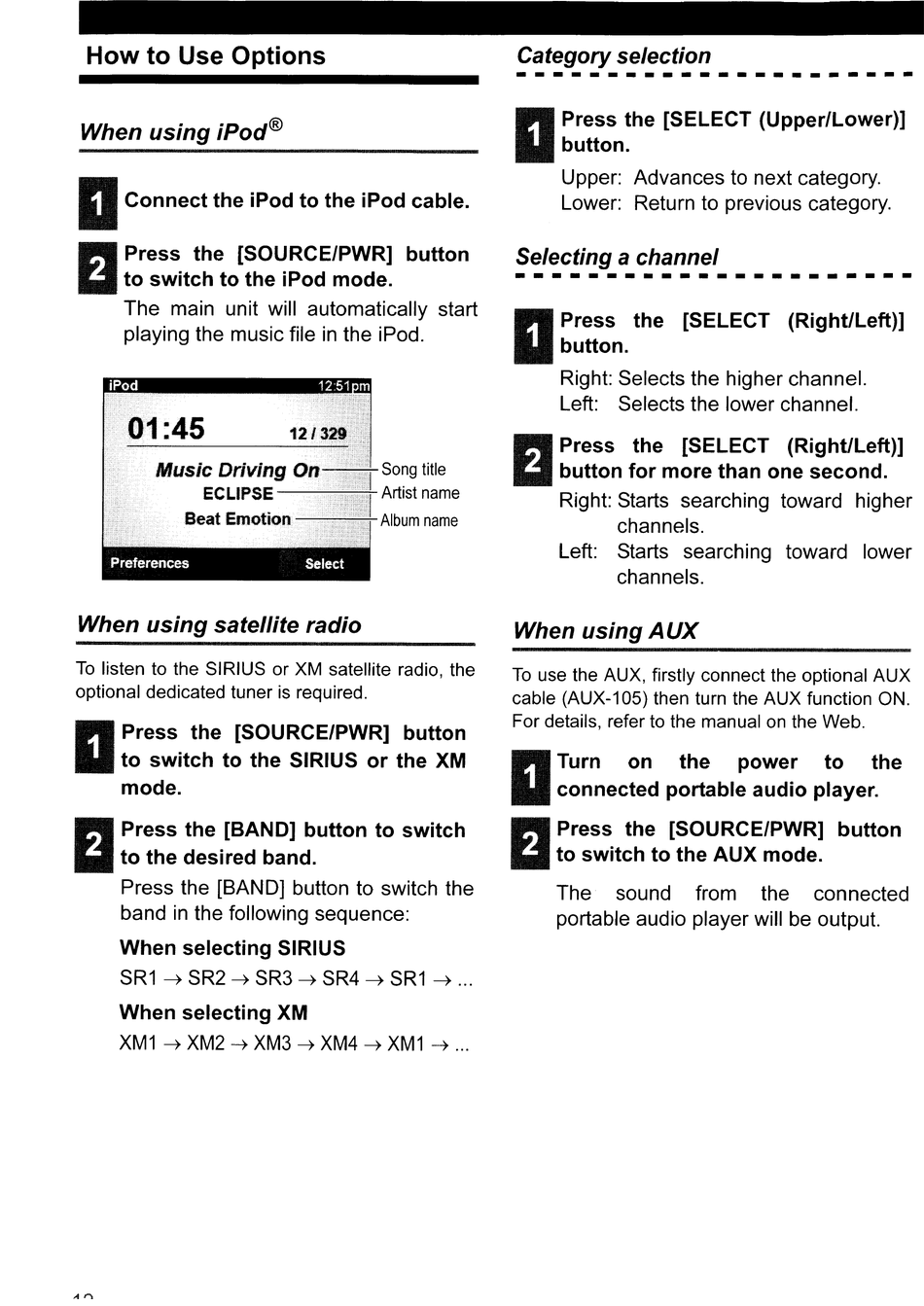

How to Use Options
When using iPod®
II
Connect the iPod to the iPod cable.
I!I
Press the [SOURCE/PWR] button
iii
to switch to the iPod mode.
The main unit will automatically start
playing the music file in the iPod.
Music Driving
On~~
Song title
ECLIPSE Artist name
Beat Emotion Album name
When using satellite radio
To listen to the SIRIUS or XM satellite radio, the
optional dedicated tuner is required.
II
Press the [SOURCE/PWR] button
to switch to the SIRIUS or the XM
mode.
I!I
Press the [BAND] button to switch
I i
to the desired band.
Press the [BAND] button to switch the
band in the following sequence:
When selecting SIRIUS
SR1 ~ SR2 ~ SR3 ~ SR4 ~ SR1 ~ ...
When selecting XM
XM1 ~XM2~XM3~XM4~XM1 ~ ...
12
Category selection
---------------_.-----
II
Press the [SELECT (Upper/Lower)]
button.
Upper: Advances to next category.
Lower: Return to previous category.
Selecting
a
channel
----------------------
II
Press the [SELECT (Right/Left)]
button.
Right: Selects the higher channel.
Left: Selects the lower channel.
I!I
Press the [SELECT (Right/Left)]
111
button for more than one second.
Right: Starts searching toward higher
channels.
Left: Starts searching toward lower
channels.
When using AUX
To use the AUX, firstly connect the optional AUX
cable (AUX-105) then turn the AUX function ON.
For details, refer to the manual on the Web.
II
Turn on the power to the
connected portable audio player.
I!I
Press the [SOURCE/PWR] button
iii
to switch to the AUX mode.
The sound from the connected
portable audio player will be output.
