AR7000 User Guide
The AR7000 full range 7-channel receiver features DSM2 ™ technology and is compatible with
all Spektrum and JR aircraft radios that support DSM2 technology including: JR12X, X9303,
™ ®
Spektrum DX7, DX6i, DX5e and Module Systems.
Note: The AR7000 receiver is not compatible with the Spektrum DX6 parkflyer transmitter.
Features
• 7-channel full range receiver
• Patented MultiLink receiver technology
• Includes one internal and one remote receiver
• SmartSafe failsafe system
™
• QuickConnect with Brownout Detection
™
• Flight Log compatible (optional)
Applications
Full range up to 7-channel aircraft including:
• All types and sizes of glow, gas and electric powered airplanes
• All types and sizes of no-powered gliders
• All types and sizes of glow, gas and electric powered helicopters
Note: Not for use in airplanes that have full carbon fuselages. Not for use in airplanes that
have significant carbon or conductive structures.
Specifications:
Type: DSM2 Full Range receiver
Channels: 7
Modulation: DSM2
Dimensions: 0.996 in x 1.85 in x 0.622 in (25.3mm x 47mm x 15.8mm)
Weight: .49 oz (14 g)
Voltage range: 3.5 to 9.6V
Resolution: 1024
Compatibility: All DSM2 aircraft transmitters and module systems
Patented MultiLink ™ Receiver Technology

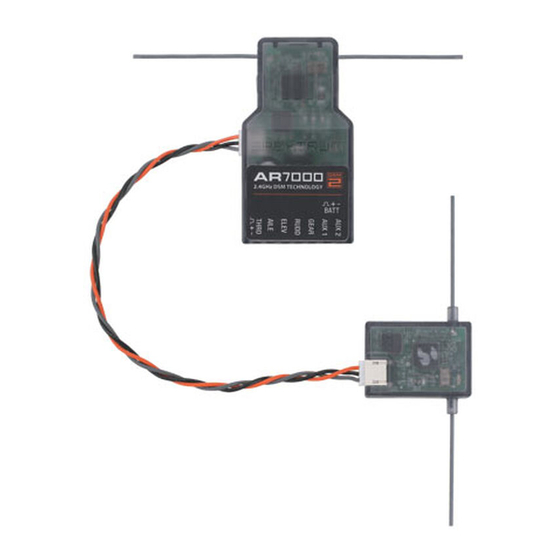

The AR7000 incorporates dual receivers, offering the security of dual path RF redundancy. An
internal receiver is located on the main printed circuit board, while a second external receiver
is attached to the main board with a 6-inch extension. By locating these receivers in slightly
different locations in the aircraft, each receiver is exposed to its own RF environment, greatly
improving path diversity (the ability for the receiver to see the signal in all conditions).
Antenna Polarization
For optimum RF link performance it's important that the antennas be mounted in an orientation
that allows for the best possible signal reception when the aircraft is in all possible attitudes and
positions. This is known as antenna polarization. The antennas should be oriented perpendicular
to each other; typically one vertical and one horizontal (see Receiver Installation). The remote
receiver's antenna should be mounted in a position perpendicular at least 2 inches away from
the main receiver's antenna using double-sided foam tape.

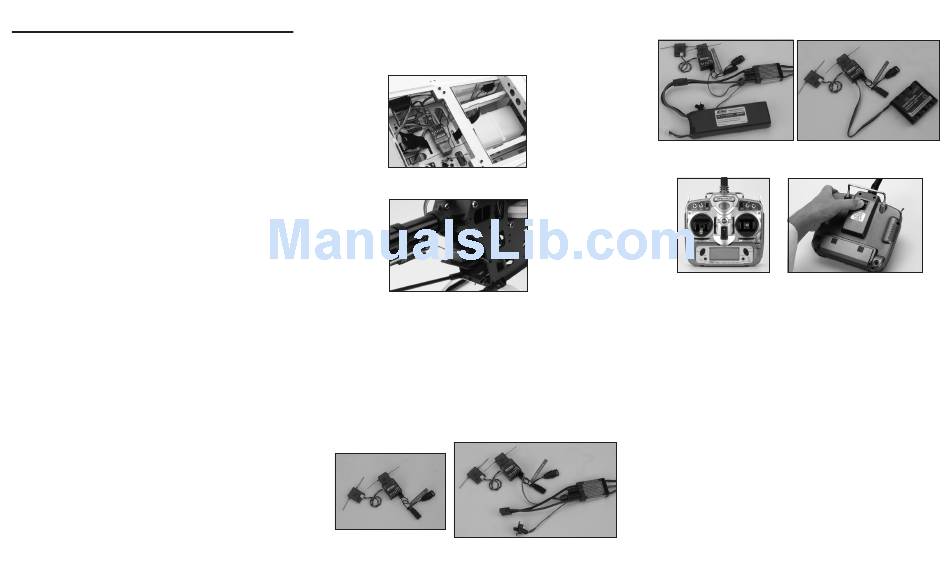

Receiver Installation
In gas and glow aircraft install the main receiver using the same method you would use to install
a conventional receiver in your aircraft. Typically, wrap the main receiver in protective foam and
fasten it in place using rubber bands or hook and loop straps.
Alternately, in electric airplanes or helicopters, it's acceptable to use thick double-sided foam
tape to fasten the main receiver in place.
Mounting the remote receiver in a slightly different location, even just inches away from the
primary receiver, gives tremendous improvements in path diversity. Essentially, each receiver
sees a different RF environment and this is key to maintaining a solid RF link, even in aircraft
that have substantial conductive materials (e.g. larger gas engines, carbon fiber, pipes, etc.),
which can weaken the signal.
Using servo tape, mount the remote receiver keeping the remote antennas at least 2 inches
away from the primary antenna. Ideally, the antennas will be oriented perpendicularly to each
other. In airplanes, we've found it best to mount the primary receiver in the center of the
fuselage on the servo tray and to mount the remote receiver to the side of the fuselage or in the
turtle deck.
In helicopters, there is generally enough room on the servo tray to achieve the necessary
separation. If necessary a mount can be fashioned using clear plastic to mount the external
receiver.
Important- Y-Harnesses and Servo Extensions
When using Y-harness or servo extensions it's important to use standard non-amplified
Y-harnesses and servo extensions as this can/will cause the servos to operate erratically or not
function at all. Amplified Y-harnesses were developed several years ago to boost the signal for
some older PCM systems and should not be used with Spektrum equipment. Note that when
converting existing models to Spektrum be certain that all amplfied Y-harnesses and or servo
extensions are replaced with conventional non-amplified versions.
Binding
The AR7000 receiver must be bound to the transmitter before it will operate. Binding is the
process of teaching the receiver the specific code of the transmitter so it will only connect to
that specific transmitter.
1.
To bind an AR7000 to a DSM2 transmitter, insert the bind plug in the BATT/BIND port on the
receiver.
Note: To bind an aircraft with an electronic speed controller that powers the receiver through
the throttle channel (ESC/BEC), insert the bind plug into the BATT/BIND port in the
receiver and the throttle lead into the throttle (THRO) port. Proceed to Step #2.
2.
Power the receiver. Note that the LED on the receiver should be flashing, indicating that the
receiver is in bind mode and ready to be bound to the transmitter.
3.
Move the sticks and switches on the transmitter to the desired failsafe positions (low throttle
and neutral control positions).
4.
Follow the procedures of your specific transmitter to enter Bind Mode, the system will
connect within a few seconds. Once connected, the LED on the receiver will go solid
indicating the system is connected.
5.
Remove the bind plug from the BATT/BIND port on the receiver before you power off the
transmitter and store it in a convenient place.
6.
After you've set up your model, it's important to rebind the system so the true low throttle
and neutral control surface positions are set.
IMPORTANT: Remove the bind plug to prevent the system from entering bind mode the next
time the power is turned on.
