- Page 1 AR410 User Guide AR410 Bedienungsanleitung Guide de L’utilisateur - AR410 AR410 Guidea Dell’utente...
-
Page 2: Warranty Registration

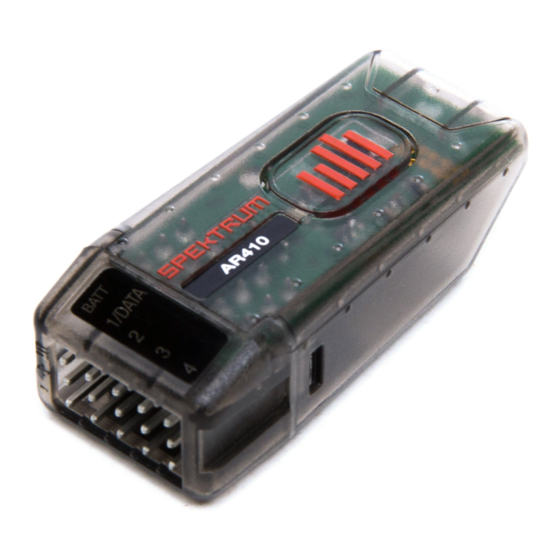

NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate... - Page 3 AR410 4-Channel Telemetry Receiver The Spektrum™ AR410 receiver is a full ® range telemetry receiver featuring DSM technology and is compatible with all ® Spektrum™ and JR aircraft radios that ® ® support DSM2 and DSMX technology. The AR410 receiver features fl y-by telemetry data for fl...
-
Page 4: Receiver Installation
AR410 Antenna The AR410 features an internal antenna design for easy installation in almost any model. Receiver Installation Installing the Receiver Install the receiver in the normal position recommended by the airplane’s manufacturer. Double-sided tape or foam can be used to secure the receiver in place. -
Page 5: Range Testing
SmartSafe + Hold Last Lower Throttle on transmitter Push and Hold Bind Button Power on Reciever Release Button once RX goes into Bind Mode (fl ashing LED) Place transmitter in Bind Mode and fi nish Binding. Preset Failsafe Move all sticks and switches on the transmitter to desired Failsafe position. Push and Hold Bind Button Power on Reciever Release Button after RX goes into Bind Mode (fl... -
Page 6: Receiver Power System Requirements
Advanced Range Testing For sophisticated models that have signifi cant conductive material in them, the Advanced range test using a fl ight log is recommended. The advanced range check will confi rm that the receiver is operating optimally and that the installation is optimized for the specifi... - Page 7 ™ How QuickConnect Techonlogy Works • When the receiver voltage drops below 3.5 volts the system ceases to operate. • When power is restored the receiver immediately attempts to reconnect. • If the transmitter was left on, the system reconnects typically in about 4/100 of a second.
- Page 8 Frequently Asked Questions on Spektrum 2.4GHz 1. Q: After I’ve bound the receiver to my transmitter, which do I turn on fi rst when I want to fl y? A: Either one. Every DSM 2.4GHz transmitter has a GUID (Globally Unique Identifier) code imbedded in its signal.
-
Page 9: Year Limited Warranty
1-Year Limited Warranty What this Warranty Covers - Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product purchased (the “Product”) will be free from defects in materials and workmanship for a period of 1 year from the date of purchase. ... - Page 10 need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative. Inspection or Services If this Product needs to be inspected or serviced and is compliant in the country you live and use the Product in, please use the Horizon Online Service Request...
-
Page 11: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair RequestForm/ Requests) 1608 Interstate Dr. United States Champaign, Illinois, Horizon Product of America productsupport@horizonhobby.com. 61822 USA Support (Product Technical 877-504-0233 Assistance) websales@horizonhobby.com... -
Page 12: Compliance Information For The European Union
(2) this device must accept any interference, Including interference that may cause undesired operation of the device. Compliance Information for the European Union Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED Directive. - Page 13 © 2018 Horizon Hobby, LLC. DSM, DSM2, DSMX, QuickConnect, ModelMatch, SmartSafe, Hangar 9 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. JR is a registered trademark of JR Americas. All other trademarks, service marks and logos are property of their respective owners.
