- Page 1 SR6300PM MS6X Telemetry Receiver Instruction Manual MS6X-Telemetrieempfänger-Bedienungsanleitung Manuel d’instructions du récepteur MS6X avec télémétrie Manuale di istruzioni del ricevitore MS6X con telemetria...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product. Meaning of Special Language...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SR6300PM RECEIVER DIAGRAM ..............4 MS6X RECEIVER INSTALLATION ..............5 BINDING AND CALIBRATING ................. 6 FAILSAFE ....................7 DISABLING MS6X TECHNOLOGY ..............7 MS6X TECHNOLOGY SETUP ................ 8 MS6X TUNING..................... 9 2.4GHZ TROUBLESHOOTING GUIDE ............12 TELEMETRY TROUBLESHOOTING GUIDE ............. 13 MS6X TROUBLESHOOTING GUIDE .............. -
Page 4: Sr6300Pm Receiver Diagram

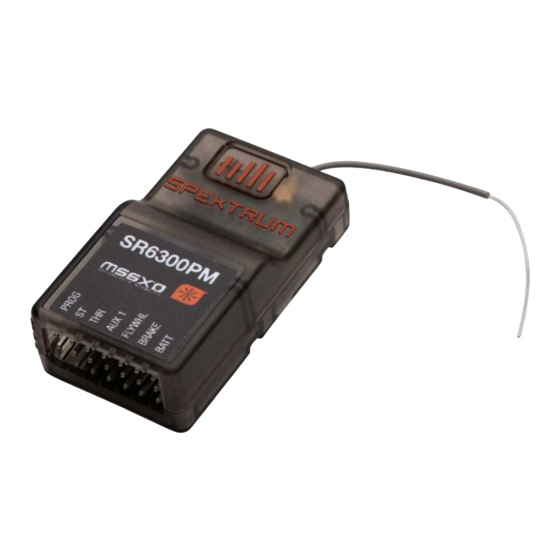

SR6300PM RECEIVER DIAGRAM Battery/ Programming Steering Port Throttle Port AUX 1 Port Bind Button AUX 2 Port AUX 3 Port AUX 4 Port Antenna POWERING THE RECEIVER WITH A SEPARATE RECEIVER PACK Connect the steering servo to the steering port (STR) Connect the throttle servo to the throttle port (THR) Connect the switch harness and a 3.5V–9.6V battery to the battery (BATT) port to power on receiver. -
Page 5: Ms6X Receiver Installation
NOTICE: Do not connect a dedicated receiver battery to the receiver along with an ESC (with a BEC, a feature which most ESCs include). When an ESC is powered on it provides the receiver with regulated power from the main battery through the throttle connection. -
Page 6: Binding And Calibrating
BINDING AND CALIBRATING Binding is the process of linking the SR6300PM receiver to your Spektrum transmitter. The MS6X features on the receiver can be enabled or disabled during the binding process. There is no bind plug on the SR6300PM, a button is used to put the receiver in bind mode. -
Page 7: Failsafe
IMPORTANT: You must rebind the transmitter and receiver if you: • change the servo reversing after binding • change the travel after binding • change the receiver mounting orientation • use the receiver with a different model memory • install the receiver in a different vehicle •... -
Page 8: Ms6X Technology Setup
MS6X TECHNOLOGY SETUP For the best MS6X performance, use the MS6X menu on your Spektrum transmitter to tune and manage MS6X settings. Order of operations for MS6X setup: Install the receiver in your vehicle Bind the vehicle and complete the calibration procedure. Set up servo sub trim, reversing and travel to suit your vehicle. -
Page 9: Ms6X Tuning
MS6X TUNING A value from 0 to 100 is used for three settings that affect tuning; steering gain, throttle gain, and priority. These values configure the receiver to your vehicle so you can tune it for optimal performance based on your driving style. It is normal for gain and priority tuning results to vary. - Page 10 Drive the vehicle through accelerated turns and observe how it responds. • If the vehicle slows down going into a turn, reduce the throttle gain. • To allow the vehicle to slide more with intentional wheel-spin, reduce the throttle gain. •...
- Page 11 RECEIVER FIRMWARE UPDATES If firmware updates are made available for the SR6300PM receiver, you can install the update yourself. The Spektrum USB programming cable (SPMA3065, not included) and a PC are required for updates. Go to the SR6300PM product page at SpektrumRC.com for update information and to register your receiver. Registration is required to download updates.
-
Page 12: 2.4Ghz Troubleshooting Guide
2.4GHZ TROUBLESHOOTING GUIDE Problem Possible Cause Solution Your transmitter and Move transmitter 8–12 feet away receiver are too close from receiver together You are near metal objects Move to an area with less metal The system The receiver is bound to a Make sure the correct model memory will not different model memory... -
Page 13: Telemetry Troubleshooting Guide
TELEMETRY TROUBLESHOOTING GUIDE Problem Possible Cause Solution You are using a transmitter Consider changing to a that does not include transmitter which includes No telemetry telemetry features telemetry options are available in the Select a different DSMR Your transmitter is in 5.5ms transmitter protocol, rebind and then mode... -
Page 14: 1-Year Limited Warranty
(iii) modification of or to any part of the Product, (iv) attempted service by anyone other than a Horizon Hobby authorized service center, (v) Product not purchased from an authorized Horizon dealer, (vi) Product not compliant with applicable technical regula- tions, or (vii) use that violates any applicable laws, rules, or regulations. - Page 15 directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Support Inquiry, or call the toll free telephone number referenced in the Warranty and Service Contact Information section to speak with a Product Support representative.
-
Page 16: Warranty Service And Contact Information
Sales 800-338-4639 Horizon Technischer service@ Hanskampring 9 Service horizonhobby.eu D 22885 Barsbüttel, Sales: Horizon Hobby +49 (0) 4121 Germany GmbH 2655 100 FCC INFORMATION FCC ID: BRWSPMSR6300PM Supplier’s Declaration of Conformity SPMSR6300PM 6 Channel DSMR MS6X Telemetry Receiver This device complies with part 15 of the FCC Rules. Operation is subject to... -
Page 17: Ic Information
IC INFORMATION CAN ICES-3 (B)/NMB-3(B) IC: 6157A-SPMSR6300PM This device contains license-exempt transmitter(s)/receivers(s) that comply with Innovation, Science, and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following 2 conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 18: Compliance Information For The European Union
COMPLIANCE INFORMATION FOR THE EUROPEAN UNION EU Compliance Statement: Hereby, Horizon Hobby, LLC declares that the device is in compliance with the following: EU Radio Equipment Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.horizonhobby.com/content/support-render-compliance. - Page 20 MS6X, Active Vehicle Control, the SMART technology logo, Firma, DSM, DSM2, DSMR, Hangar 9, QuickConnect, ModelMatch, SmartSafe and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
