Models:
GO24SP-NG or LP, GO30SP-NG or LP
GO24SP-REM-NG or LP, GO30SP-REM-NG or LP
GO35SP-REM-NG or LP,GO40SP-REM-ng or LP
GO24-IPI-NG or LP, GO30-IPI-NG or LP
GO35-IPI-NG or LP, GO40-IPI-NG or LP
Grand Oak Gas Log Sets
Check with your local building code agency before you begin installation to ensure compliance with local codes, including
the need for permits and follow-up inspections. If you encounter any problems regarding code approvals, or if you need
clarification of any of the instructions contained here, contact the Technical Services Dept., Hearth & Home Technologies
Inc., 20802 Kensington Blvd., Lakeville, MN 55044, www.hearthnhome.com.
•
Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fire may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance.
• What to do if you smell gas:
- Do not try to light any appliance.
- Do not touch any electrical switch. Do not
use any phone in your building.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas
supplier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or
the gas supplier.
Note: An arrow () found in the text signifies change in
content.
Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08
CAUTION
DO NOT DISCARD THIS MANUAL
Read, understand
•
and follow these
instructions for safe
i n s t a l l a t i o n a n d
operation.
•
•
•
•
• Keep clothing, furniture, draperies and other
In the Commonwealth of Massachusetts:
•
•
•
Installation and service of this
appliance should be performed by
qualified personnel. Hearth & Home
Technologies suggests NFI certified
or factory-trained professionals,
o r t e c h n i c i a n s
s u p e r v i s e d b y
an NFI certified
professional.
Leave this manual with
•
party responsible for
use and operation.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot during
operation and cool down.
Keep children away.
CAREFULLY SUPERVISE children in same room as
appliance.
Alert children and adults to hazards of high
temperatures.
Do NOT operate with protective barriers removed.
combustibles away.
This appliance must be installed by a licensed plumber
or gas fitter.
The chimney flue damper, when used with gas logs, will
be welded open or completely removed.
A CO detector shall be installed in the room where the
appliance is installed.
Installation
Instructions
Advertisement
Related Manuals for Hearth and Home Technologies GO24-IPI-LP
Summary of Contents for Hearth and Home Technologies GO24-IPI-LP

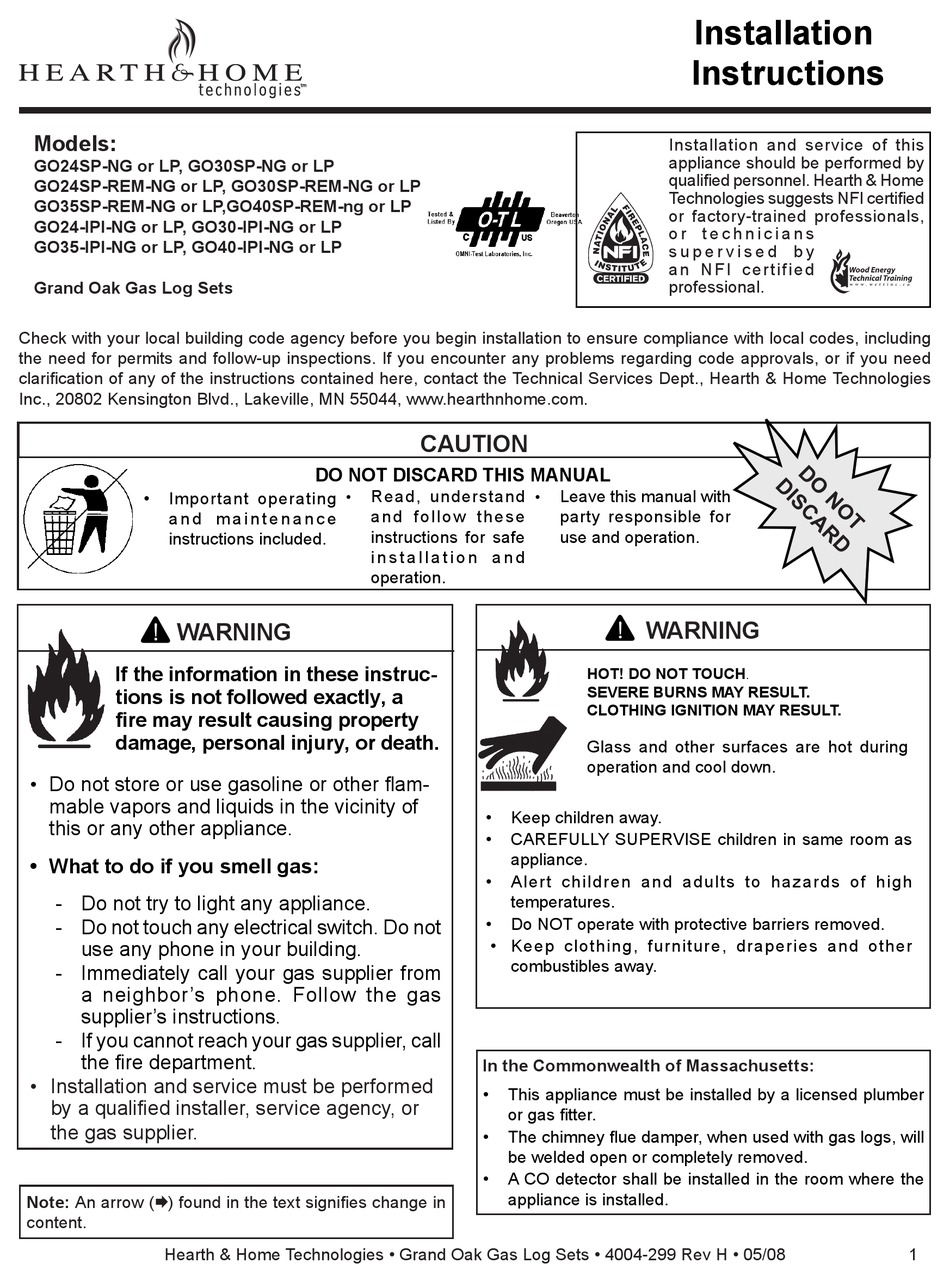

- Page 1 Models: GO24SP-NG or LP, GO30SP-NG or LP GO24SP-REM-NG or LP, GO30SP-REM-NG or LP GO35SP-REM-NG or LP,GO40SP-REM-ng or LP GO24-IPI-NG or LP, GO30-IPI-NG or LP GO35-IPI-NG or LP, GO40-IPI-NG or LP Grand Oak Gas Log Sets Check with your local building code agency before you begin installation to ensure compliance with local codes, including the need for permits and follow-up inspections.
- Page 2 Read this manual before installing or operating this appliance. Please retain this owner’s manual for future reference. Congratulations on selecting a Hearth & Home Technologies gas log set—an elegant and clean alternative to burning wood. The Hearth & Home Technologies gas log set you have selected is designed to provide the utmost in safety, reliability, and efficiency.
- Page 3 WARNING Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier. CAUTION Sharp Edges •...
- Page 4 • This appliance must have a screen in place while the appliance is in operation and, unless other provisions for combustion air are provided, the screen shall have an opening for introduction of combustion air. • Solid fuels shall not be burned in a fireplace where a decorative appliance is installed.
- Page 5 G. Negative Pressure Negative pressure results from the imbalance of air avail- able for the fireplace to operate properly. Causes for this imbalance include: • Exhaust fans (kitchen, bath, etc.). • Range hoods. • Combustion air requirements for furnaces, water heaters and other combustion appliances.
- Page 6 H. Inspect the Appliance and Components • Remove the contents from the carton labeled “Burner”. Attached to the burner are tags identifying the manufacturer name, serial number, model number (including gas log size), BTU ratings, gas type, etc. • Review the attached tags before proceeding. Ensure that all minimum fireplace dimension requirements are achieved using Table .
- Page 7 I. For Natural Gas Installation (for all units) • Pour sand into the burner pans to the point where the burner pipe is covered. See Figure 5. Level the sand from right to left to ensure an even flame pattern. At this point the pan should be half full.
- Page 8 J. For Propane Gas Installation WARNING Fire Risk Explosion Risk Personal Injury Risk An explosion could occur if a connection is made directly to an unregulated propane (LP) tank. Pour vermiculite into each burner pan to the point where each pan is completely full. Level the vermiculite from right to left to ensure an even flame pattern.
- Page 9 L. Inspect the Venting System The fireplace venting system is designed and constructed to develop a positive flow adequate to remove flue gases to the outside atmosphere. See fireplace installation instructions. A spillage test must be made before the installed appliance is left with the consumer.
- Page 10 O. Fequently Asked Questions Can I close the glass doors on my fireplace when using my gas logs? No. The gas log sets are designed for use in fireplaces with all fireplace doors fully opened. Operating your log set with the doors closed will cause overheating, premature failure of valve systems, and will void the warranty of your log set.
-
Page 11: Pilot Burner Assembly
P. Lighting Instructions • Remote Ready Valve (REM) FOR YOUR SAFETY READ BEFORE LIGHTING FOR YOUR SAFETY READ BEFORE LIGHTING WARNING! IF THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. A. -
Page 12: For Your Safety Read Before Lighting
Q. Lighting Instructions Safety Pilot Valve (STANDING PILOT VALVE) • FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: IF THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. A. This appliance has a pilot that must be lighted by hand. When lighting the pilot, follow these instructions exactly. - Page 13 R. Lighting Instructions • IPI Pilot Valve (IPI) Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08...
- Page 14 S. GO24 Grand Oak Series Logs • Open the log box and remove the paper packaging and logs. • Inspect each log for breakage that may have occurred during shipping and handling. SRV736 SRV722 SRV724 SRV729 SRV727 Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08 SRV738 SRV737 SRV749...
- Page 15 T. GO24 Grand Oak Series Log Placement Instructions • Place logs EXACTLY as the following photos depict. Fire Risk Explosion Risk Personal Injury Risk Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.
- Page 16 U. GO30 Grand Oak Series Logs • Inspect each log for breakage that may have occurred during shipping and handling. SRV726 SRV721A SRV722 SRV724 SRV740 SRV727 Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08 Open the log box and remove the paper packaging and logs.
- Page 17 V. GO30 Grand Oak Series Log Placement Instructions • Place logs EXACTLY as the following photos depict. SRV721A SRV726 SRV722 SRV722 SRV724 SRV740 SRV743 Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08 Step 1 Step 2 Step 3...
- Page 18 • Open the log box and remove the paper packaging and logs. • Inspect each log for breakage that may have occurred during shipping and handling. SRV708 SRV816 SRV724 SRV707 Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08 SRV737 SRV716 SRV702...
- Page 19 X. GO35 Grand Oak Series Log Placement Instructions • Place logs EXACTLY as the following photos depict. SRV737 SRV708 SRV709 SRV728 SRV716 SRV816 SRV724 SRV808 SRV707 SRV702 SRV706 Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08...
- Page 20 • Open the log box and remove the paper packaging and logs. • Inspect each log for breakage that may have occurred during shipping and handling. SRV700 SRV721A SRV816 SRV724 SRV707 Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08 SRV721B SRV703 SRV702...
- Page 21 Z. GO40 Grand Oak Series Log Placement Instructions • Place logs EXACTLY as the following photos depict. SRV721A SRV721B SRV700 SRV701 SRV728 SRV816 SRV703 SRV724 SRV808 SRV702 SRV707 SRV706 Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08...
-
Page 22: Service Parts
Replacement Parts Grand Oak Gas Logs Service Parts Exploded Parts Diagram Beginning Manufacturing Date: N/A GO Gas Logs Ending Manufacturing Date: Active SP Valve Assembly GO24 & 30 IPI Valve Assembly GO24,30,35,40 IPI Valve Assembly Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08... - Page 23 Replacement Parts Con’t Grand Oak Gas Logs Service Parts Exploded Parts Diagram Beginning Manufacturing Date: N/A GO Gas Logs Ending Manufacturing Date: Active REM Valve Assembly GO24,30,35 & 40 Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08...
- Page 24 Description of Part Grate Assembly Burner Pan Assembly Burner Pan Assembly GO5 & GO40 Connector Bottom Burner Orifice NG Bottom Burner Orifice LP Top Burner Orifice NG Top Burner Orifice LP Pilot Booster (LP only) Valve Cover Pilot Assy NG (SP only) Pilot Assy LP Pilot Heat Pad Regulator NG (4.0)
- Page 25 Description of Part Battery Cover Log (IPI units only) (not shown) Sand (NG only) Vermiculite Lava Rock Rock Wool Damper Stop Assy Platinum Bright Embers Hearth & Home Technologies • Grand Oak Gas Log Sets • 4004-299 Rev H • 05/08 Grand Oak Gas Logs Service Parts Service Parts List...
- Page 26 Warranty DECORATIVE GAS LOG LIMITED WARRANTY Hearth & Home Technologies Inc. (HHT) extends the following warranty for decorative gas log sets as described herein, while it is in its loca- tion or original installation. Dealers and employees of HHT have no authority to make any warranty or authorize any remedies in addition to or inconsistent with the terms of this Program.
-
Page 27: Contact Information
Contact Information Please contact your Hearth & Home Technologies dealer with any questions or concerns. For the number of your nearest Hearth & Home Technologies dealer, please call -800-927-684 or -888-427-97. • Important operating a n d m a i n t e n a n c e instructions included.
