QV32E
QV32EV
Electric Fireplace
•
Important operating
a n d m a i n t e n a n c e
instructions included.
WARNING
If the information in these instruc-
tions is not followed exactly, a
fi re may result causing property
damage, personal injury, or death.
• Do not store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of
this or any other appliance.
• Comply with all minimum clearances to
combustibles as specifi ed. Failure to
comply may cause house fi re.
Quadra-Fire • Village Collection Electric Fireplace • 4030-240 Rev J • 04/05
Shown with door front.
Door front not shipped with heater.
CAUTION
DO NOT DISCARD THIS MANUAL
•
Read, understand
and follow these
instructions for safe
i n s t a l l a t i o n a n d
operation.
Owner's Manual
Installation and Operation
•
Leave this manual with
party responsible for
use and operation.
WARNING
HOT! DO NOT TOUCH.
SEVERE BURNS MAY RESULT.
CLOTHING IGNITION MAY RESULT.
Glass and other surfaces are hot
during operation and cool down.
•
Keep children away.
•
CAREFULLY SUPERVISE children in same room
as heater.
•
Alert children and adults to hazards of high
temperatures.
•
Keep clothing, furniture, draperies and other
combustibles away.
1
Advertisement
Table of Contents
Related Manuals for Hearth and Home Technologies QV32E
Summary of Contents for Hearth and Home Technologies QV32E

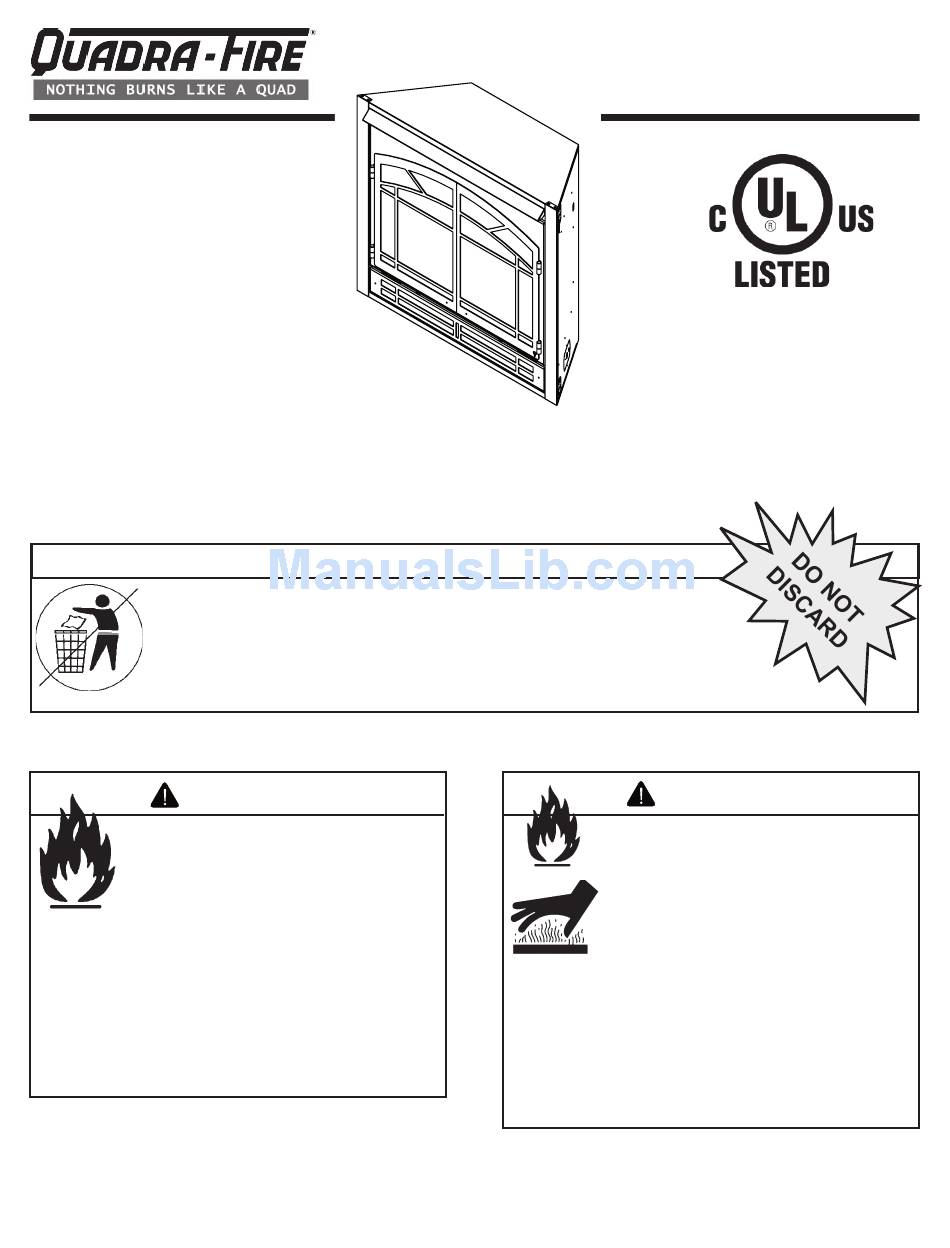

- Page 1 Owner’s Manual Installation and Operation Models: QV32E QV32EV Electric Fireplace Shown with door front. Door front not shipped with heater. CAUTION DO NOT DISCARD THIS MANUAL • Read, understand • Leave this manual with • Important operating and follow these...
