Bunn Axiom BrewWISE Series Installation & Operating Manual
  1. Manuals
  2. Brands
  3. Bunn Manuals
  4. Coffee Maker
  5. AXIOM BREWWISE Series
  6. Installation & operating manual

Bunn Axiom BrewWISE Series Installation & Operating Manual

Hide thumbs Also See for Axiom BrewWISE Series:
Table of Contents

Advertisement

Quick Links

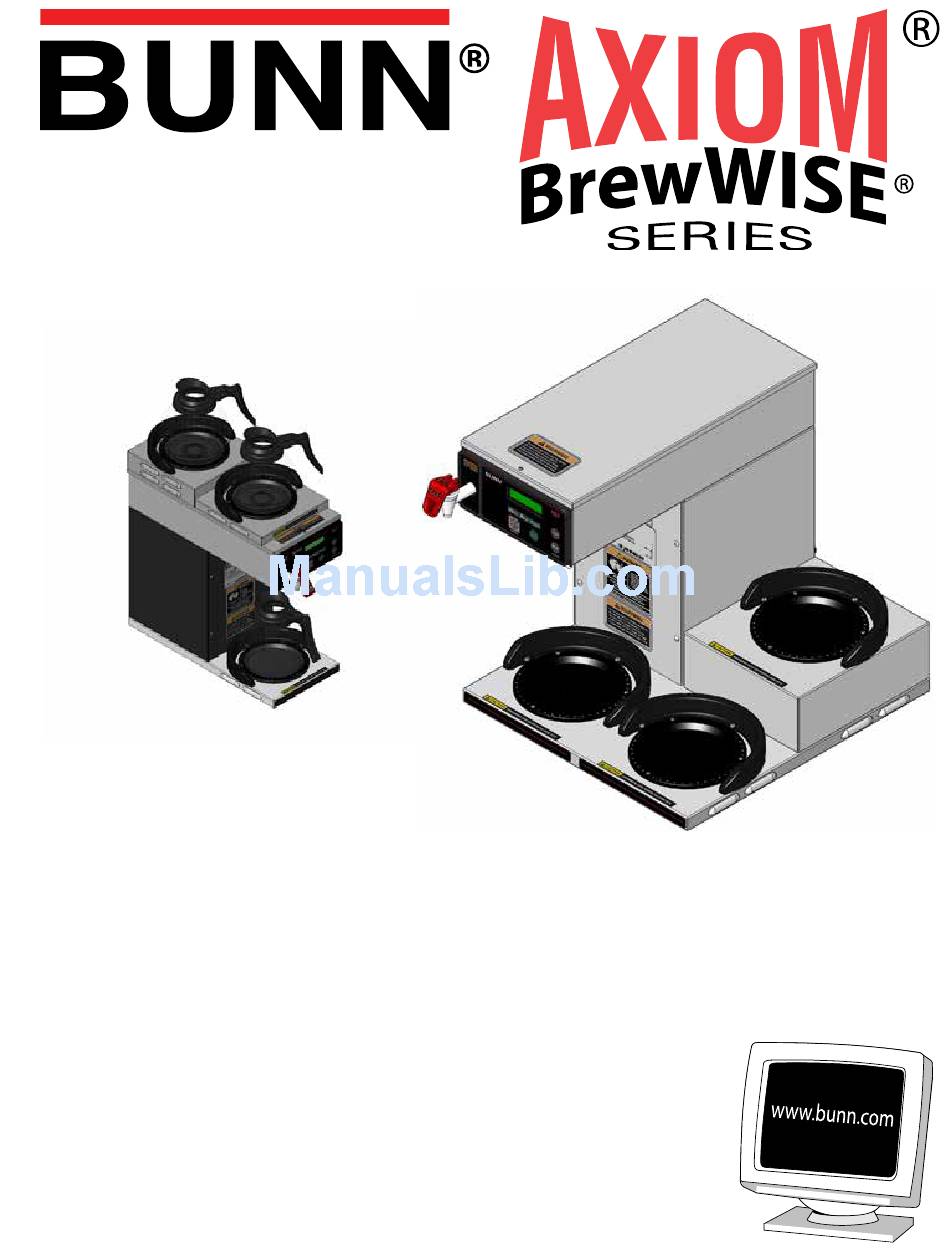

INSTALLATION & OPERATING GUIDE
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To ensure you have the latest revision of the Operating Manual, or to view the Illustrated Parts
Catalog, Programming Manual, or Service Manual, please visit the Bunn-O-Matic website, at
www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and
manual updates. For Technical Service, contact Bunn-O-Matic Corporation at 1-800-286-6070.
39130.0004B 03/13 ©2012 Bunn-O-Matic Corporation
