INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your local dealer with questions on installation, operation or service.
NOTICE: SAVE THESE INSTRUCTIONS
Model(s):

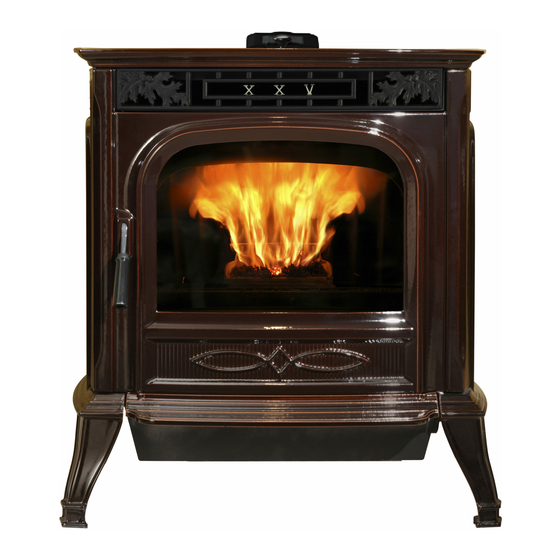

XXV-TC Freestanding Pellet Stove
XXV-TC
Use & Care Video
!
Tested and approved for wood pellet fuel only. Burning of
any other type of fuel voids your warranty.
!
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Contact local building or fire officials about restrictions
and installation inspection requirements in your area.
1
Owner's Manual
Care and Operation
CAUTION
CAUTION
Harman® • XXV-TC Owner's Manual_R5 • 2016 -___ • 02/17
Please read this entire manual before
installation and use of this pellet fuel-
burning room heater.
Failure to follow these instructions could
result in property damage, bodily injury
or even death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not overfire - If any external part starts to glow, you
are overfiring. Reduce feed rate. Overfiring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
WARNING
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled.
• NEVER allow children to touch glass.
• Keep children away.
• CAREFULLY SUPERVISE children in same room as
stove.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
NOTE
To obtain a French translation of this manual, please
contact your dealer or visit www.harmanstoves.com.
Pour obtenir une traduction française de ce manuel, s'il
vous plaît contacter votre revendeur ou visitez www.
harmanstoves.com
WARNING
3-90-00680c
Advertisement
Table of Contents
Related Manuals for Harman XXV-TC
Summary of Contents for Harman XXV-TC
-
Page 1: Care And Operation
Pour obtenir une traduction française de ce manuel, s’il national codes and regulations. vous plaît contacter votre revendeur ou visitez www. • Contact local building or fire officials about restrictions harmanstoves.com and installation inspection requirements in your area. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... - Page 2 Manufactured by / Fabriqué par: Hearth and Home Technologies 352 Mountain House Road, Halifax PA 17032 3-90-680026_R3 LABEL TICKET ECO: 82411 CLASS: PART # / REV: 3-90-680026_R3 ADHESIVE: Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c ORIGINATOR: Spidlet MATERIAL: .025” 24 Gauge Aluminum DATE: 12/16 INK:...
-
Page 3: Table Of Contents
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. • NOTICE: Used to address practices not related to personal injury. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 4: Appliance Certification / Specifications
Improper installation, adjustment, alteration, service or specifications and/or price without notice. maintenance can cause injury or property damage. For assistance or additional information, consult a qualified Harman is a registered trademark of Hearth & Home ® installer, service agency or your dealer. Technologies. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 5: Appliance Safety
CONTACT MAY CAUSE SKIN BURNS. ALTERED. IT IS AGAINST FEDERAL REGULATIONS TO ALTER THIS SETTING OR OTHERWISE OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 6: Helpful Hints
Exhaust being drawn back inside the dwelling - Outside air does not flow properly through the feed system. connection to the appliance is necessary. Vent leakage - All interior seams and joints should be sealed with silicone where applicable. Follow vent manufacturers instructions for proper sealing. CAUTION This appliance must be vented to the outside Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... - Page 7 IN THIS HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE HEATER, WHILE IN USE. WARNING Tested and approved for use with wood pellets ONLY. Burning of any other fuel will void your warranty. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c...
-
Page 8: Quick Start Guide
H. Quick Start Guide Initial start-up Only 1. Select Language. 2. Fill hopper with pellets. 3. Adjust arrows to set room desired temperature. 4. Touch the On/Off Power Icon. Refer to Touch Manual for all other operations. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 9: Frequently Asked Questions
The touch up paint provided with your unit is for fixing minor chips or blemishes that may occur after stove installation. Unfortunately, because the finish of your stove is baked on, this touch up paint may not be a perfect match to the color of the original finish. To use this touch up paint: Ensure the stove is cool and that the surface to be painted is clean. Apply in several light coats and take care to only coat the chipped area. Allow the paint to dry for 24 hours before touching or firing the stove. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 10: Cleaning Prompts, Messages And Errors
Touch Control has lost communication to the stove. Call your Harman Dealer. Exhaust Sensing Probe (ESP) as failed. Clean the ESP. If issue persists, call your Harman Dealer. Clean your stove. Call your Harman Dealer if problem persists. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 11: Maintenance And Service
Every 5 bags Glass When clear view of burnpot becomes obscure Hopper / Hopper Lid Gasket Every 50 bags of fuel or when changing fuel types Venting System More frequently depending on the fuel type Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 12: Burnpot Maintenance
Figure 2.3 Note: The hot lead/cold lead connection must always be pulled to the rear of the feeder body before Viewed from below through the ash pan opening. operation. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 13: Combustion Fan Chamber
Clean these areas with brush and vacuum ESP - Be careful n o t t o d a m a g e ESP probe when cleaning with brush. Figure 2.6 Figure 2.7 Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 14: Glass Maintenance
Set the glass panel and gasket gently onto the door. Install the hold down clips and tighten with bolts. Replace glass only with high temperature ceramic glass. Inspect door gasket during cleaning and inspection Glass Gasket Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 15: Reference Materials
Beginning Manufacturing Date: Sept 2016 Pellet Stove Ending Manufacturing Date: Active Active 1-90-680000-1 (Black) 1-90-680000-14 (Majolica Brown) 1-90-680000-20 (Dark Blue) 1-90-680000-21 (Frost) 1-90-680000-22 (Black Porcelain) Part number list on following page. 02/17 Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 16: Service Parts
10.8 Hinge Pin Plate w/Hardware 1 Set 1-00-777560 10.9 Complete Latch 2 Sets 1-00-0669697 10.10 Screw Post Kit 20 Sets 1-00-129004 Additional service part numbers appear on following page. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... - Page 17 Wiring Harness 3-20-08888 Black Paint 4-00-677056P 1-10-677056-14 Majolica Brown Porcelain Right Side 1-10-677056-20 Dark Blue Porcelain Frost Porcelain 1-10-677056-21 Black Porcelain 1-10-677056-22 Additional service part numbers appear on following page. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c...
- Page 18 Feeder Crossover Tube Kit 1-00-67900 32.11 Gasket, Snout Pkg of 10 3-44-677160-10 32.12 Air Intake 1-10-06810A 32.13 Gasket, Air Intake Pkg of 6 3-44-72224-6 Additional service part numbers appear on following page. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c...
- Page 19 Black Paint 4-00-674053A 4-00-674053-14A Majolica Brown Porcelain 20.1b Door Only W/Rope 4-00-674053-20A Dark Blue Porcelain Frost Porcelain 4-00-674053-21A Black Porcelain 4-00-674053-22A Additional service part numbers appear on following page. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c...
- Page 20 Return Air Sensor 3-20-08780 Silicone Tubing, 1/8” 5 Ft. 1-00-5113574 Black Paint 3-42-19905 1-00-0014 Majolica Brown Porcelain Touch Up Paint 1-00-0020 Dark Blue Porcelain Frost Porcelain 1-00-0021 Black Porcelain 1-00-0022 Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c...
-
Page 21: Limited Lifetime Warranty
HHT chimney and termination 1 year Burners, logs and refractory years Limited 3 years Firebox and heat exchanger Lifetime All replacement parts 90 Days beyond warranty period See conditions, exclusions, and limitations on next page. 4021-645F 02-18-13 Page 1 of 2 Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... - Page 22 HHT be liable for any incidental or consequential damages caused by defects in the appliance. Some states do not allow exclusions or limitation of incidental or consequential damages, so these limitations may not apply to you. This warranty gives you specific rights; you may also have other rights, which vary from state to state. EXCEPT TO THE EXTENT PROVIDED BY LAW, HHT MAKES NO EXPRESS WARRANTIES OTHER THAN THE WARRANTY SPECIFIED HEREIN. THE DURATION OF ANY IMPLIED WARRANTY IS LIMITED TO DURATION OF THE EXPRESSED WARRANTY SPECIFIED ABOVE. 4021-645F 02-18-13 Page 2 of 2 Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c...
-
Page 23: Loss Of Power Addendum
Main Menu. 3. Fill burn pot with pellets, only half way. (Do Not Over Fill). Contact your dealer if you have questions about UPS 4. Add firestarter to pellets following manufacturer’s compatibility with your appliance. instructions. 5. Light pellet firestarter with a match, and close the door, touch the On/Off icon on the home screen. Operation will begin when the fire reaches the proper temperature. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... -
Page 24: Troubleshooting
• Poor quality or damp pellets. • Combination of 1 and 2. Stove does not ignite but igniter is operating correctly • Burnpot has excess ash located around igniter and bracket. • Burpot grate holes are blocked or partially block. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c... - Page 25 Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c...
-
Page 26: Contact Information
Printed in U.S.A. Harman® • XXV-TC Owner’s Manual_R5 • 2016 -___ • 02/17 3-90-00680c...
