this appliance may be installed in an aftermarket, permanently located, manufactured home (usa only) or mobile home,
where not prohibited by local codes. this appliance is only for use with the type of gas indicated on the rating plate. this
appliance is not convertible for use with other gases, unless a certified kit is used.
Cet appareil peut être installé dans une maison préfabriquée (mobile) déjà installée à demure si les règlements locaux
le permettent. Cet appareil doit être utilisé uniquement avec le type de gaz indiqué sur la plaque signalétique. Cet ap-
pareil ne peut être converti à d'autres gaz, sauf si une trousse de conversion est utilisée.
WarninG: if the information in these instructions
are not followed exactly, a fire or explosion may
result causing property damage, personal injury or
loss of life.
installation and service must be performed by a quali-
fied installer, service agency, or the gas supplier. Do
not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appli-
ance.
installation & operating Manual

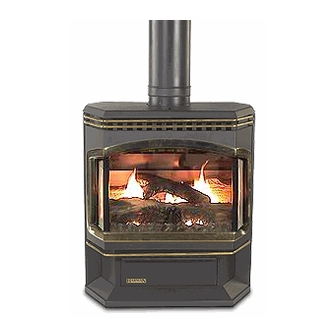

the harman clarity 929 Dv
Direct vent Gas stove
"Ce manuel est disponible en Français sur demande"
save these instructions.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's in-
structions.
• If you cannot reach your gas supplier, call the
fire department.
R10
#3-90-08290
Advertisement
Table of Contents
Related Manuals for Harman Clarity 929 DV
Summary of Contents for Harman Clarity 929 DV
- Page 1 & operating Manual the harman clarity 929 Dv Direct vent Gas stove “Ce manuel est disponible en Français sur demande” this appliance may be installed in an aftermarket, permanently located, manufactured home (usa only) or mobile home, where not prohibited by local codes. this appliance is only for use with the type of gas indicated on the rating plate. this appliance is not convertible for use with other gases, unless a certified kit is used.
-
Page 2: Table Of Contents
APPENDIX A: FUEL CONVERSION ...28 APPENDIX B: ALTITUDE DE-RATING ..29 WARRANTY..........30 this appliance is also approved for installation into a shop. tested by Manufactured by: intertek/Warnock hersey harman home heating 8431 Murphy Drive 352 Mountain house road Middleton, Wi 53562 halifax, Pa 17032... -
Page 3: Introduction
TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INjURY, OR EVEN DEATH. FOR USE IN THE U.S. AND CANADA. SUITABLE FOR INSTALLATION IN MOBILE HOMES IF THIS HARMAN STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. FOR YOUR SAFETY, FOL- LOW INSTALLATION DIRECTIONS. -
Page 4: Installation
INSTALLATION IMPORTANT NOTICE Due to high temperatures, the Clarity Direct Vent Gas Heater should be located out of traffic and away from furniture and draperies. 4" Children and adults should be alerted to the haz- ards of high surface temperatures and should stay away to avoid burns or clothing ignition. -
Page 5: Venting
• Unauthorized modification of the venting System. tion of the chart below: • installation of any venting component not manufactured restrictor plates, supplied by harman stove company, by an approved manufacturer. (Part no. G218) may be added in straight vertical instal- •... -
Page 6: Terminating The Venting
VENTING Requirements for terminating the venting WARNING: Venting terminals must not be recessed into a wall or siding. In addition, the following must be observed: Canadian Installations US Installations 12 inches (30 cm) 12 inches (30 cm) clearance above grade, veranda, porch, deck, or balcony 6 inches (15 cm) for appliance <... - Page 7 VENTING these Diagrams, along with the table, detail the restrictions on the vent terminal location. Vent cap regulations:...
-
Page 8: Approved Venting Parts
Wall strap 1281 snorkel termination (36”) 1282 snorkel termination (14”) 1284 Horizontal Square Termination 1280 vertical termination 1291 vertical termination, high Wind 1250 vinyl siding standoff 1222D (only available from harman) 8” x 5” to 6 ” x 4” adaptor... - Page 9 VENTING simpson dura-vent direct vent Gs selkirk direct-temp simpson dura-vent direct vent Gs stock no. description stock no. description 4DT-6 6” Pipe Length, Galvanized 908 6” Pipe Length, Galvanized 4DT-6B 6” Pipe Length, Black 908B 6” Pipe Length, Black 4DT-9 9” Pipe Length, Galvanized 907 9” Pipe Length, Galvanized 4DT-9B 9” Pipe Length, Black 907B 9” Pipe Length, Black 4DT-12 12” Pipe Length, Galvanized 906 12” Pipe Length, Galvanized 4DT-12B 12” Pipe Length, Black 906B 12” Pipe Length, Black...
- Page 10 VENTING seCURe vent diReCt vent system - ” x -/” and ” x ” Cross Reference List simpson dura-vent secure simpson dura-vent secure vent direct vent Gs direct vent Gs vent description stock no. Cat no. Cat no. stock no. Length 6” (Galvalume)......SV4L6 908 SV5L6...
- Page 11 VENTING Montigo Direct Vent standard series Direct vent (4"/ 7") Description Order Code HORIzONTAL TERMINATIONS 3" length, no mounting frame (use with Msr or Mosr) ....Mto3 3" termination, with integral mounting frame ........Mto3F VERTICAL TERMINATION termination for vertical installations ..........MvtK1 includes MXt-10 adaptor (for straight, vertical installations) termination touch-up Paint ............Paint03 VENT PIPES...
- Page 12 VENTING Montigo Direct Vent Standard Series Direct Vent (4"/ 7") description Order Code SNORkEL TERMINATIONS 18" vertical rise ................snK47-2 30" vertical rise ................snK47-3 HEAT GUARD Fits all standard series (4/7") terminations ........MtKoG HEAT SHIELDS Through-the-wall Radiation Shield for 4"/7" venting .......rhs100 Vinyl Siding Shield recommended for protecting vinyl siding ...
- Page 13 VENTING Montigo Direct Vent Premium Series Direct Vent (5"/8") Description Order Code HORIzONTAL TERMINATIONS 3" termination with no mounting frame (male connector)...... Pto3 (use with Msr or Mosr). 3" termination & mounting frame (male connector)......Pto3F VERTICAL TERMINATION termination for vertical installations (male connector) ......
- Page 14 VENTING Montigo Direct Vent Premium Series Direct Vent (5"/8") Description Order Code SNORkEL TERMINATIONS 18" vertical rise ..................snK58-2 30" vertical rise ..................snK58-3 INSULATED OFFSET BOX M38Dv-st offset box. used only on the M38Dv-st when a shelf or T.V. stand is required above the fireplace..........DVSTCNT HEAT GUARD Fits all Premium series (5"/8"...
-
Page 15: Assembly
Use only glass supplied the two-piece ember strips with a screen for over the front by Harman and approved for use with this heater. burner and some rock-wool and nuggets to give a more Do not use substitute materials. Replacement of realistic fire appearance. - Page 16 ASSEMBLY Install the Center Log the center log goes all the way to the back and should be centered. When properly positioned, there should be an even gap along the front of the center burner in the cavity in the log. a small portion of the log support frame will be revealed.
-
Page 17: Connecting To A Gas Supply
CONNECTING THE HEATER TO A GAS SUPPLY Burn Only the Fuel for which the Heater is Equipped the clarity Direct vent is built for use with Propane WARNING: This product must be installed by a li- but can be converted to burn natural Gas.the label on the censed plumber or gas fitter when installed within the burner system module indicates the fuel for which it is Commonwealth of Massachusetts. -
Page 18: Connecting The Cordset
CONNECTING THE HEATER TO CORDSET Connecting the Optional Thermostat Connecting the Cordset the clarity Direct vent Gas heater must be installed if the optional thermostat is used, it must be plugged in accordance with local codes or, in the absence of local into the terminal strip located in the left rear corner of the codes, with the most recent edition of the national electri- heater. -
Page 19: Air Shutter Adjustment
Consult a qualified service person If the flames do not resemble the description above and or your harman dealer for advice. the illustration in the right column, the air shutters may need to be adjusted. -
Page 20: Operation
OPERATION HOW TO LIGHT THE FIRE 1. stoP! read the safety information on the left side of fully counterclockwise for high and fully clockwise for the panel on page 21. Low. 2. if using the optional thermostat, set thermostat to the note: an odor resulting from the initial heating of new lowest setting. -
Page 21: Lighting Instructions
SAFETY/LIGHTING LABEL... -
Page 22: Maintenance
MAINTENANCE A qualified service person recommended by your Harman Cleaning the Log Set and Firebox dealer should conduct an annual inspection and maintenance During the annual inspection and maintenance appoint- of your clarity, its venting, and the installation to keep it ment, the service person should clean dust, lint, and any light running safely and efficiently. - Page 23 WIRING DIAGRAM Clarity Direct Vent Wiring Diagram The Clarity Direct Vent gas heater, when installed, must be electrically grounded in accordance with current local codes or, in the absence of local codes, with the current edition of National Electrical Code, ANSI/NFPA 70 in the United States or the current Canadian Electrical Code CSA 22.1 in Canada.
-
Page 24: Parts List & Drawing
PARTS LIST The following replacement parts for your Harman Clarity Direct Vent are available from your Harman dealer. Part No. Part 1-89-08250 DvG weldment 3-40-08715 Pilot, LP 3-44-08294 starting collar Gasket 3-40-08906 thermocouple 3-40-3849239 starting collar 3-40-08220 Piezo ignitor 3-40-08286 1/2”... - Page 25 PARTS...
- Page 26 CLARITY BURNER MODULE : EXPLODED VIEW...
-
Page 27: Specifications
SPECIFICATIONS Clarity direct vent dv Gas Heater tested to ansi Z21.88-2002, csa 2.33-M02, and can/cGa 2.17-M91. NATURAL GAS PROPANE input rating (Btu/hr) (0-4500 ft) (0-1375 m) 40,000 40,000 Min. input rating (Btu/hr) (0-4500 ft) (0-1375 m) 27,000 28,000 injectors (DMs) (front/middle/rear) (0-4500 ft) (0-1375 m) 45/56/39 56/71/53 Manifold Pressure (in w.c./kPa) -
Page 28: Appendix A: Fuel Conversion
APPENDIX A Converting the Clarity Direct Vent Step 3: Using a small flat-blade screwdriver, remove from One Gas to Another in the Field the three screws that hold the LP knob module in place. remove the module and replace it with the natural Gas NOTE: THE CONVERSION SHALL BE CAR- module from the kit. -
Page 29: Appendix B: Altitude De-Rating
3-40-57271 3-40-57356 30,100 * When ordering injectors that have no Harman part number, specify MALE or FEMALE and the appropriate 2 digit injector number. this appliance has been converted for use at an altitude of __________ft. Orifice Sizes: Front ________...
