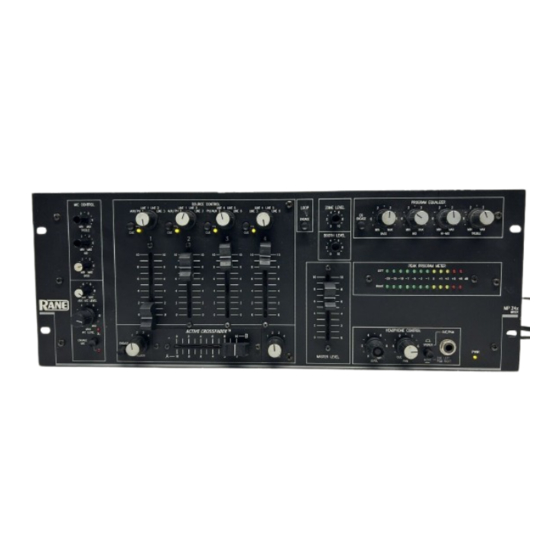

Rane MP 24X Operator's Manual

Rane MP 24X Operator's Manual

Dj mixer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
OPERATORS MANUAL
MP 24x
DJ MIXER
QUICK START
Don't! Quick-starting an MP 24x is like trying to quick-start a 747. It's just not something you do. Trust us, you don't
want to make mistakes with this sucker. So just this once—please—we highly recommend you read this entire manual:
front-to-back, every single page, every single word. It will familiarize you with the many intricacies of the MP 24x, not to
mention all the nooks and crannies.
Manual-1

Advertisement

loading

Related Manuals for Rane MP 24X

Summary of Contents for Rane MP 24X

  • Page 1 QUICK START Don't! Quick-starting an MP 24x is like trying to quick-start a 747. It's just not something you do. Trust us, you don’t want to make mistakes with this sucker. So just this once—please—we highly recommend you read this entire manual: front-to-back, every single page, every single word.

  • Page 2: Front Panel Description

    FRONT PANEL DESCRIPTION 1. POWER “ON” indicator: This yellow LED illuminates anytime the MP 24x is connected to an appropriate power source (see #28, Rear Panel). 2. SOURCE CONTROL selectors: These four position rotary switches provide Input selection between the various Phono and Line Inputs for their respective mixing Channels.
  • Page 3 With heavy use in harsh environments, the faders may The Crossfader may be removed from the front of the MP 24x without any disassembly of the unit itself, and may need lubrication. Rane recommends spraying one or two bursts of CaiLube MCL into the fader. Work the fader back be performed while the unit is operating with no interruption and forth a few times after spraying.

  • Page 4: Rear Panel Description

    5. MAXIMUM OUTPUT GAIN REDUCTION control: This rotary control decreases the maximum Level of the balanced and unbalanced MAIN OUTPUTS of the MP 24x as it is rotated CCW. 6. METER SENSITIVITY ADJUST: Clockwise rotation decreases the full-scale sensitivity of the PEAK PROGRAM METER, as indicated by the full-scale voltage calibrations around the control.
  • Page 5 28. POWER input connector: No, this is not where Commissioner Gordon plugs in his Bat-phone, in fact it is not a telephone jack at all. The MP 24x uses an 18 volt AC center-tapped transformer only. Use only a model RS 1, or other remote AC power supply approved by Rane.
  • Page 6 This is a good place to discuss the problems encountered line devices feeding the MP 24x is of the commercial variety in connecting the MP 24x to all of the different types of sporting balanced outputs, use Line 2 for this due to its cables and connectors that one finds when basing a system on unique ability to accept such foreign substances.

  • Page 7: Operating Instructions

    Channel 2 is heard once the far right is reached. Note that the sound pressure level does not change as this before they reach the Input of the MP 24x. If this is not transition is effected. This is a constant power Crossfader, possible, full system drive will not come from some compo- nents.

  • Page 8: Important Note

    Please refer to RaneNote “Sound System Interconnec- tion” (supplied with this manual and available on request at no charge separately) for further information on system grounding. ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL (425)355-6000 FAX (425)347-7757 WEB http://www.rane.com Manual-8...
