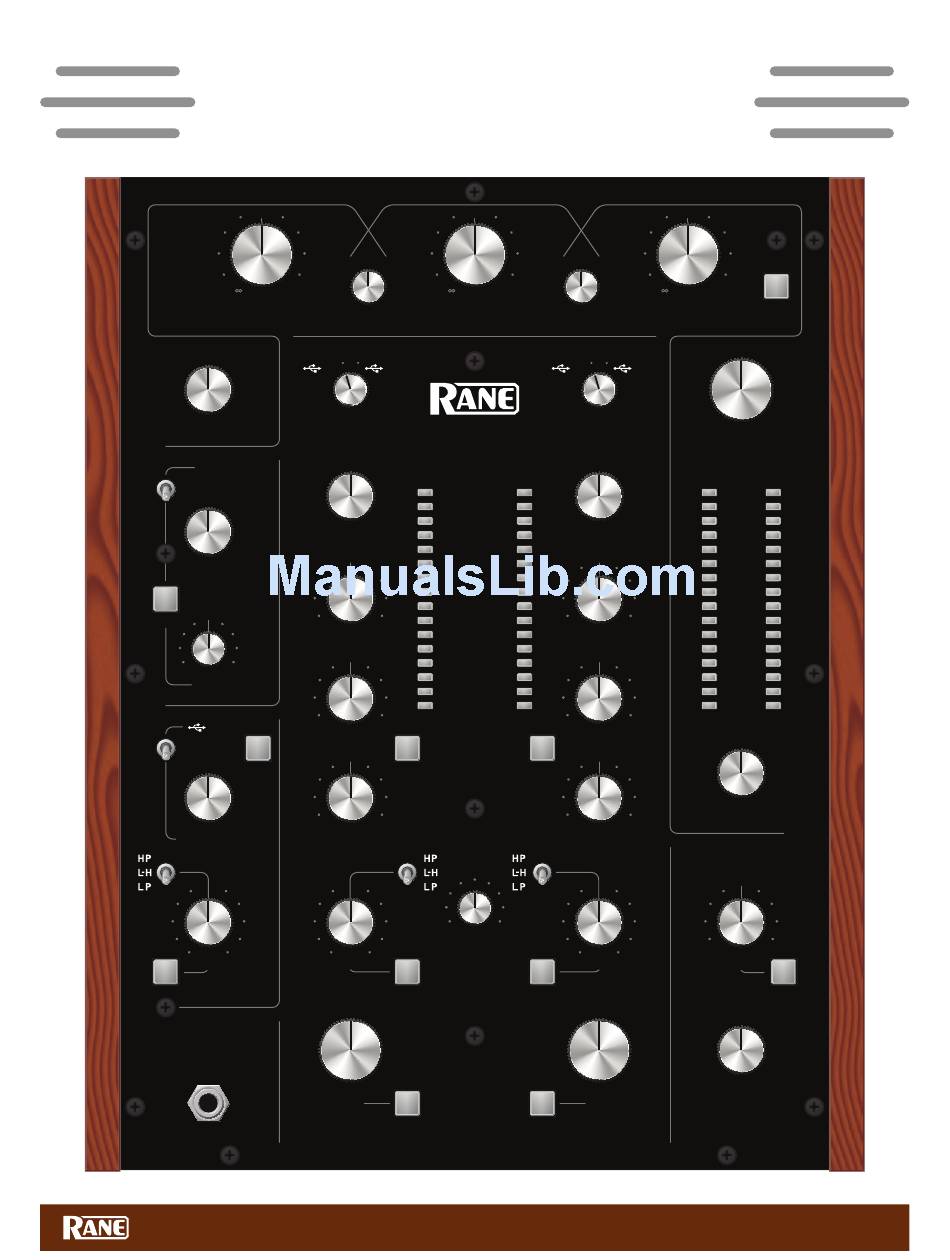

- Page 1 RANE MP2014 MIXER MANUAL 0 dB 0 dB 0 dB 2.8k 1.7k 4.75k ∞ ∞ ∞ HIGH 1.0k 8.0k CROSSOVER CROSSOVER PH/CD 1 AUX 1 PH/CD 2 AUX 2 SOURCE MP2014 SOURCE SESSION OUT MAIN DUCK LEFT RIGHT + 10...
-
Page 2: Important Safety Instructions
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by Rane Corporation could void the user's authority to operate the equipment. CAN ICES-3 (B)/NMB-3(B) - Page 3 • Connecter l'équipement à une sortie sur un circuit différent de celui sur lequel le récepteur est branché. • Consulter un revendeur ou un technicien radio / TV expérimenté. ATTENTION: Les changements ou modifications non expressément approuvés par Rane Corporation peuvent annuler l'autorité de l'utilisateur à manipuler cet équipement et rendre ainsi nulles toutes les conditions de garantie.
-
Page 4: Copyright Notices
• This MP2014 Mixer Manual. Wear Parts The MP2014 Mixer contains no wear parts. See "Limited Warranties" on page 23. This product is engineered, manufactured and supported by Rane Corporation in Mukilteo, WA, USA, using globally sourced materials. MP2014 MANUAL... -
Page 5: Table Of Contents
Contents 2 Important Safety Instructions 4 Copyright Notices 4 Check List 6 MP2014 Overview 8 Connections 9 Input Channels 10 Session Input 10 Session Output 10 Microphone Input 11 Main Mix Outputs 11 Headphone Cueing 12 USB Audio 13 DJ Changeover... -
Page 6: Mp2014 Overview

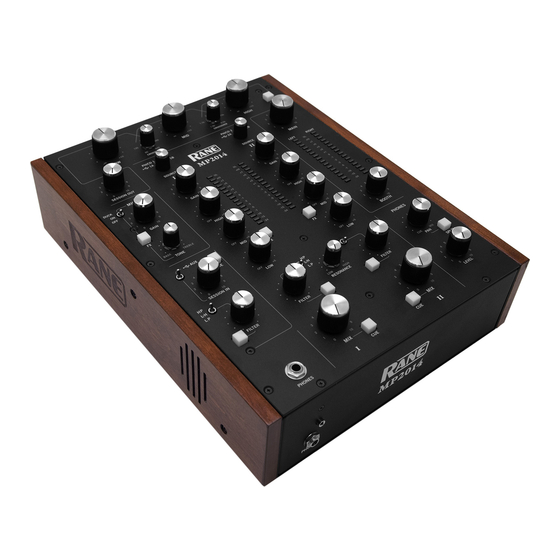

MP2014 Overview Highest quality user control surface • Excellent control ergonomics with intuitive and comfortable layout. • Potentiometers with exceptional feel and 1 million cycle life. • Studio console grade backlit push switches. Digital Signal Processing • A/D and D/A dynamic range 116 dB A-weighted, THD+N 0.001%. - Page 7 PH/CD 2 AUX 2 MP2014 SOURCE SOURCE SESSION OUT MAIN DUCK LEFT RIGHT + 10 + 10 + 10 GAIN GAIN GAIN HIGH HIGH BASS TREBLE TONE BOOTH SESSION IN PHONES MAIN SPLIT NORM HIGH RESONANCE FILTER FILTER FILTER LEVEL PHONES MP2014 MANUAL...
-
Page 8: Connections
Power Supply The MP2014 Mixer features an internal universal switching power supply that operates on any AC mains 100 to 240 VAC, 50 or 60 Hz (most places in the world). All that is required for the traveling DJ is the appropriate IEC line cord, available from a local electronics store. -
Page 9: Input Channels
USB Port B. only to/from USB Port B. PH/CD 1 AUX 1 To share the MP2014 with a second computer, see "DJ Changeover" on page 13. Deck Source Selection is followed by: SOURCE • GAIN trim: Off to +15 dB with unity gain (equal in and out) at 12 o’clock. -
Page 10: Session Input
Session In RCA white and red jacks. The orange S/PDIF input connects a digital device (e.g., a CDJ 2000 or another MP2014 or MP2015 mixer) using a single coax RCA cable. The switch above the jacks selects the orange S/PDIF input or the red/white line-level inputs as a source. Alternatively, USB Aux audio channels 5/6 can be the Session input source by flipping the toggle switch up next to the Session In level control. -
Page 11: Main Mix Outputs
• Headphones output is available on two 1/4" jacks, one on the front and one on the top. An LEVEL additional 3.5 mm jack is located on the front. All share the same signal. • The Control Panel allows Bass and Treble adjustment in headphones. See "Control Panel" on page 14. MP2014 MANUAL... -
Page 12: Usb Audio
In USB audio In USB audio record slots record slots record slots record slots record slots record slots record slots 1-2. 3-4. 5-6. 7-8. 9-10. 11-12. 13-14. Use "Pre" with DVS software. Use "Post" for multi-track recording (uses Mix controls). MP2014 MANUAL... -
Page 13: Dj Changeover
The DJ Changeover Walkthrough In the scenario below, one DJ, let’s call him DJ A, is already connected to the MP2014 using either USB port A or B. With DJ A’s computer already connected and playing music, do the following: 1. -
Page 14: Class Compliant Usb Ports
If the same playback channel is selected in more than one application, the driver mixes the audio from the applications before streaming it to the device. ASIO driver and Rane Control Panel system requires Windows 7-SP1, 8.1, or 10. The driver Control Panel may be launched from the Windows Control Panel. - Page 15 Port MIDI Enable enables MIDI commands to/from the MP2014 Mixer controls at the current USB Port. Default is Off. Port MIDI Channel assigns MIDI channel 1-16 to the MP2014 Mixer at the current USB Port. Default is MIDI channel 1.
-
Page 16: Midi Mapping
PH/CD 1 AUX 1 PH/CD 2 AUX 2 SOURCE MP2014 SOURCE SESSION OUT MAIN DUCK LEFT RIGHT + 10 GAIN GAIN GAIN HIGH HIGH BASS TREBLE TONE BOOTH SESSION IN PHONES HIGH RESONANCE FILTER FILTER FILTER SPLIT LEVEL PHONES MP2014 MANUAL... - Page 17 AUX 1 PH/CD 1 LINE Control Panel MIDI Controls Control change numbers for items in the mixer menus are shared with corresponding controls in the driver control panel. 82 80 79 84 83 Port A: 90 Port B: 92 MP2014 MANUAL...
-
Page 18: Midi Implementation
Session In LP/HP Filter 0-127 (0x00-0x7F) Session In USB Aux Mode Switch 0 (0x00)=SESSION IN, 1 (0x01)=USB AUX IN Session In Mode Switch 0 (0x00)=LINE, 1 (0x01)=S/PDIF Session In Filter Type Switch 0-42 (HP), 43-85 (LP), 86-127 (LP/HP) MP2014 MANUAL... - Page 19 00-2A (S/PDIF), 2B-55 (Phono), 56-7F (CD) User MIDI Controls Enable Port A 0-7F 0x00 Port A User MIDI Controls Disabled, 0x01-0x7F Enabled User MIDI Controls Enable Port B 0-7F 0x00 Port B User MIDI Controls Disabled, 0x01-0x7F Enabled MP2014 MANUAL...
-
Page 20: Technical Specifications
14˝ H x 11˝ W x 4.31˝ D (with knobs) 10.95 cm (4.31”) ..Weight: 4.7 kg 10.4 lb Shipping Size: 19.7 cm x 38.1 cm x 49 cm 7.75˝ H x 15˝ W x 19.25˝ D ..Weight: 6.4 kg 14 lb 27.94 cm (11.0”) MP2014 MANUAL... -
Page 21: Ears / Battle Bridges
1. Remove the wood sides to attach the Ears. 2. Without the wood sides, the MP2014 Mixer is 10" wide (25.4 cm). The cavity needs to be 1/4" (6 mm) wider than this on each side to accomodate the mixer. -
Page 22: Declaration Of Conformity
The user of this equipment shall accept full responsibility for compliance with the LV directive and the EMC directive in the event that the equipment is modified without written consent of the manufacturer. This declaration of conformity is issued under the sole responsibility of Rane Corporation. Type of Equipment: Professional Audio Signal Processing... -
Page 23: Limited Warranties
1) arising out of material or workmanship not provided or furnished by Rane, or 2) resulting from abnormal use of the product or use in violation of instructions, or 3) in products repaired or serviced by other than the Rane Factory, or 4) in products with removed or defaced serial numbers, or 5) in components or parts or products expressly warranted by another manufacturer. - Page 24 . Fill out the warranty completely, being sure to include the model and serial number of the unit since this is how warranties are tracked. If your Rane product was purchased in the U.S.A., mail the completed card or register online with If you purchased the product outside the U.S.A.
Need help?
