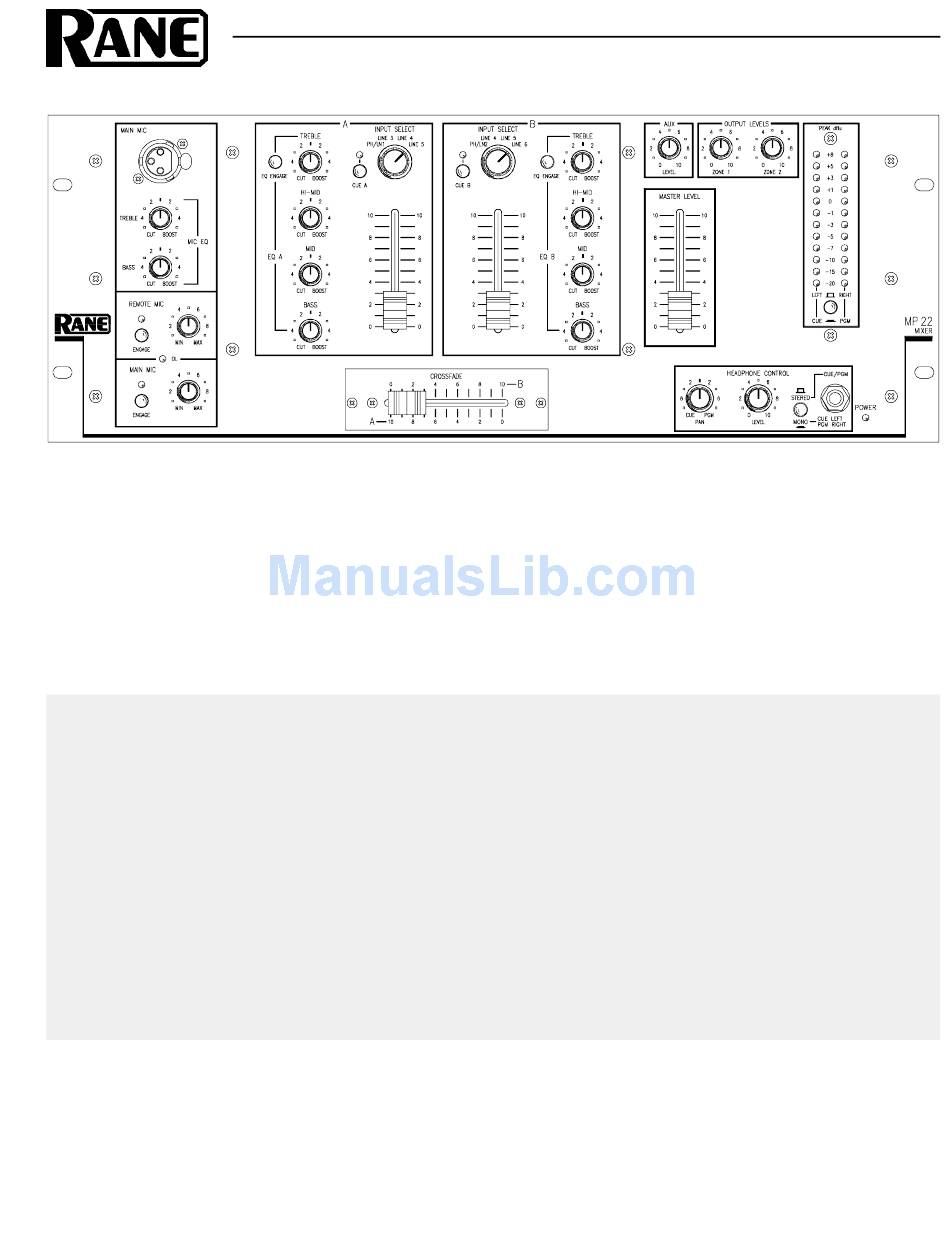

OPERATORS MANUAL

QUICK START

If you won't read the manual (we know how it is) here are a few basic "plug it in and get signal thru it" facts. The MP
22 has all unbalanced RCA connectors, except for the XLR & ¼" Mic Inputs, and ¼" Mic Loop. Be sure your amplifier is
off while making connections. On the front panel, set all controls to the middle of their travel. Set all pushbuttons to their
out position, slide the MASTER LEVEL all the way down. Turn the INPUT SELECT switch for Channel A or B to an
Input with material playing. Turn your amplifier on. Now slowly turn up the MASTER LEVEL and see the material on the
meters and hear it from the MASTER OUTPUT jacks.
There are two places where you can get lost. If you bring a phono signal into PH/LN 1 or 2 be sure to keep the LINE/
PHONO switch set to PHONO; likewise when using a CD player be sure this switch is set to LINE. If you plug into the
MASTER LOOP RETURN the signal path thru the unit is broken, since these are switching jacks. They are looking for
the return from an outside device that got its signal from the MASTER LOOP SEND, so only use these when you can
make a complete loop. Now that was a pretty quick start, right?
Never connect anything except a Rane RS 1 to the thing that looks like a red telephone jack on the rear of the MP 22.
This is an AC supply and requires some special attention if you do not have an operational power supply exactly like the
one that came with your unit. Consult the Rane factory for a replacement or substitution.

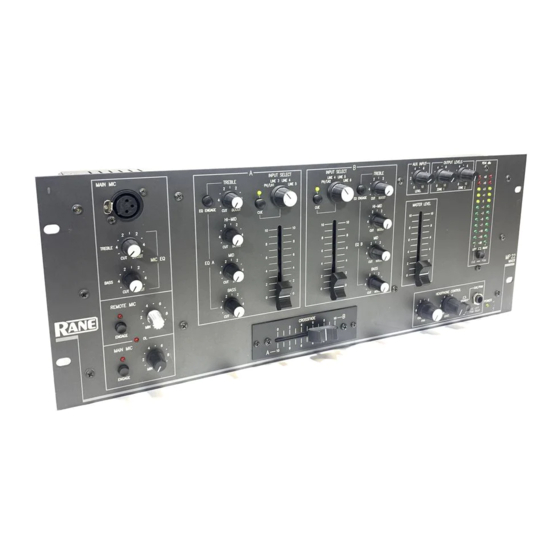

MP 22
DJ MIXER
Manual-1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP 22 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rane MP 22

Summary of Contents for Rane MP 22

  • Page 1: Quick Start

    Now that was a pretty quick start, right? Never connect anything except a Rane RS 1 to the thing that looks like a red telephone jack on the rear of the MP 22. This is an AC supply and requires some special attention if you do not have an operational power supply exactly like the one that came with your unit.

  • Page 2: Front Panel Description

    FRONT PANEL DESCRIPTION 1. Front panel MAIN MIC input: Use this three pin connector for connecting a balanced microphone of any impedance. 2. MIC EQ controls: These two controls adjust the frequency contour of both Microphone Inputs. They have no effect on any other Inputs.
  • Page 3 MONO CUE to the Left ear and MONO ProGraM to the Right ear. 22. HEADPHONE Output jack: A ¼" tip-ring-sleeve stereo jack provides for the insertion of stereo headphones. 23. POWER “ON” indicator: This yellow LED illuminates anytime the MP 22 is connected to an appropriate power source (see #14, rear panel).

  • Page 4: Rear Panel Description

    14. POWER input connector: This is not a telephone jack! Connect an 18 volt AC center-tapped transformer only. Use only a Rane model RS 1, shipped with the unit, or other RS 1 compatible power supply approved by Rane. Manual-4...
  • Page 5 If you are connecting balanced devices (3 conductor) to before the MASTER and ZONE LEVEL controls. either the Input or Output of the MP 22, consult the included The MAIN MIC Input on the front panel allows use of a RaneNote “Sound System Interconnection”...

  • Page 6: Operating Instructions

    PAN control. The overall volume is then controlled by the HEADPHONE LEVEL control. ©Rane Corporation 10802 47th Ave. W., Mukilteo WA 98275-5098 TEL (425)355-6000 FAX (425)347-7757 WEB http://www.rane.com All features & specifications subject to change without notice. SEP96...
